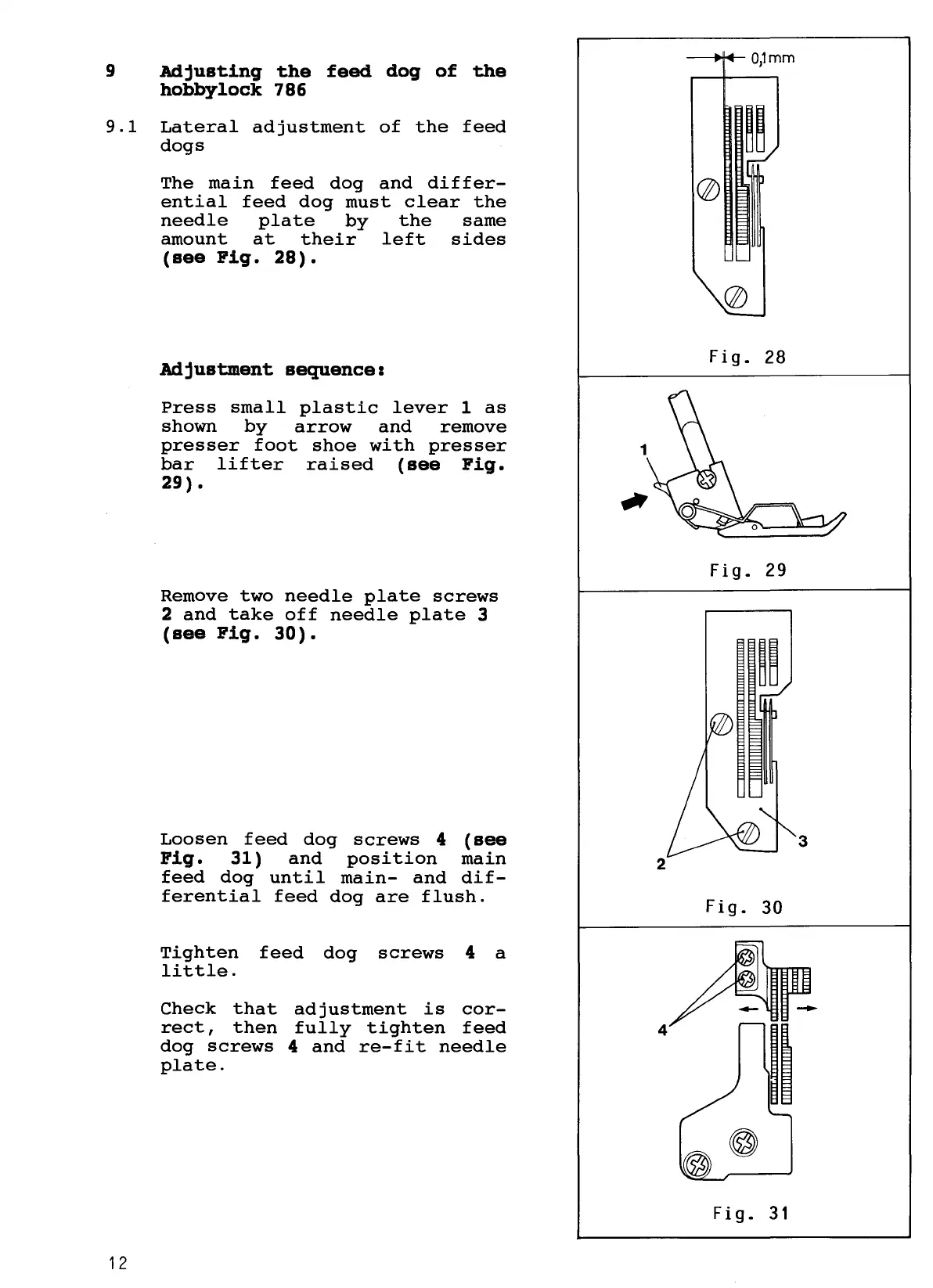

9 Adjusting the feed dog of the
hobbylock 786
9.1 Lateral adjustment of the feed
dogs
1 2
The main feed dog and differ-
ential feed dog must clear the
needle plate by the same
amount at their left sides
(see Fig. 28).
Adjustment sequence:
Press small plastic lever 1 as
shown by arrow and remove
presser foot shoe with presser
bar lifter raised (see Fig.
29) .
Remove two needle plate screws
2 and take off needle plate 3
(see Fig. 30).
Loosen feed dog screws 4 (see
Fig. 31) and position main
feed dog until main- and dif-
ferential feed dog are flush.
Tighten feed dog screws 4 a
little.
Check that adjustment is cor-
rect, then fully tighten feed
dog screws 4 and re-fit needle
plate.
2
4
-~-O,1mm
Fig. 28
Fig. 29
3
Fig. 30
Fig. 31
