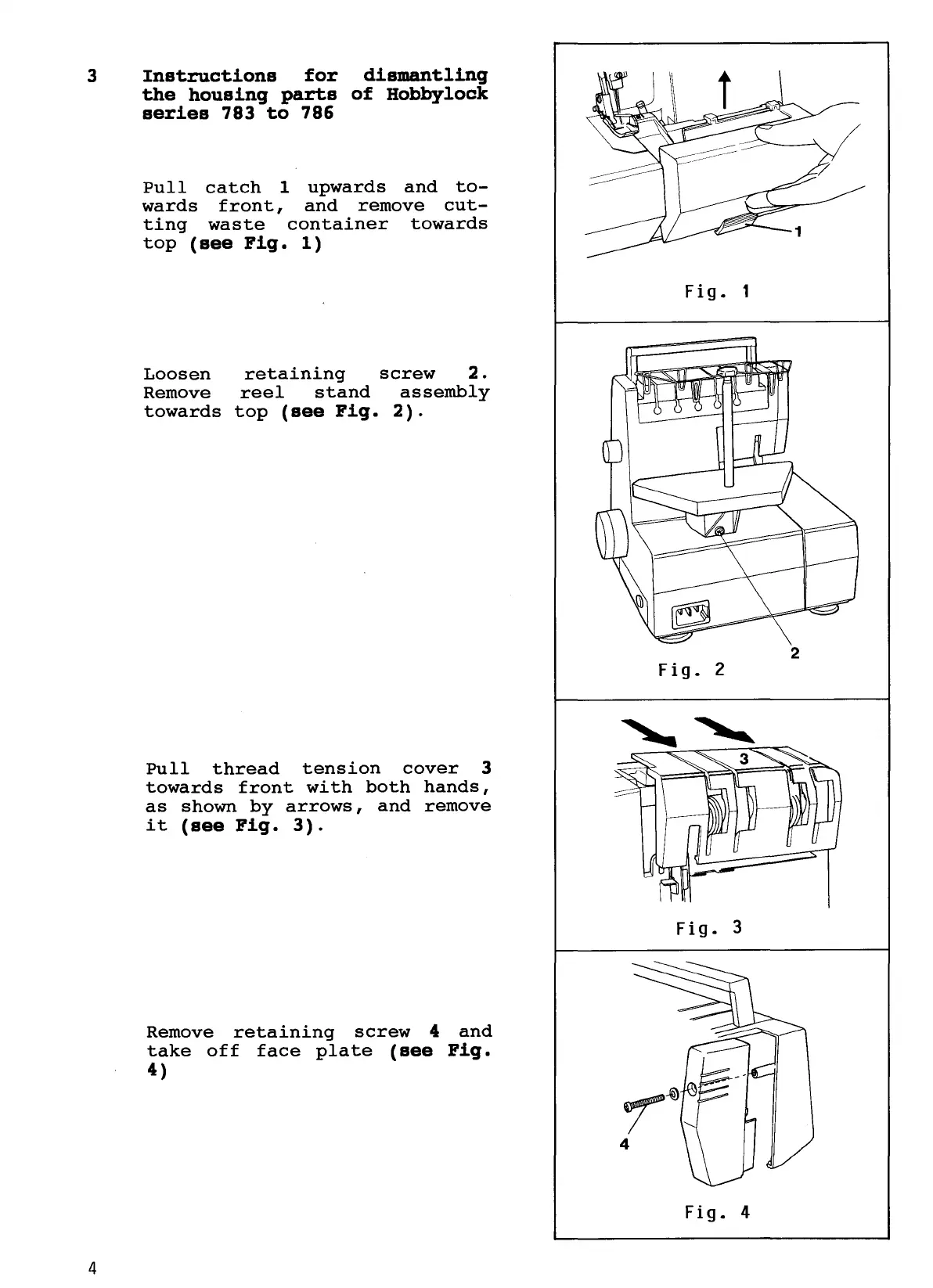

Pfaff hobbylock 783 - Instructions for Dismantling the Housing Parts of Hobbylock Series 783 to 786

3 Instructions for dismantling
the housing parts of Hobbylock
series 783 to 786
4
Pull catch 1 upwards and to-
wards front, and remove cut-
ting waste container towards
top (see Fig. 1)
Loosen retaining screw 2.
Remove reel stand assembly
towards top (see Fig. 2).
Pull thread tension cover 3
towards front with both hands,
as shown by arrows, and remove
it (see Fig. 3).
Remove retaining screw 4 and
take off face plate (see Fig.
4)
Fig. 1
2
Fig. 2
Fig. 3
Fig. 4
