Pfaff hobbylock 783 - Adjusting the Needle Guard

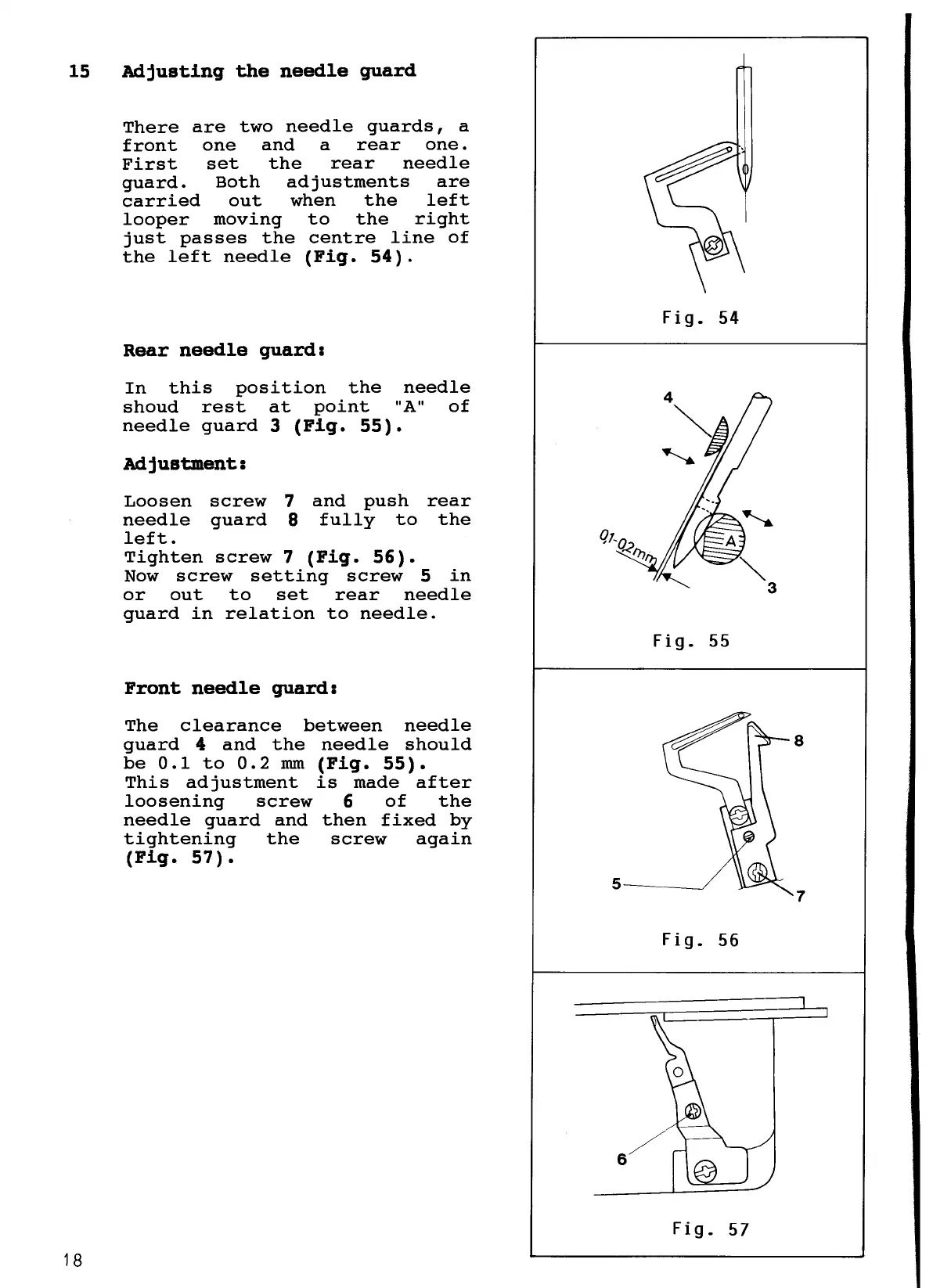

15 Adjustinq the needle quard
18
There are two needle guards, a
front one and a rear one.
First set the rear needle
guard. Both adjustments are
carried out when the left
looper moving to the right
just passes the centre line of
the left needle (Fiq. 54).
Rear needle quard:
In this position the needle
shoud rest at point "A" of
needle guard 3 (Fiq. 55).
Adjustment:
Loosen screw 7 and push rear
needle guard 8 fully to the
left.
Tighten screw 7 (Fiq. 56).
Now screw setting screw 5 in
or out to set rear needle
guard in relation to needle.
Front needle quard:
The clearance between needle
guard 4 and the needle should
be 0.1 to 0.2 rom (Fiq. 55).
This adjustment is made after
loosening screw 6 of the
needle guard and then fixed by
tightening the screw again
(Fiq. 57).
Fig. 54
Fig. 55
8
7
Fig. 56
Fig. 57
