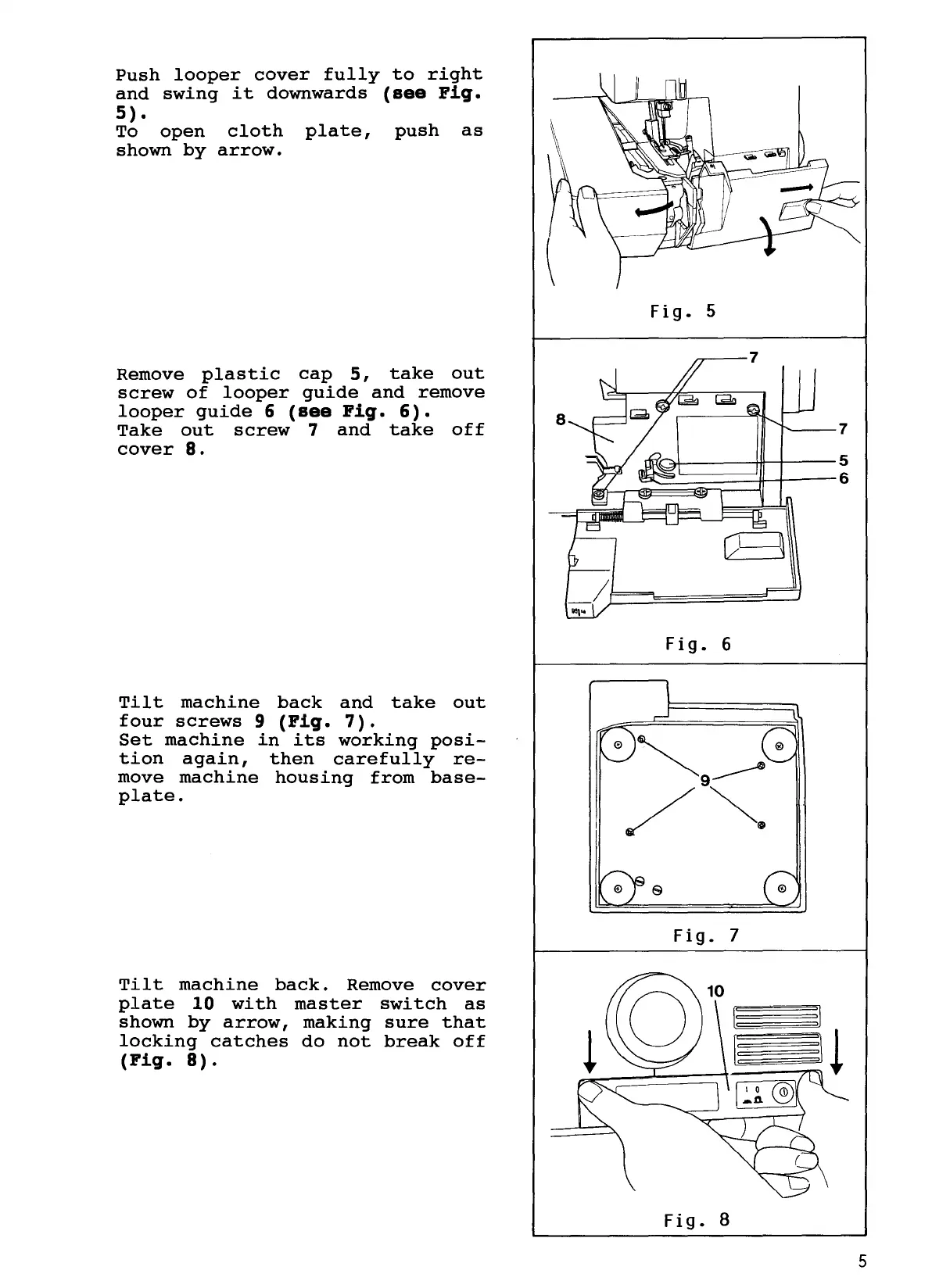

Push looper cover fully to right
and swing it downwards (see Fig.
S) •
To open cloth plate, push as
shown by arrow.
Remove plastic cap S, take out
screw of looper guide and remove
looper guide 6 (see Fig. 6).
Take out screw 7 and take off
cover 8.
Tilt machine back and take out
four screws 9 (Fig. 7).
Set machine in its working posi-
tion again, then carefully re-
move machine housing from base-
plate.
Tilt machine back. Remove cover
plate 10 with master switch as
shown by arrow, making sure that
locking catches do not break off
(Fig. 8).
"I~
Fig. 5
1'---7
~(~-----~-r----5
(;{,-~~===tt---6
Fig. 6
Fig. 7
Fig. 8
5
