Pfeiffer DUO 3 - Dimensions; 1 Standard Version; Tbl. 16: Technical Data, Duo 3 MC; Fig. 18: Dimensions Duo

Type designation Duo 3 MC
Rotation speed at 50 Hz 3000 rpm
Rotation speed at 60 Hz 3600 rpm
Rated power 50 Hz 0.15 kW
Rated power 60 Hz 0.18 kW
Recommended on-site electric fuse protection 6 / 4 A
Mains cable No, C14-plug inside the terminal box
Cooling method Air (Forced convection)
Continuous gas input temperature, max. 40 °C
Ambient temperature 12 – 40 °C
Shipping and storage temperature -25 – 55 °C
Protection degree IP40
Operating fluid F4
Operating fluid amount 0.4 l
Weight 12.7 kg
Certification CE, cTUVus certified according to UL /
CSA 61010-1
Tbl. 16: Technical data, Duo 3 MC
14.4 Dimensions
14.4.1 Standard version
122.7
319
2+
1
7
2
`
1
129
`1
2x DN 16 ISO-KF
1
9
9
1
+
32.5
32
61
88
309
2
+
85.2
70
2
2
2
5
+
190
95
123
`1

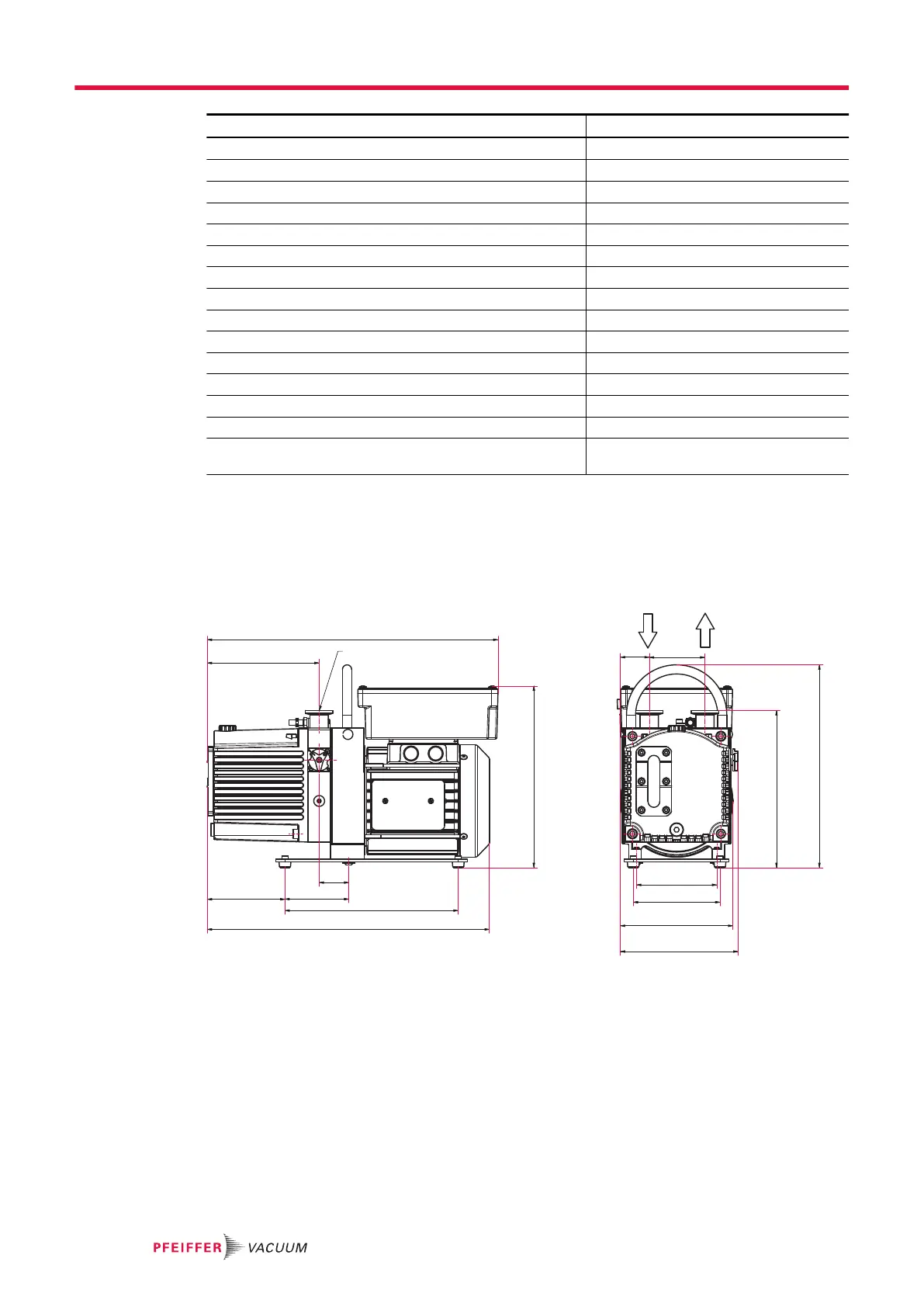

Fig. 18: Dimensions Duo 3
Dimensions in mm
Technical data and dimensions
60/64
