1.3.2 Pictographs
Pictographs used in the document indicate useful information.
Note
Tip

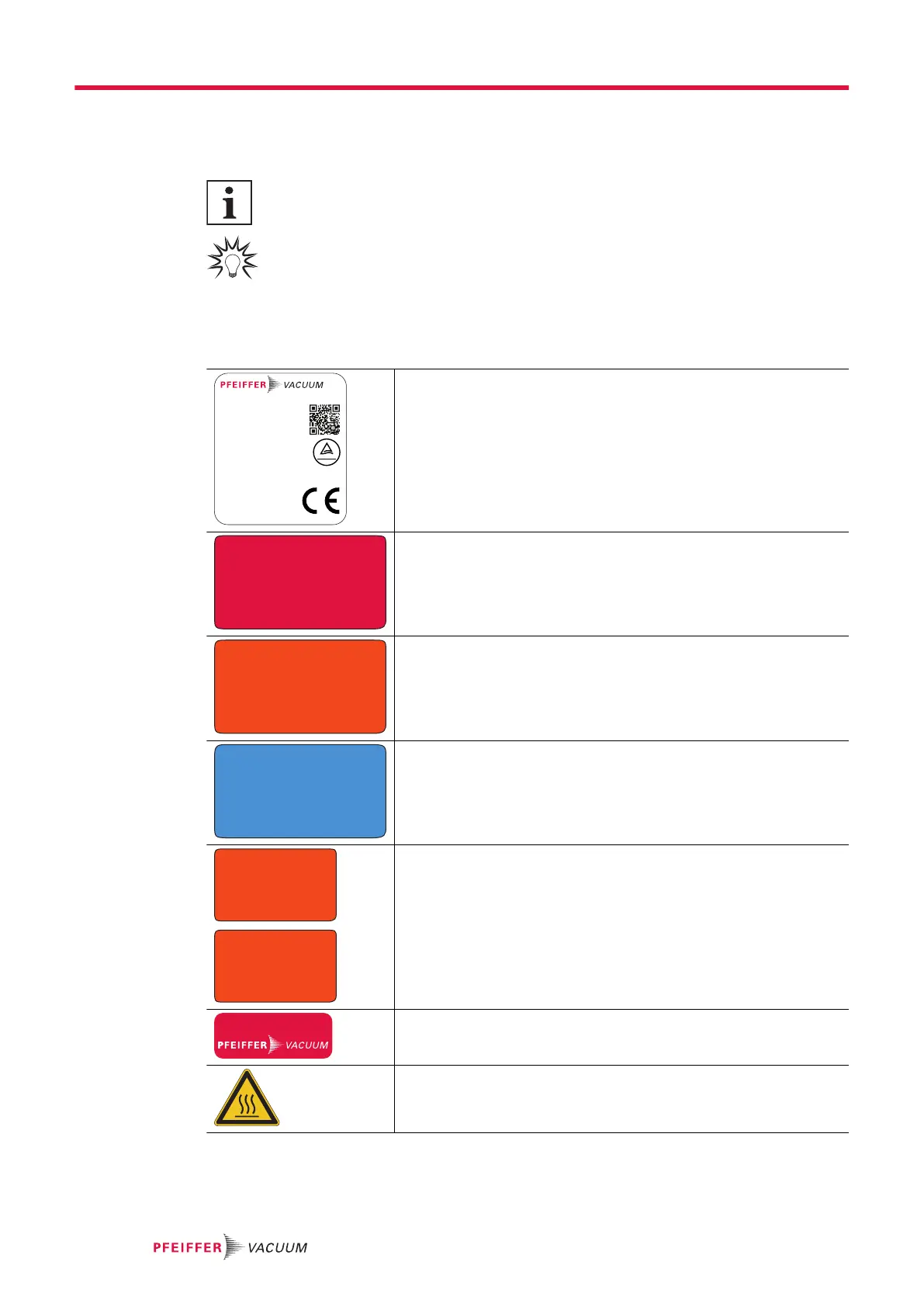

1.3.3 Stickers on product
This section describes all the stickers on the product along with their meanings.
D-35614 Asslar
Mod.
P/N
S/N
Duo 3
PK D57x ...
xxxxxxxxx
Made in Germany 2023/05
Oil
S (N )
n
Mass
2
P3 0.4 l
max. xxx.x m /h
max. 3600 1/min
xx.x kg
3
C US
TÜV Rheinland
Rating plate (example)
Rating plate of the rotary vane vacuum pump
Motor rating plate (not shown)
Vor Inbetriebnahme Pumpe mit Öl
füllen
Fill the pump with oil before putting
into operation
Remplir la pompe d’huile avant la mise
en route
Sticker (red)
Fill with operating fluid before commissioning
Achtung!
nur mit F4 befüllen
Attention!
only F4 to be used
Sticker (orange) – special operating fluid only
Caution: fill with F4 only
Achtung!
nur mit D2 befüllen
Attention!
only D2 to be used
Sticker (blue) – special operating fluid only
Caution: fill with D2 only
preset for
eingestellt auf
200-230 V / 50 Hz
200-240 V / 60 Hz
preset for
eingestellt auf
100-110 V / 50 Hz
100-120 V / 60 Hz
Sticker for pre-set motor voltage
Pre-set voltage (230 V or 115 V) of single-phase motor
warranty seal
Warranty seal
The product is sealed ex factory. Damaging or removing a warranty
seal results in loss of the warranty.
Warning hot surface
This sticker warns of injuries caused by high temperatures as a result
of contact without protection during operation.
Tbl. 1: Stickers on product
