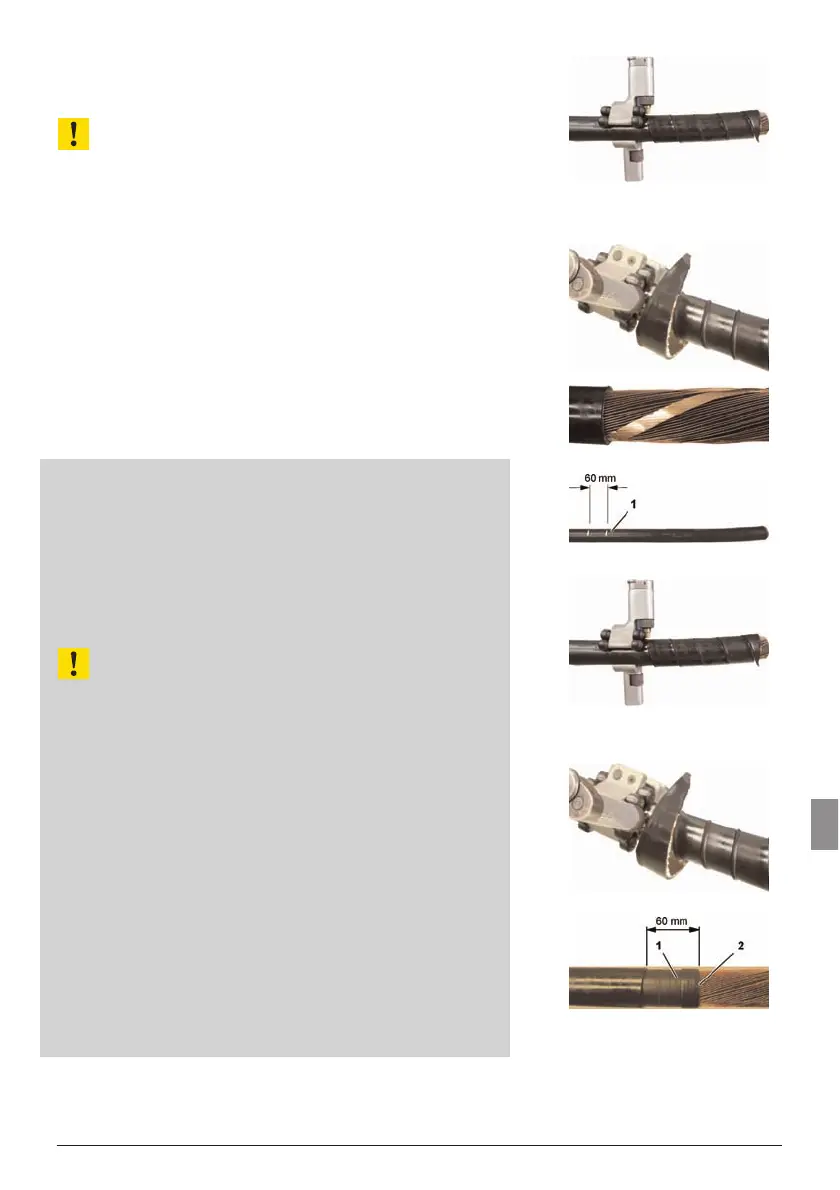

PFISTERER CONNEX cable connector Size 3 and 3/S Assembly / Installation 17
2. Remove outer jacket up to the “cut mark“ using
a suitable tool. [
➔ Seite 14]
ATTENTION!
Do not damage the underlying screen wires.
3. Unwrap outer jacket starting at the cut mark.
Cables with outside diameter > 58 mm:
a) 60 mm Make another mark 60 mm from the
“cut mark“ (1).
b) Remove outer jacket up to 60 mm above the
“cut mark“ using a suitable tool. [
➔ Seite 14]
ATTENTION!
Do not damage the underlying screen wires.
c) Unwrap outer jacket starting at the cut mark
+ 60 mm.
d) Apply two layers of insulation tape 60 mm wide (1).
The insulation tape wrapping ends at the
“cut mark“ (2).
e) Continue with step No. 4.
