30 Dismantling / Removal PFISTERER CONNEX cable connector Size 3 and 3/S

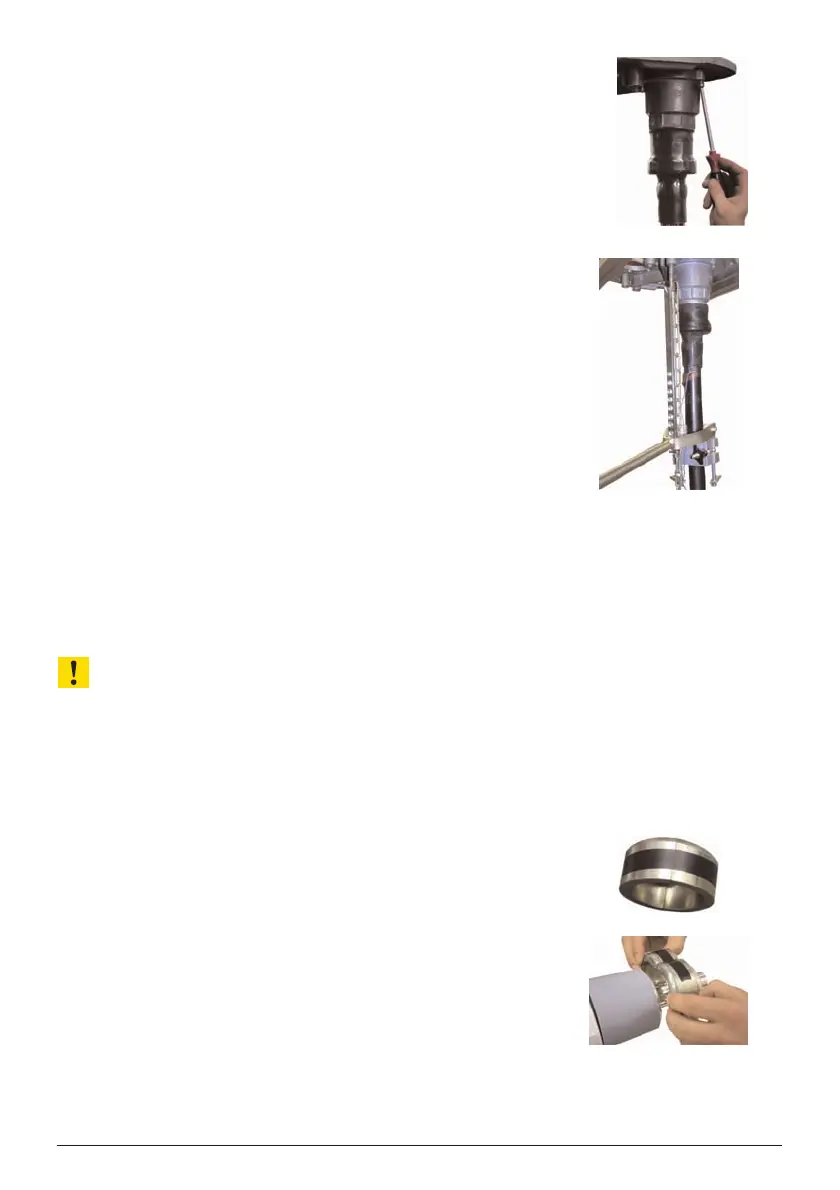

2. Loosen Torx screws all around with SW6 screw-
driver.
3. If M12 threaded connection exists for system:
a) Hook assembly lever in punched strip.
b) Apply assembly lever at clamp.
4. Pull CONNEX connector out of device connector.
5. If used:
a) Remove clamp
b) Unhook the assembly lever
c) Unhook punched strip
d) Unscrew the chain
6. Remove shrink tubing.
ATTENTION!
The screen wires located under the shrink tubing and
the test lead must not be damaged.
7. Assemble the two halves of the pulling-off device
and fix with adhesive tape at one point.
8. Position pulling-off device over contact ring with
rounded side facing the insulating part …
