9. ... Press together.

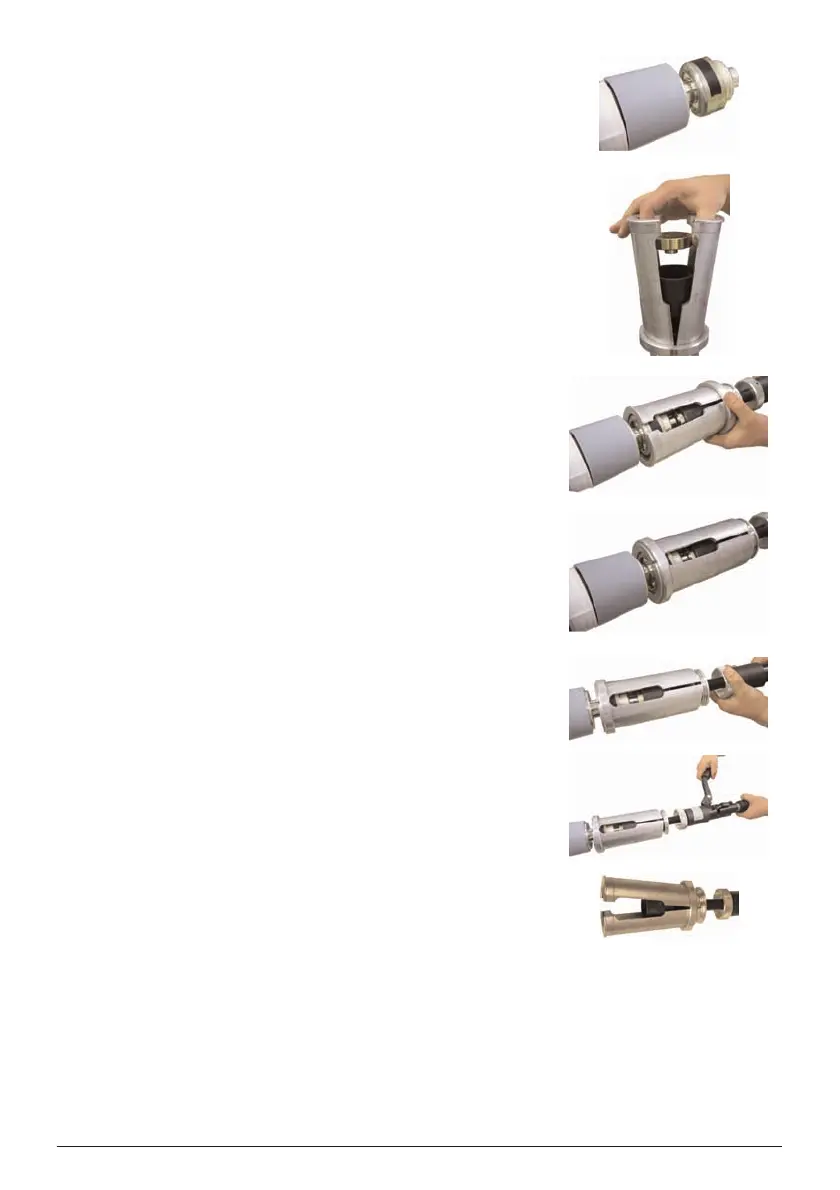

10. Place thrust plate into compression head.
Observe installation position (see illustration)!
11. Push the retaining ring of the compression head
toward the rear.
12. Position the half sleeves of the compression head
behind the pulling-off device.
13. Press half sleeves together and push retaining ring
forward.
14. Turn adjusting ring of manual compression tool
clockwise until the thrust piece of the compression
tool rests against the tension cone.
15. Loosen contact ring with manual compression tool
from tension cone.
16. Push the retaining ring of the compression head
toward the rear.
17. Open the half sleeves of the compression head.
18. Remove compression head and manual compression
tool.
