3. Operations

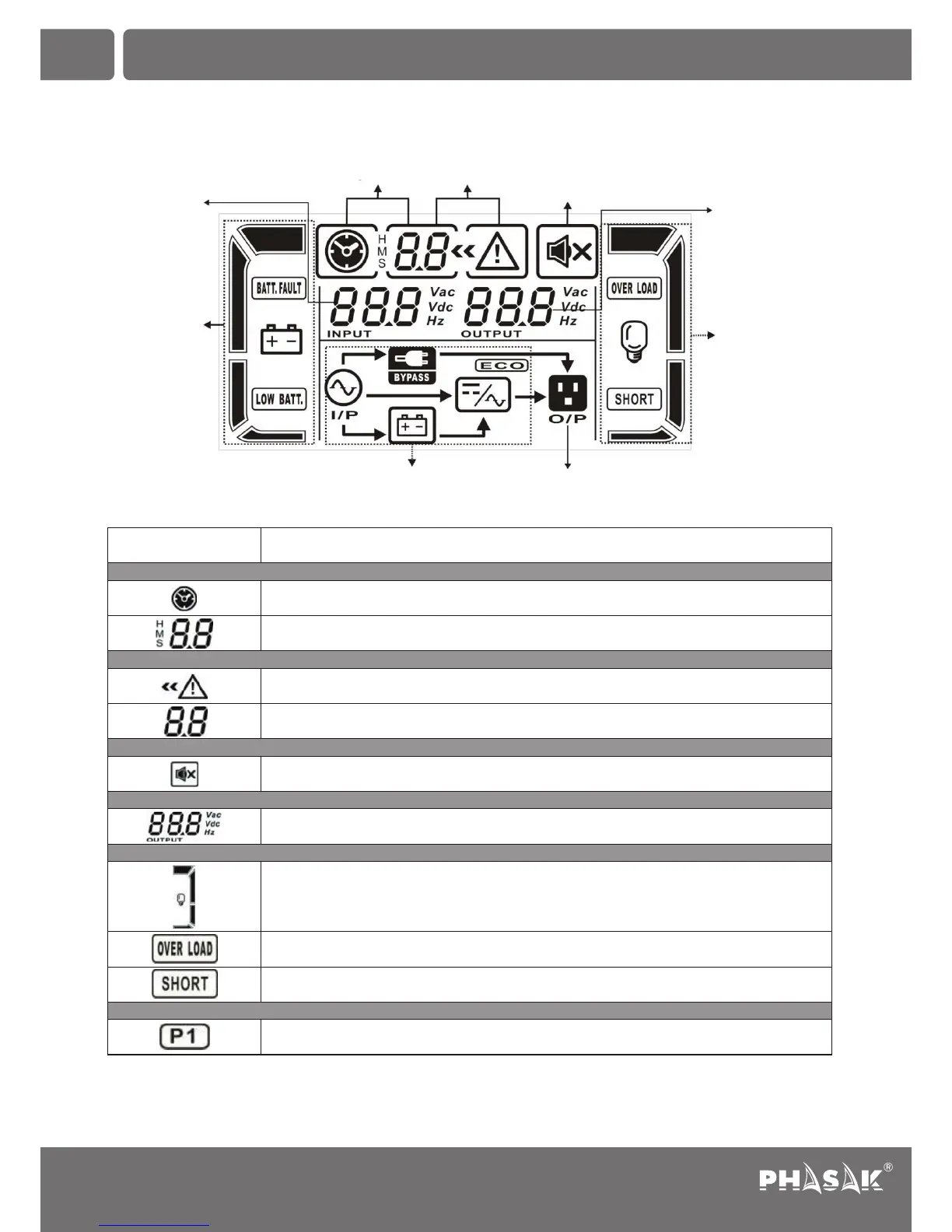

3.2 LCD Panel
FunctionDisplay
Backup time information
Indicates the backup time in pie chart.
Indicates the backup time in numbers.
H: hours, M: minute, S: second
Fault information
Indicates that the warning and fault occurs.
Indicates the warning and fault codes, and the codes are listed in details in 3-5
section.
Mute operation
Indicates that the UPS alarm is disabled.
Output & Battery voltage information
Indicates the output voltage, frequency or battery voltage.
Vac: output voltage, Vdc: battery voltage, Hz: frequency
Load information
Indicates the load level by 0-25%, 26-50%, 51-75%, and 76-100%.
Indicates overload.
Indicates the load or the UPS output is short circuit.
Programmable outlets information
Indicates that programmable management outlets are working.
Segurança e harmonia
ININTERRUPTA
38
Input & Battery
Voltage Info
Battery
Info
Backup
Time Info
Fault
Info
Mute
Info
Load Info
Output & Battery
Voltage Info
Programmable
Outlet Info
Mode
Operation Info
Uninterruptable Power Supply
PH 9210 | PH 9220 | PH 9230 | PH 9260
