3. Operations
3.3. Audible Alarm

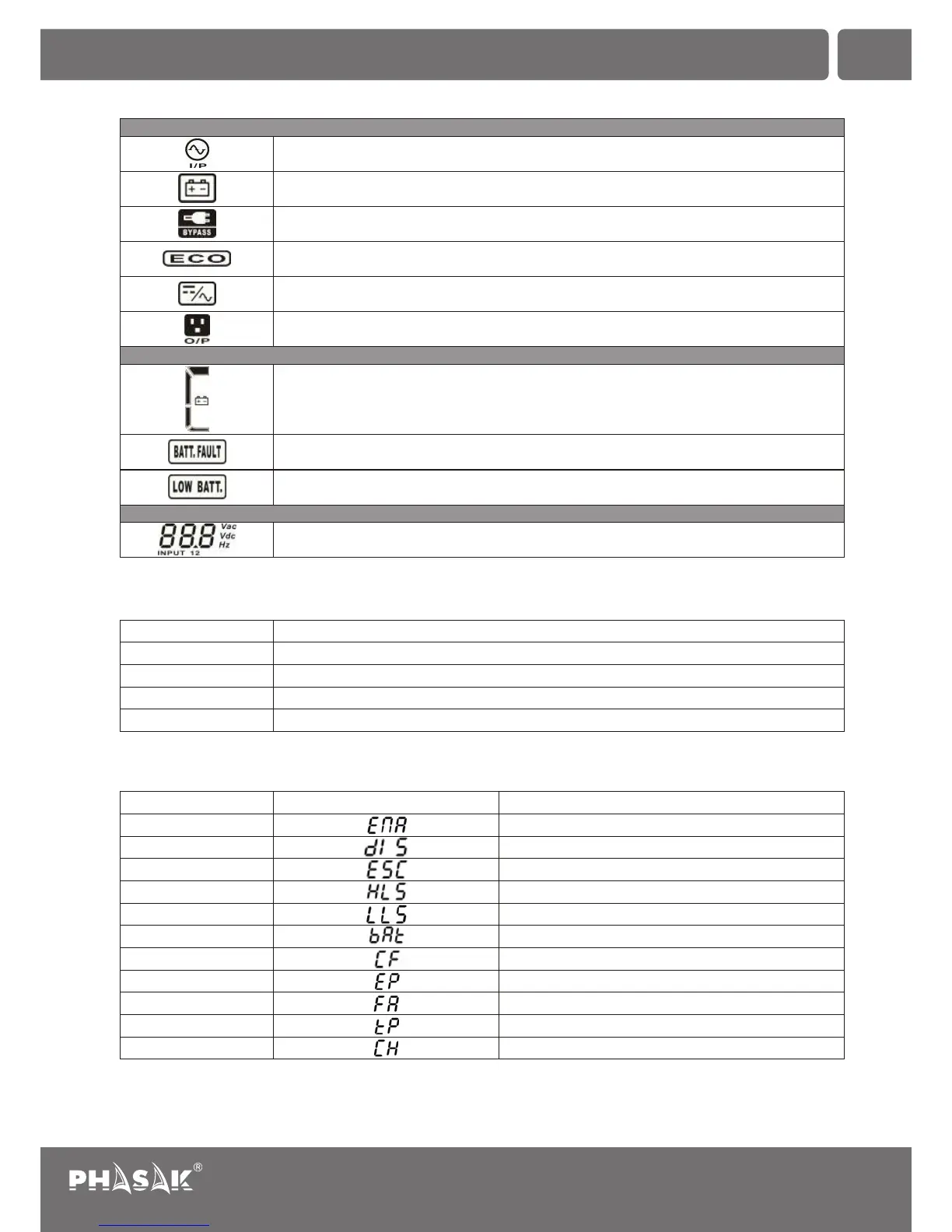

3.4. LCD display wordings index
Mode operation information
Indicates the UPS connects to the mains.
Indicates the battery is working.
Indicates the bypass circuit is working.
Indicates the ECO mode is enabled.
Indicates the Inverter circuit is working.
Indicates the output is working.
Battery information
Indicates the Battery level by 0-25%, 26-50%, 51-75%, and 76-100%.
Indicates the battery is fault.
Indicates low battery level and low battery voltage.
Input & Battery voltage information
Indicates the input voltage or frequency or battery voltage.
Vac: Input voltage, Vdc: battery voltage, Hz: input frequency
Sounding every 4 seconds
Battery Mode
Sounding every second
Low Battery
Sounding twice every second
Overload
Continuously sounding
Fault
Sounding every 10 seconds
Bypass Mode
MeaningAbbreviation
EnableENA
Disable DIS
EscapeESC
High lossHLS
Low lossLLS
BatteryBAT
ConverterCF
Display content
EPOEP
FanFA
TemperatureTP
ChargerCH
