Phase 2 SRG-4600 - Sampling Length Recommendations and Software; Recommended Sampling Length Table; Optional Data Output Software

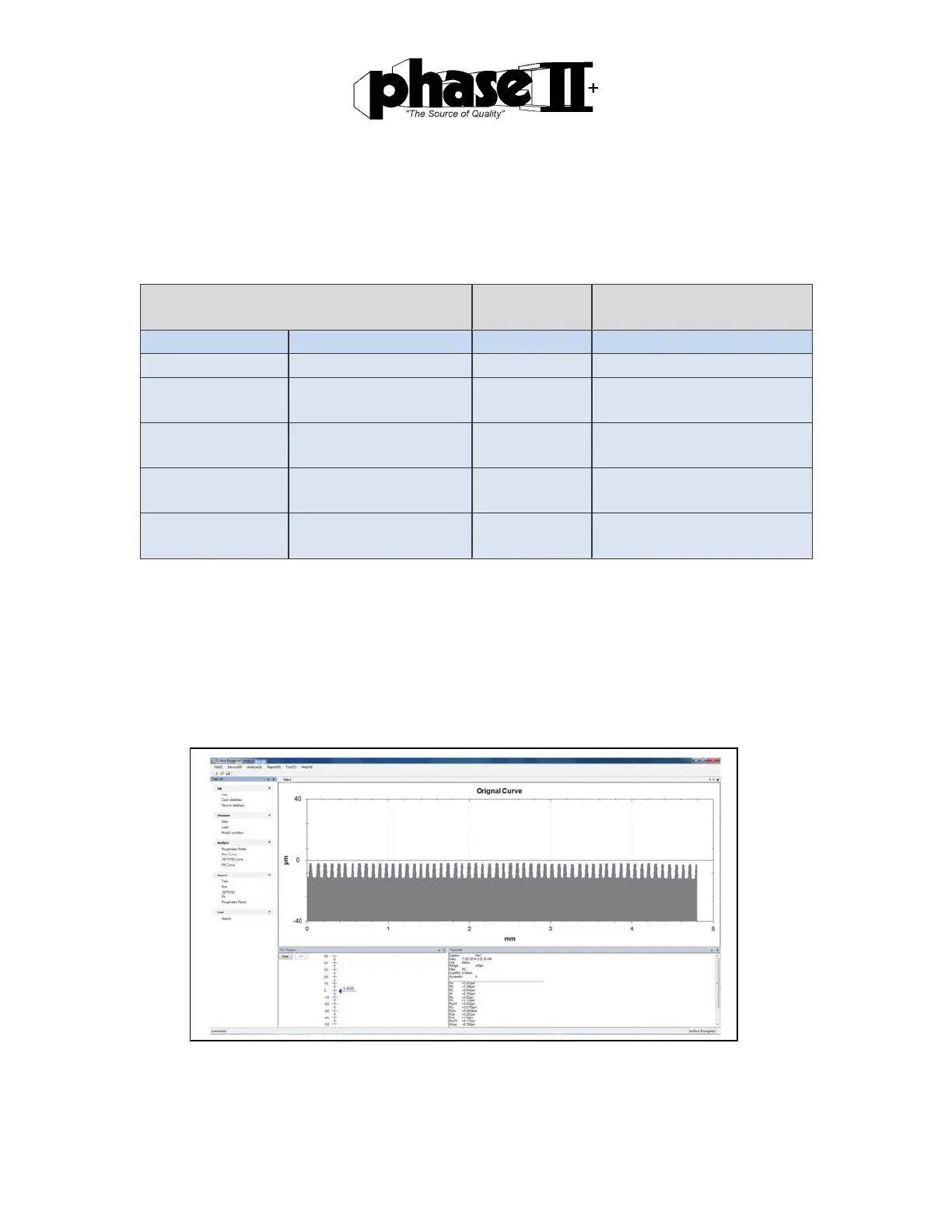

Recommendedtableofthesamplinglength






OptionalDataOutputSoftwareScreenShots
Profile Cutoff
Sampling/Evaluation
Length
Rz (μm) Ra (μm) λc (mm) lr / ln (mm)
Up to .1 Up to .02 .08 .08 / .4
Over .1
up to .5
Over .02
up to .1
.25 .25 / 1.25
Over .5
up to 10
Over .1 up to 2 .8 .8 / 4
Over 10
up to 50
Over 2 up to 10 2.5 2.5 / 12.5
Over 50
up to 200
Over 10 up to 80 8 8 / 40
