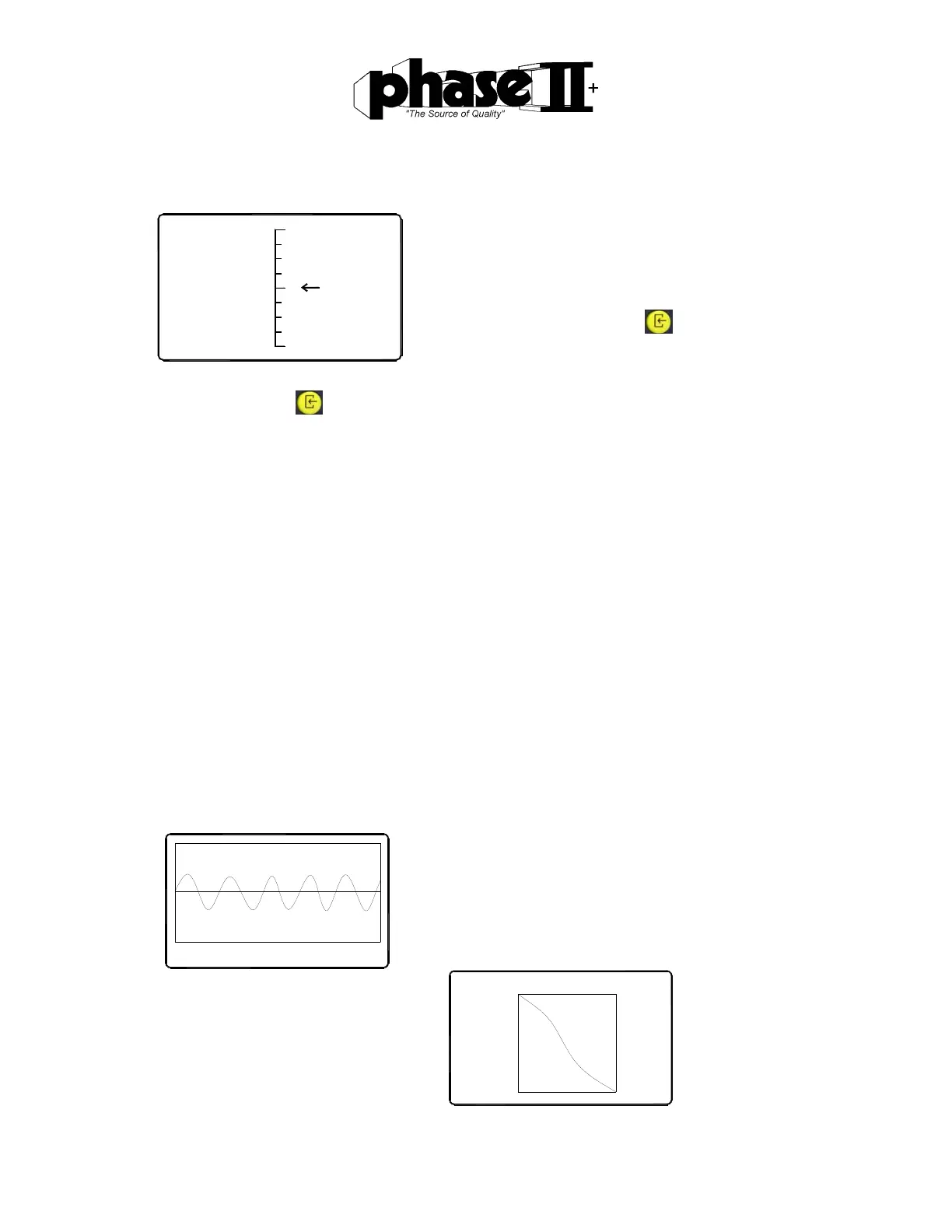

Stylusposition
Prior to taking a test, whether on your part or using the
calibration reference standard, the stylus position must
be leveled on the application. The SRG-4600 has a built-
in zero indicator to make this simple and accurate.
Position the unit on the supplied reference standard or
your work piece and press the
Enter button. The
leveling indicator will appear on the display. Using the
supplied height adjuster on the right side of the unit,
raise or lower until the arrow falls on or close to the “0” in the center of the leveling scale. Once
achieved, press the
Enter button to return to the main measuring screen.
Calibration:usingsuppliedreferencestandard
Accuracy of the SRG-4600 is +/-10% of actual value
Prior to measurement on your parts, you should verify the accuracy of the unit by performing a
quick calibration using the supplied reference standard.
If the difference between the measured value and the specimen value is greater than the scope of
equipment requirements, or user requirements are more accurate, you can use that value of the
calibration function to correct measurement results.
Startingmeasurement
1) Starting measurement
Once all parameters have been set, you should place the SRG-4600 on your work piece. In the
main measuring screen, press start button on the top left corner of the keypad to start measuring .
Do not move unit once test has begun!
To view your results in profile, press the LEFT arrow
button after test has been taken.
While on this page press the Enter(back arrow) Button
to zoom in on the profile.
To view results in the ratio curve,
press the left arrow button then press the
UP Arrow button. To exit, press the
Set/Menu button.
Pickup
Position
-
+
0
Vv:5×
l r：1
(%Rt)
100
0
c
100
(%)
Rmr
