Philips 107T60 - Mechanical Instructions

Mechanical Instructions
107T6 CRT
Go to cover page
7
Control connector
Rotation connector
Signal connector
Degaussing wire connector
Fig. 5
Screw
Pedestal ass'y
Screw
Fig. 1
Clip
CRT grounding wire
Video Panel
Fig. 3

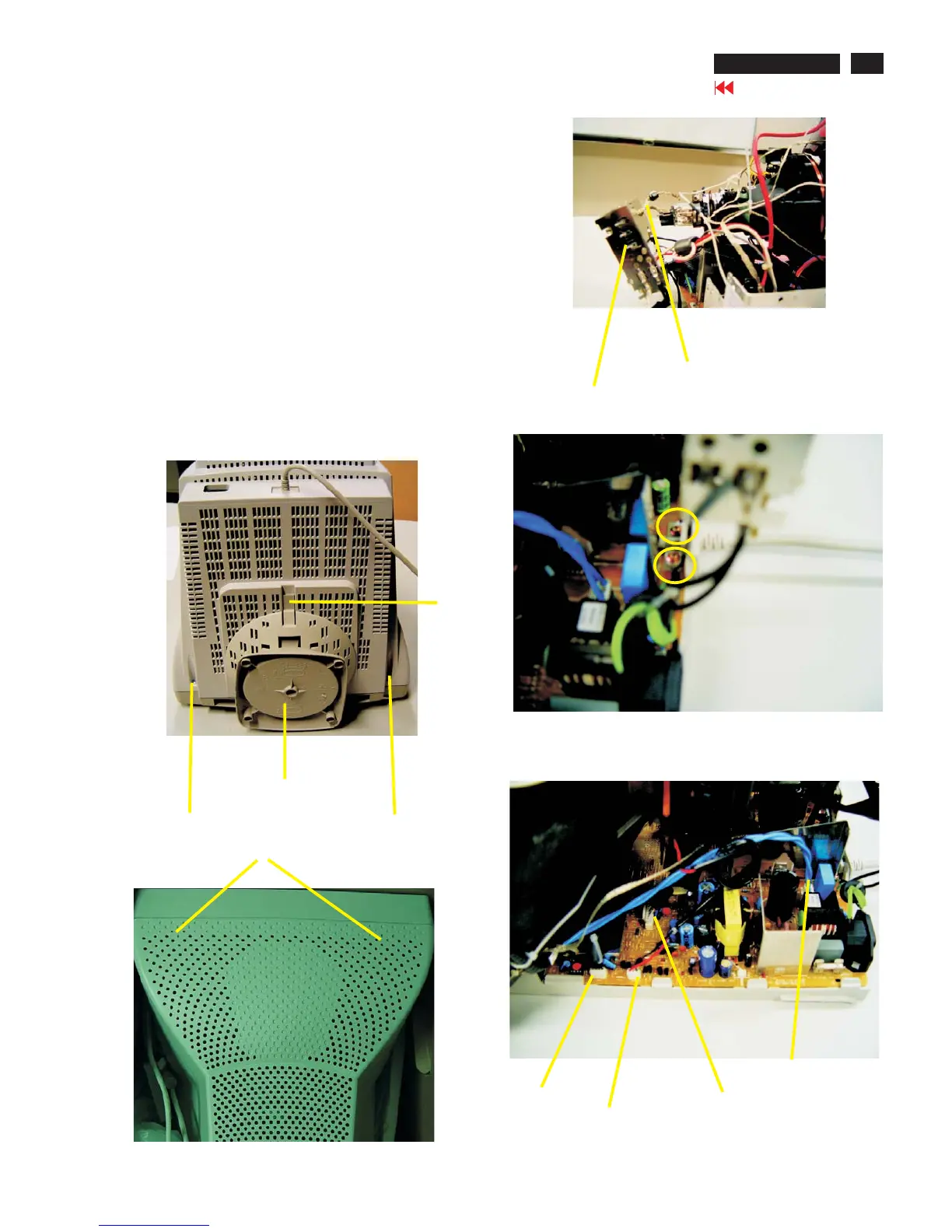

0. General
To be able to perform measurements and repairs on the "circuit
boards", these unit should placed in the service position first.
1. Remove the rear cover in Fig. 1 and Fig. 2.
-Remove 2 screws as shown
-Remove back cover as shown
-Remove pedestal as shown
2. Video panel
-Disconnect the wire between metal shield of video panel and
CRT neck as shown in Fig. 3.
-Disconnect the CRT grounding from Video panel.
-Remove screw grounding and grounding wire in Fig. 4.
3. Main board connector in Fig. 5.
-Disconnect york wire
-Disconnect rotation connector
-Disconnect control board connector
-Remove Screw for fixed I/F cable
-Remove signal connector
-Remove degaussing wire connector
Screw-grounding
Fig. 4
===================>
Fig. 2
Clip Press down
