Philips 190CW7CS/00 - Page 49

190CW7 LCD
49
6
22
GENERAL PRODUCT SPECIFICATION(Continued)
Note the mark "*" forDVI-ItoDsub only
Pin No.Description
1 TMDSdata2-
2 TMDSdata2+
3 TMDSdata2 shield
4 NC
5 NC
6DDCclock
7DDCdata
8 * AnalogV-sync
9 TMDSdata1-
10 TMDSdata1+
11 TMDSdata1 shield
12 NC
13 NC
14 +5V
15 Ground(return for+5Vand H/V-sync)(Cable Detect)
16 Hot plug detect
17 TMDSdata0-
18 TMDSdata0+
19 TMDSdata0 shield
20 NC
21 NC
22 TMDS clock shield
23 TMDS clock+
24 TMDS clock-
C1 * Analog R
C2 * Analog G
C3 * AnalogB
C4 * AnalogH-sync
C5 * Analog GND (Analog R, G,Breturn)

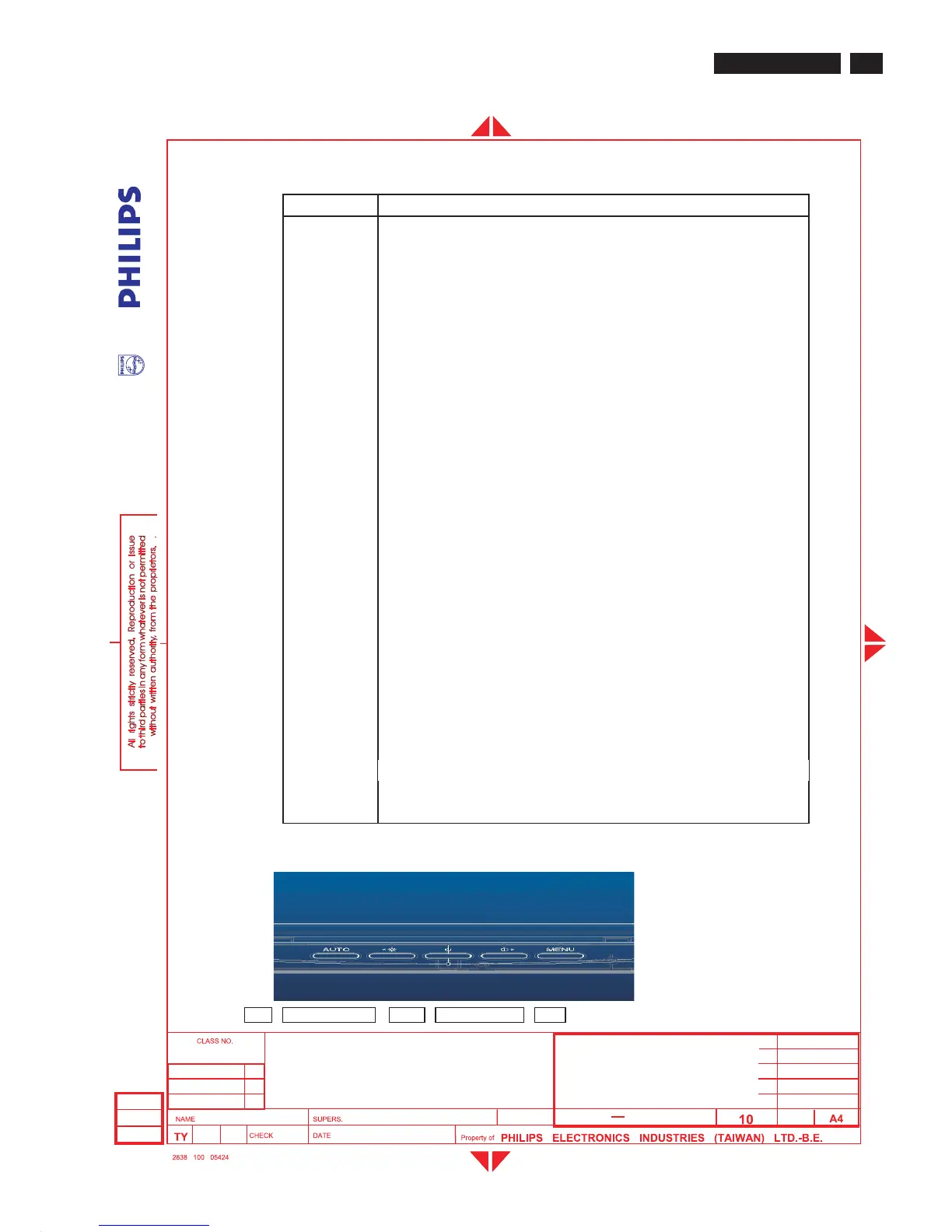

3.2.3 Software controlfunctionsvia OSD/controladjustable functions:
OSDcontrolbottomsequence.
Auto -Left(Brightness) - Power-Right(Contrast) -Menu
8639 000 17256
2006-06-22
2006-06-22
590
BRAND:PHILIPS
19 inch TFT WXGA LCD Monitor
TYPE : 190CW7CS/00
