Philips 190CW7CS/00 - Page 48

48
190CW7 LCD
22
5
GENERAL PRODUCT SPECIFICATION(Continued)
2). Intel DVI Digital
Input signal : Four channel TMDS signal
3.2 Interface
3 .2.1 D-Sub Cable
Length : 1.8 M +/- 50 mm (fixed) , fix in monitor and with transplant pin
protect cover.
Connector type : D-Sub male with DDC2B pin assignments.
Blue connector thumb-operated jack screws
pin assignment :

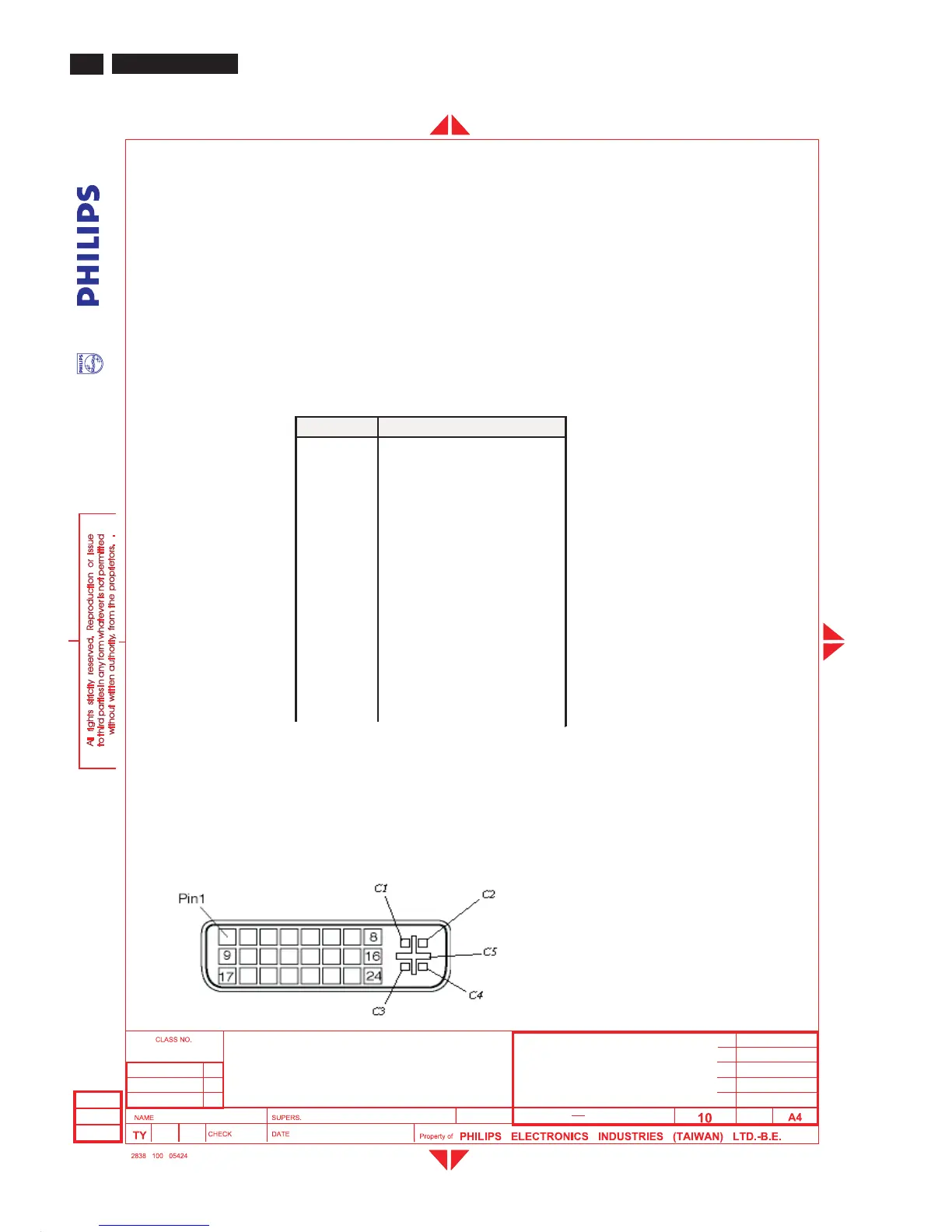

3.2.2 DVI Cable
PIN No. SIGNAL
1Red
2 Green/ SOG
3Blue
4 Sense (GND)
5 Cable Detect (GND)
6RedGND
7GreenGND
8BlueGND
9 DDC +3.3V or +5V
10 Logic GND
11 Sense (GND)
12 Bi-directional data
13 H/H+V sync
14 V-sync
15 Data clock
The input signals are applied to the display through DVI-D cable.
Length : 1.8 M +/- 50mm (fixed)
Connector type : DVI-D male with DDC2B pin assignments
White connector thumb-operated jack screws
pin assignment :
BRAND : PHILIPS
19 inch TFT WXGA LCD Monitor
TYPE : 190CW7CS/00
8639 000 17256
2006-06-22
2006-06-22
590
