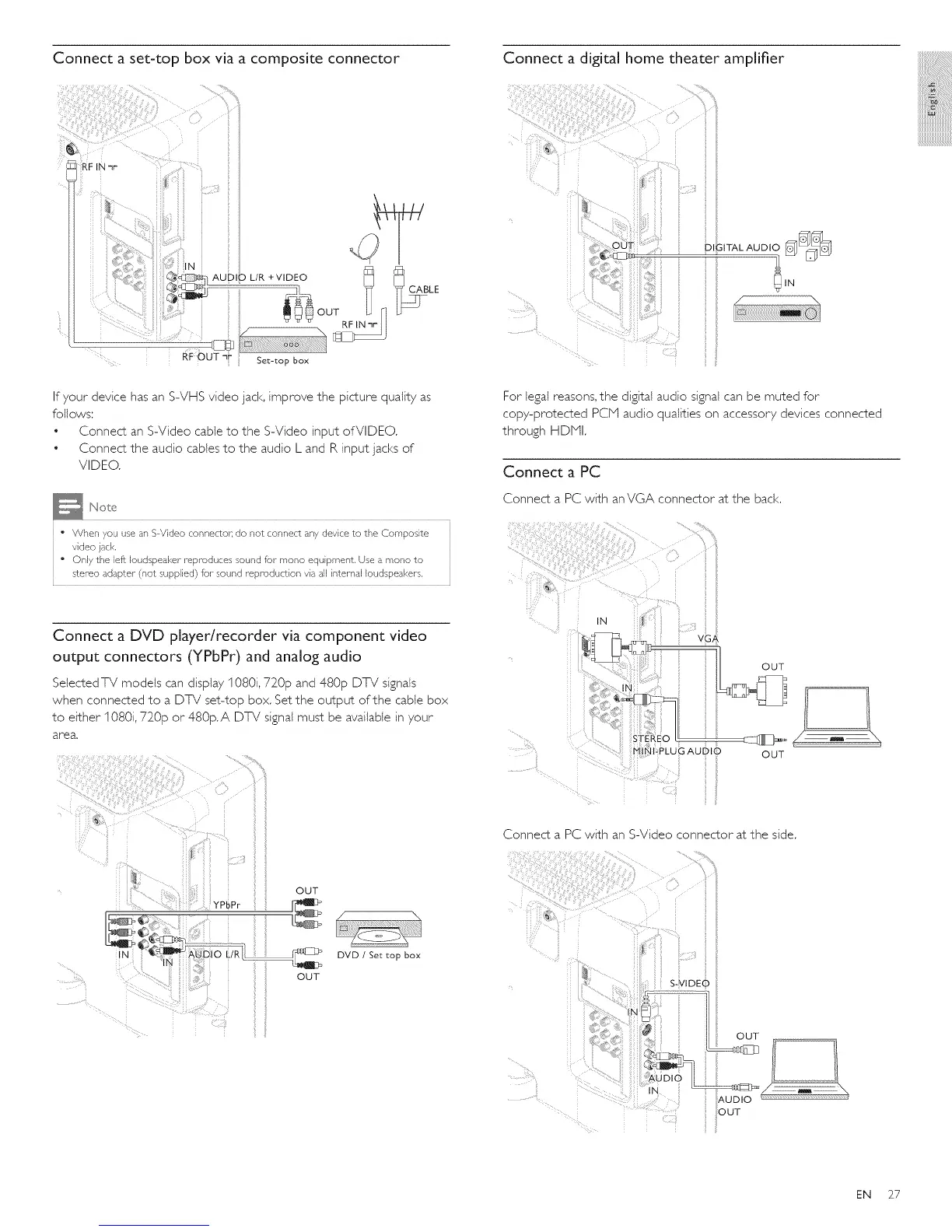

Connect a set-top box via a composite connector
AUbI_ L/R +VIDEO
Set-top box
If your device has an S-VHS video jack, improve the picture quality as
follows:
• Connect an S-Video cable to the S-Video input of VIDEO.
• Connect the audio cables to the audio L and R input jacks of
VIDEO.
" When you use an S Video connector, do not connect any device to the Composite
video jack.
• Only the left loudspeaker reproduces sound for mono equipment. Use a mono to
stereo adapter- (not supplied) for sound reproduction via all internal loudspeakers,
Connect a digital home theater amplifier
For legal reasons, the digital audio signal can be muted for
copy-protected PCIVj audio qualities on accessory devices connected
through HDll.
Connect a PC
Connect a PC with an VGA connector at the back,
iiiiiiiiiii}
_##############,_
Connect a DVD player/recorder via component video
output connectors (YPbPr) and analog audio
Selected T_/models can display 1080i, 720p and 480p DTV signals
when connected to a DTV set-top box. Set the output of the cable box
to either 1080i, 720p or 480p.A DTV signal must be available in your
area,
i
................¸¸¸}>%
ii ii
OUT
,q
i / OUT
OUT
Connect a PC with an S-Video :onneczor at zne side.
.......il
DVD / Set top box
S-VIDEO
OUT
EN 27
