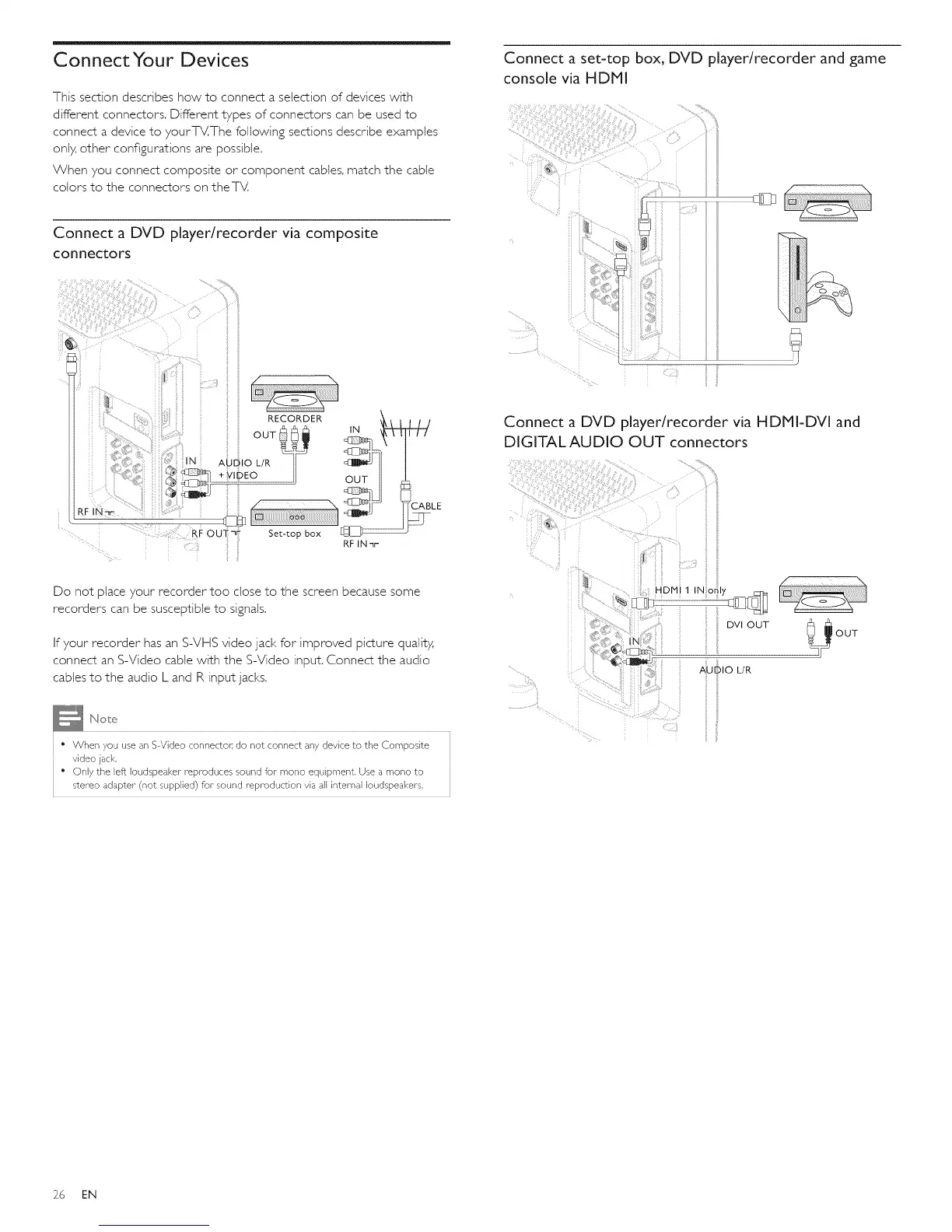

ConnectYour Devices
This section describes how to connect a selection of devices with
different connectors. Different types of connectors can be used to
connect a device to yourT_ZThe following sections describe examples
only, other configurations are possible.
When you connect composite or component cables, match the cable
colors to the connectors on theT_.
Connect a DVD player/recorder via composite
connectors
Do not place your recorder too close to the screen because some
recorders can be susceptible to signals,
If your recorder has an S-VHS video jack for improved picture quality,
connect an S-Video cable with the S-Video input. Connect the audio
cables to the audio L and R input jacks,
Connect a set-top box, DVD player/recorder and game
console via HDMI
Connect a DVD player/recorder via HDMI-DVI and
DIGITAL AUDIO OUT connectors
HDMI" I
DVI OUT
AUDIO L/R
When you use an S Video connecto_; do not connect any device to the Composite
video iacl<,
" Only tlqe left loudspeaker reproduces sound for mono equipment. Use a mono to
stereo adapter (not supplied) for sound reproduction via all internal loudspeakers,
