Preparation before disassemble
1. Clean the room for disassemble
2. Identify the area for monitor
3. Check the position that the monitors be placed and the quantity of the monitor; prepare the area for material flow;
according to the actual condition plan the disassemble layout
4. Prepare the implement, equipments, and materials as bellow:
Press-fixture
1) working table 2) Screw-driver 3)knife*1 4)Glove 5)Cleaning cloth 6) ESD protection

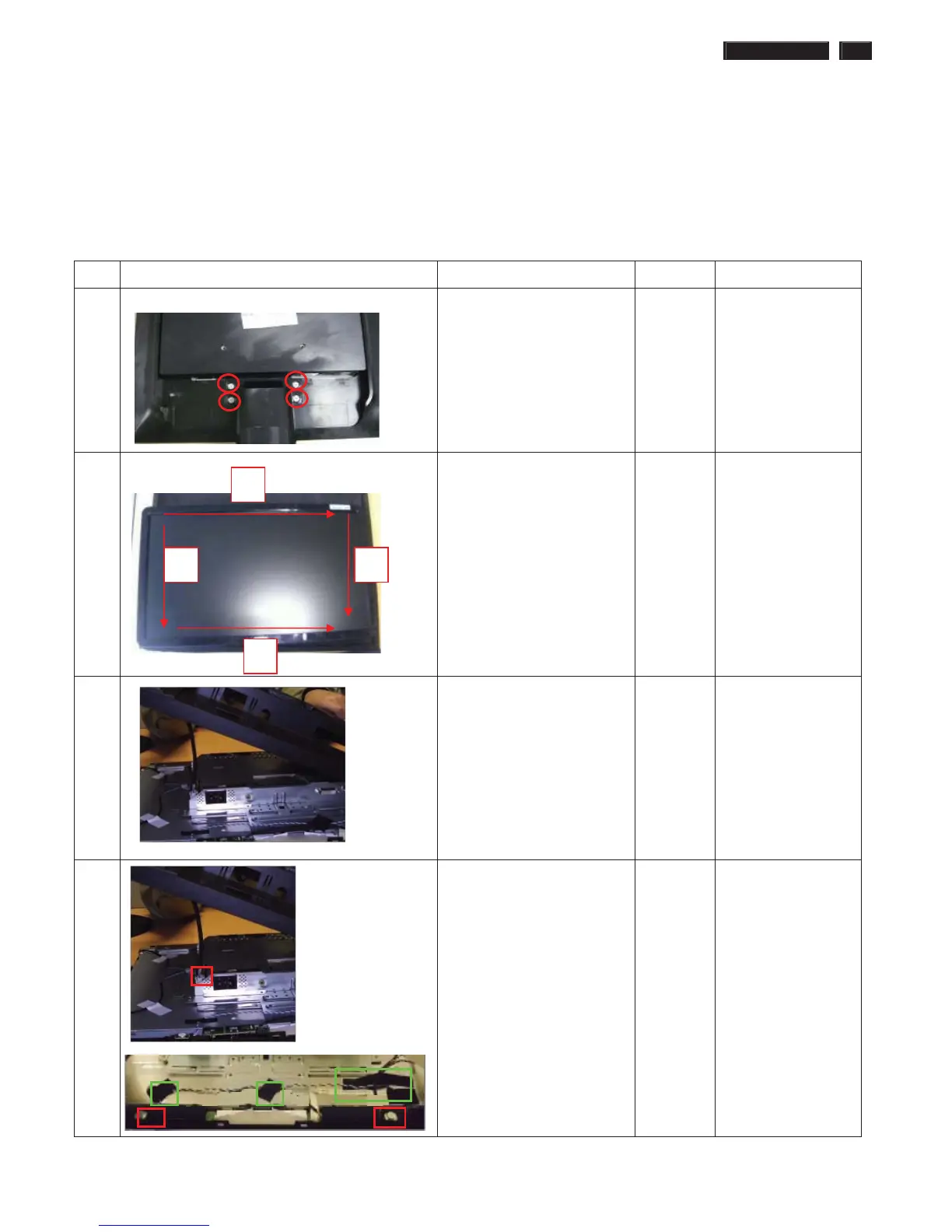

item picture Operation Tool Notes
1 Tear off four piece of
Mylar
Disassemble the stand
Æ 4 screws
Screw-dri
ver
2 disassembly the bezel from
the monitor, notice the
disassembly order :
1.Top (1) parts of bezel
2.Left (2) parts of bezel
3.Bottom (3) parts of bezel
4. Right (4) parts of bezel
Don’t draw the BZL
When disassembly
the bezel ,
notice don’t bend
the C/B .
man must wear
glove
The purpose is
loose the BZL
3 Turn over the monitor ,
Bring the Rear cover from
the monitor
Don’t dismantle the
Rear cover
4 Draw the AC Switch cable
out power board
Tear off four Piece of acetic
tape on the bottom of
Panel
disassembly the speaker
1
2
3
4
