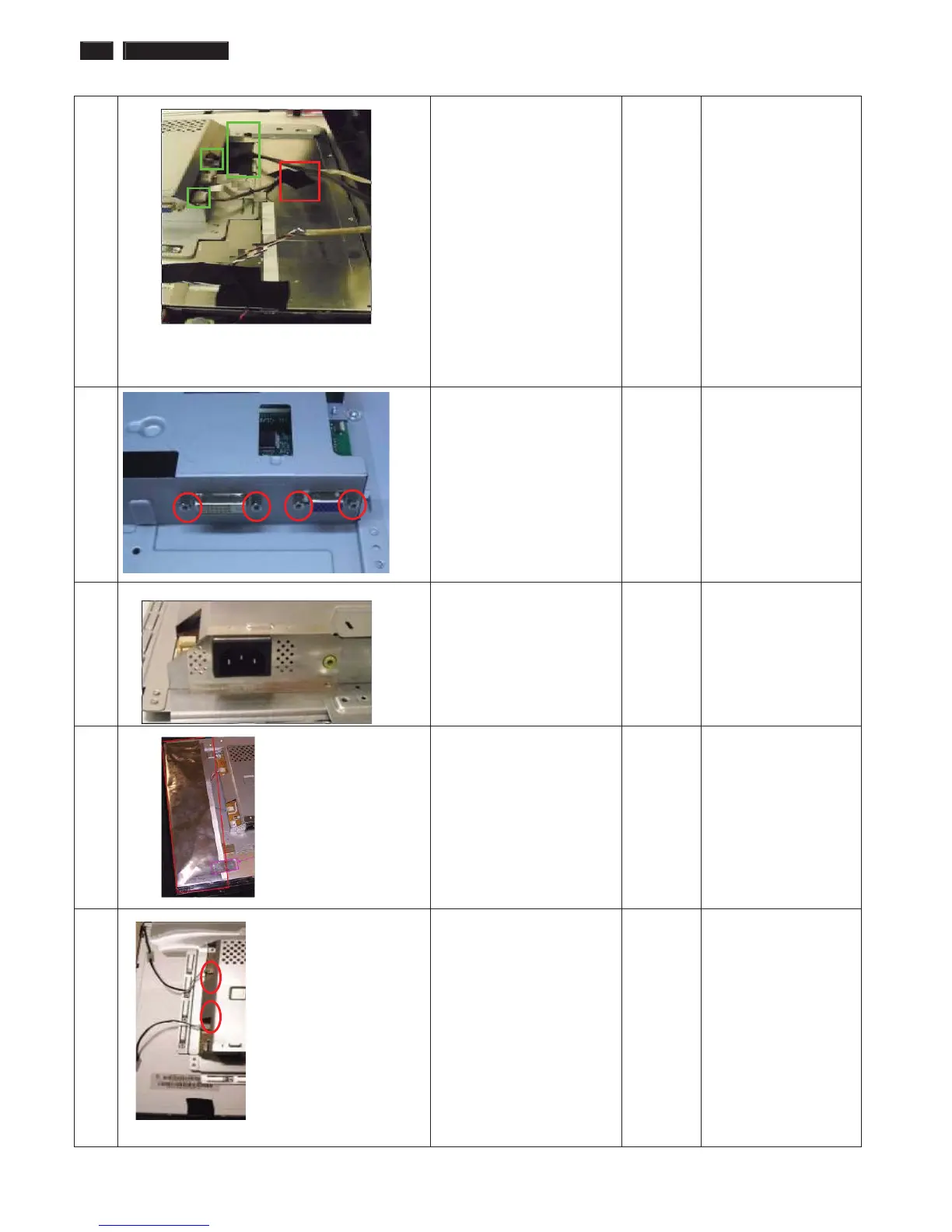

5 Draw the USB-P2 cable
out USB-P1 cable
Draw the contral board
cable and USB-I cable out
ITF-board
Take the entire internal
mechanism from Bezel
and then put it on the
cushion
6 Disassembled the
Main-BKT : hexagonal
screw *4
Screw-dri
ver
7 Disassembled the AC
Socket BKT
8 Tear off two piece of al foil
on the left of Main-BKT
9 Pull out the lamp cables Notes the below PIC
Then the designed
Main-BKT will help to
pull out the wires
Man can raise the
Lock of Lamp and
then Pull out the lamp
easily
