Philips 220BL2CB/00 - Page 13

220BL2 LCD 13
0HFKDQLFDO,QVWUXFWLRQ

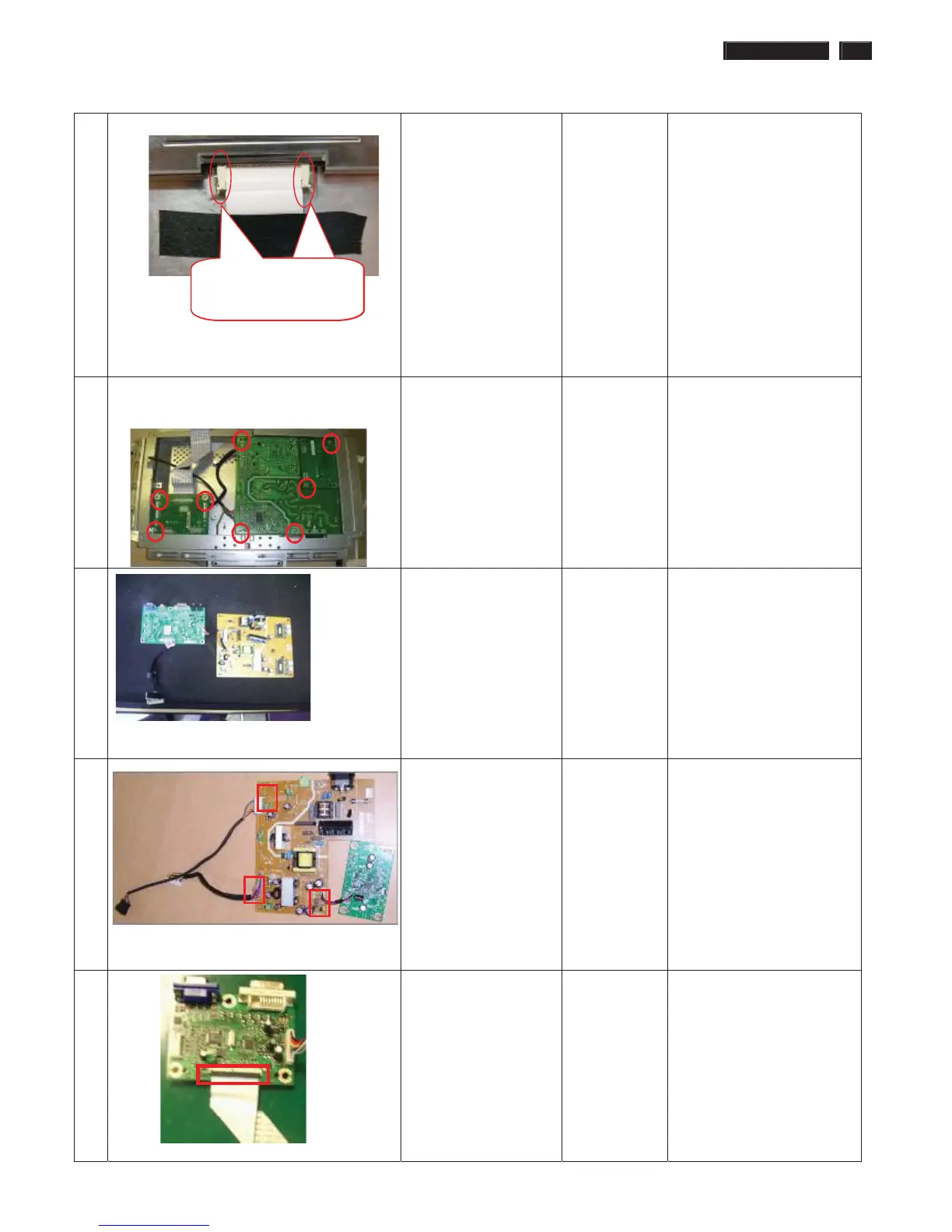

10 Tear off the acetic
tape
Unlock the FFC by
using two hands(see
note).
Please carefully use two
hands(one hand presses
the locking-latch of FFC
cable’s housing, and at the
same time another hand
pulls out the FFC cable.)
for this step to avoid from
deforming the terminals of
positive-locking type FFC
cable.
11
For model 220BL2:
For model 220BL2:
Disassemble the
Power boardΕITF
board and LED drive
board
Æ 8 screws
Screw-driver
12 Take the PCBA from
Main-BKT and then
put it on the cushion
13 For model 220BL2:
Pull out the cable of
Power board
Pull out the USB-P1
cable
Pull out the cable of
LED drive board
Notes: Pull the connect
upright
14 Draw the ffc cable
The locking-latch
of
L
VDS cable’s
The locking-latch
of FFC cable’s
