7. Remove scalar board as Fig12~Fig13.

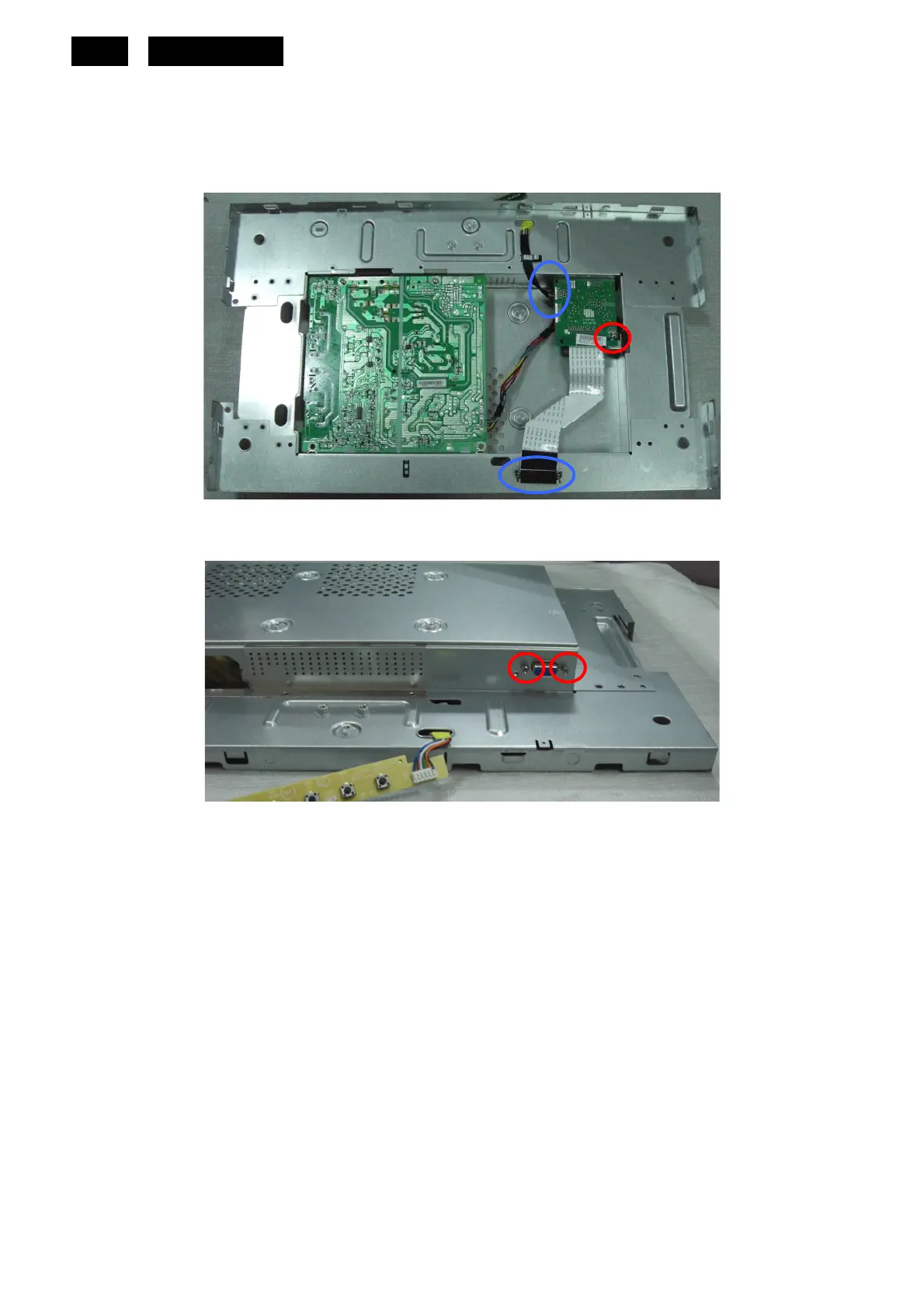

a. Remove the screw remarked in red as Fig12.
b. Disconnect the two connectors marked in blue as Fig12.
c. Remove the two screws remarked in red as Fig13.
Fig12
Fig13
