Content protection:
According to High-Definition Content Protection (HDCP)
Specification 1.10.
HDMI video input should support timing defined in CEA 861-D
specification with extended EDID blocks
Video Timing Support :
Format
Resolution
Type
Vertical frequency
480i
720 x 480
SD
60Hz
480p
720 x 480
SD
60Hz
576i
720 x 576
SD
50Hz
576p
720 x 576
SD
50Hz
720p
1280 x 720
HD
50Hz , 60Hz
1080i
1920 x 1080
HD
50Hz , 60Hz
1080p
1920 x 1080
HD
24Hz, 25Hz, 30Hz, 50Hz, 60Hz

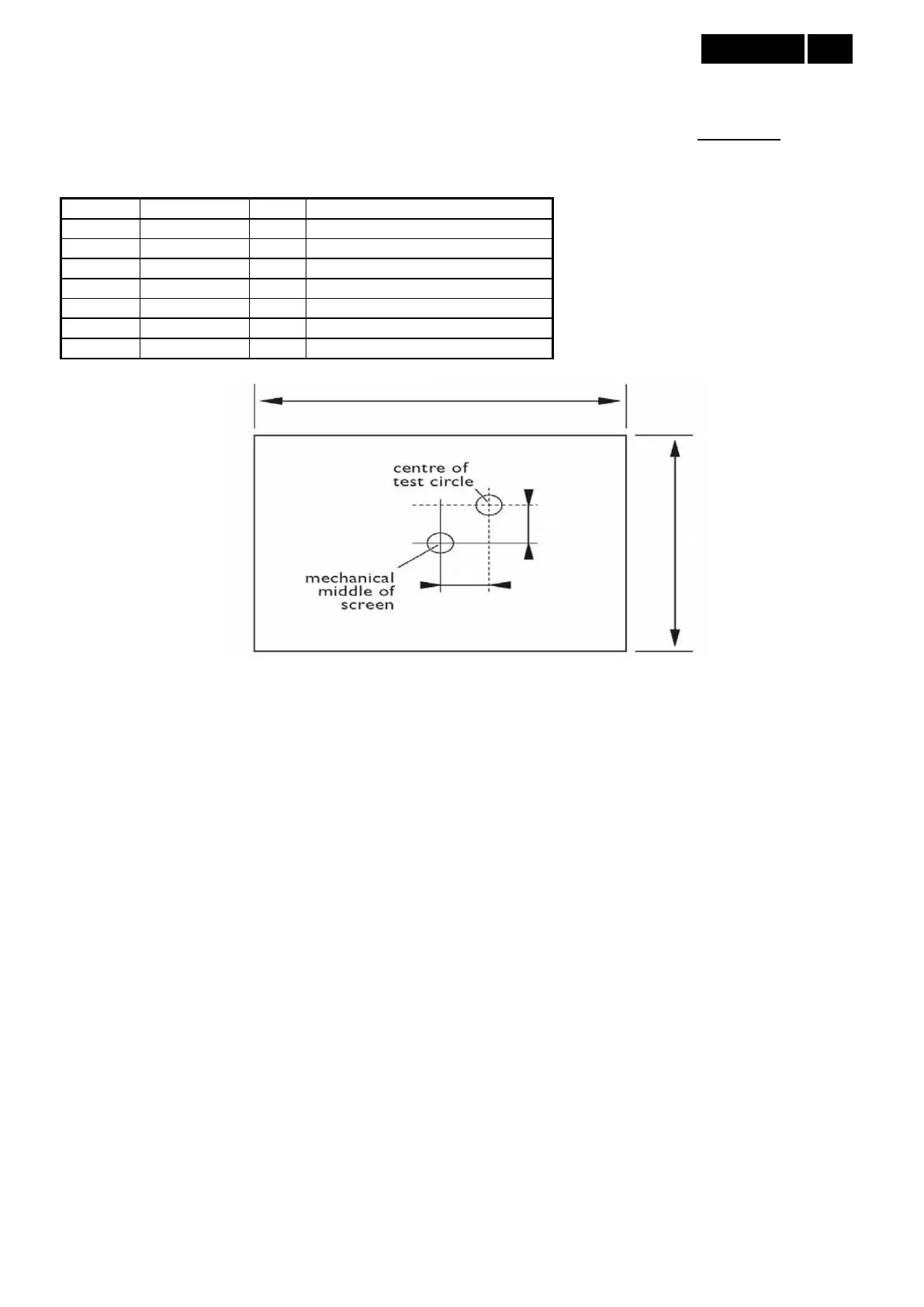

 Picture centering - H & V ≤ 0.5 %. (for TV, 480i/p, 576i/p, 720p, 1080i/p)
Over Scan -
1. RGB signal : OFF (no this function)
2. YUV signal : (Video timming) ON (Be use and set ON/OFF)
(But only 1080p define is OFF )
PC timing: to follow PC timing table
TMDS/+5V/DDC/HPD/CEC Signals
(TMDS Signal)
Termination Supply Voltage AV
CC
: 3.3V± 5%
Differential Voltage Level : 150mV – 1200mV
Common Mode Voltage : (AV
CC
– 300mV) – (AV
CC
– 37.5mV)
Differential Sensitivity : 150mVp-p
Maximum differential Voltage : 1560mVp-p
(+5V Power)
Power Supply Voltage : 4.7V – 5.3V
Maximum Current Consumption : 50mA
(DDC Signal)
Maximum Capacitance : 50pF
(HPD Signal)
High Voltage Level : 2.4V – 5.0V
Low Voltage Level : 0 – 0.4V
Output Resistance : 1KΩ±20%
