4. Input/ Output Specification

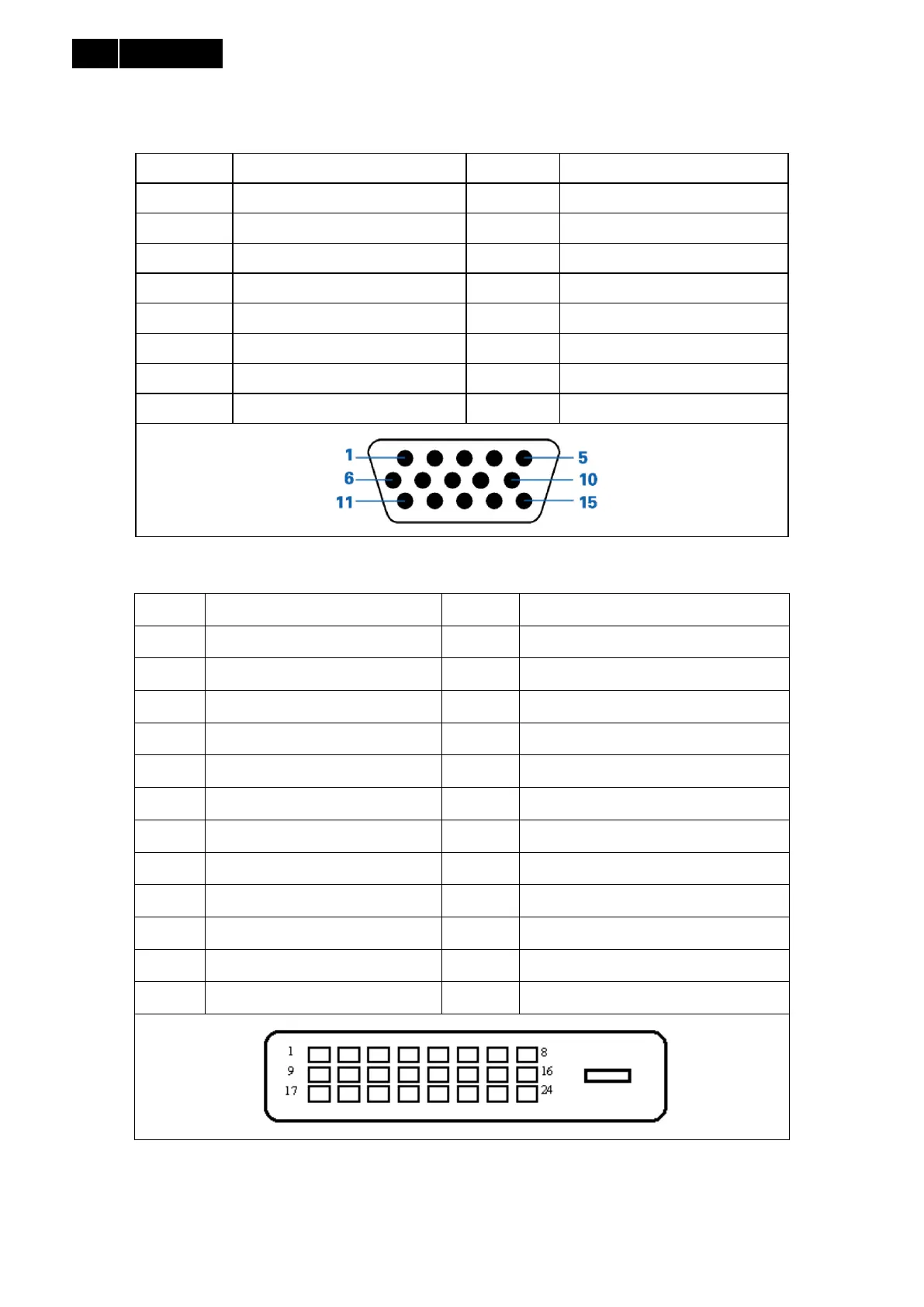

4.1 Input Signal Connector
D-sub Connector
Pin No.
Signal Name
Pin No.
Signal Name
1
Red
9
DDC +3.3V or +5V
2
Green/ SOG
10
Logic GND
3
Blue
11
Sense (GND)
4
Sense (GND)
12
Bi-directional data
5
Cable Detect (GND)
13
H/H+V sync
6
Red GND
14
V-sync
7
Green GND
15
Data clock
8
Blue GND
DVI-D Connector
Pin No.
Signal Name
Pin No.
Signal Name
1
T.M.D.S. data2-
13
No Connect
2
T.M.D.S. data2+
14
+5V Power
3
T.M.D.S. data2 shield
15
Ground (for +5V)
4
No Connect
16
Hot plug detect
5
No Connect
17
T.M.D.S. data0-
6
DDC clock
18
T.M.D.S. data0+
7
DDC data
19
T.M.D.S. data0 shield
8
No Connect
20
No Connect
9
T.M.D.S. data1-
21
No Connect
10
T.M.D.S. data1+
22
T.M.D.S clock shield
11
T.M.D.S. data1 shield
23
T.M.D.S. clock+
12
No Connect
24
T.M.D.S. clock-
