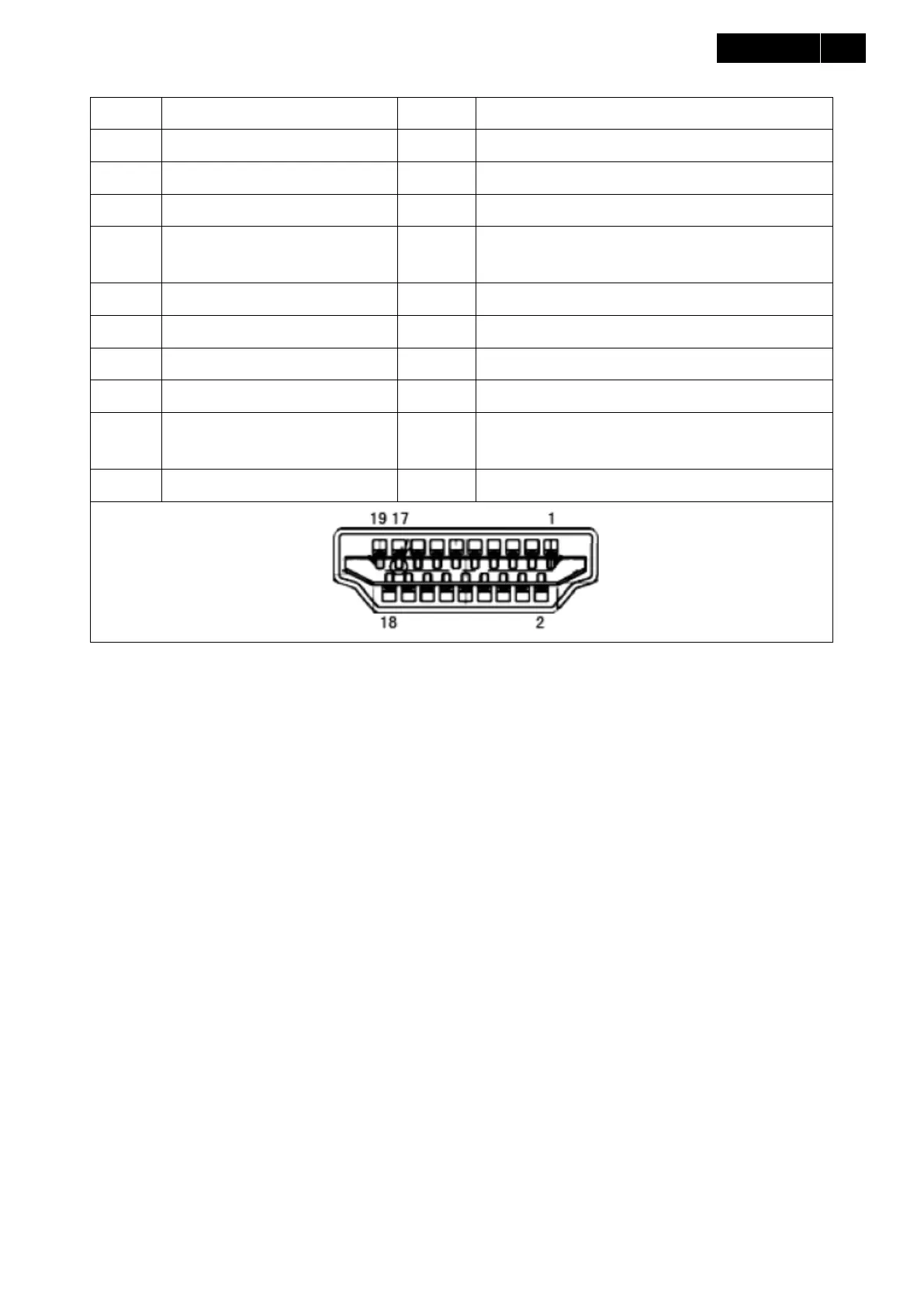

HDMI Connector
Pin No.
Signal Name
Pin No.
Signal Name
1
TMDS Data2+
11
TMDS Clock Shield
2
TMDS Data2 Shield
12
TMDS Clock–
3
TMDS Data2–
13
CEC
4
TMDS Data1+
14
Reserved (HDMI 1.0-1.3c), HEC Data- (Optional,
HDMI 1.4+ with Ethernet)
5
TMDS Data1 Shield
15
SCL (I²C Serial Clock for DDC)
6
TMDS Data1–
16
SDA (I²C Serial Data Line for DDC)
7
TMDS Data0+
17
DDC/CEC/HEC Ground
8
TMDS Data0 Shield
18
+5 V Power (max 50 mA)
9
TMDS Data0–
19
Hot Plug Detect (All versions) and HEC Data+
(Optional, HDMI 1.4+ with Ethernet)
10
TMDS Clock+
