Philips 223V5LSB/00 - Page 42

42
Meridian 5
CC170C
W8 LCD
C
C
Remark: Parts position can be searched by using FIND function in PDF.
OEM MODEL Size
Rev
Date
Sheet of
TPV MODEL
PCB NAME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹 PHILIPS 233V5LHAB A
PHILIPS V5
B
3 7Thursday , January 03, 2013
715G5844-M0B-000-0040
< 称爹 >

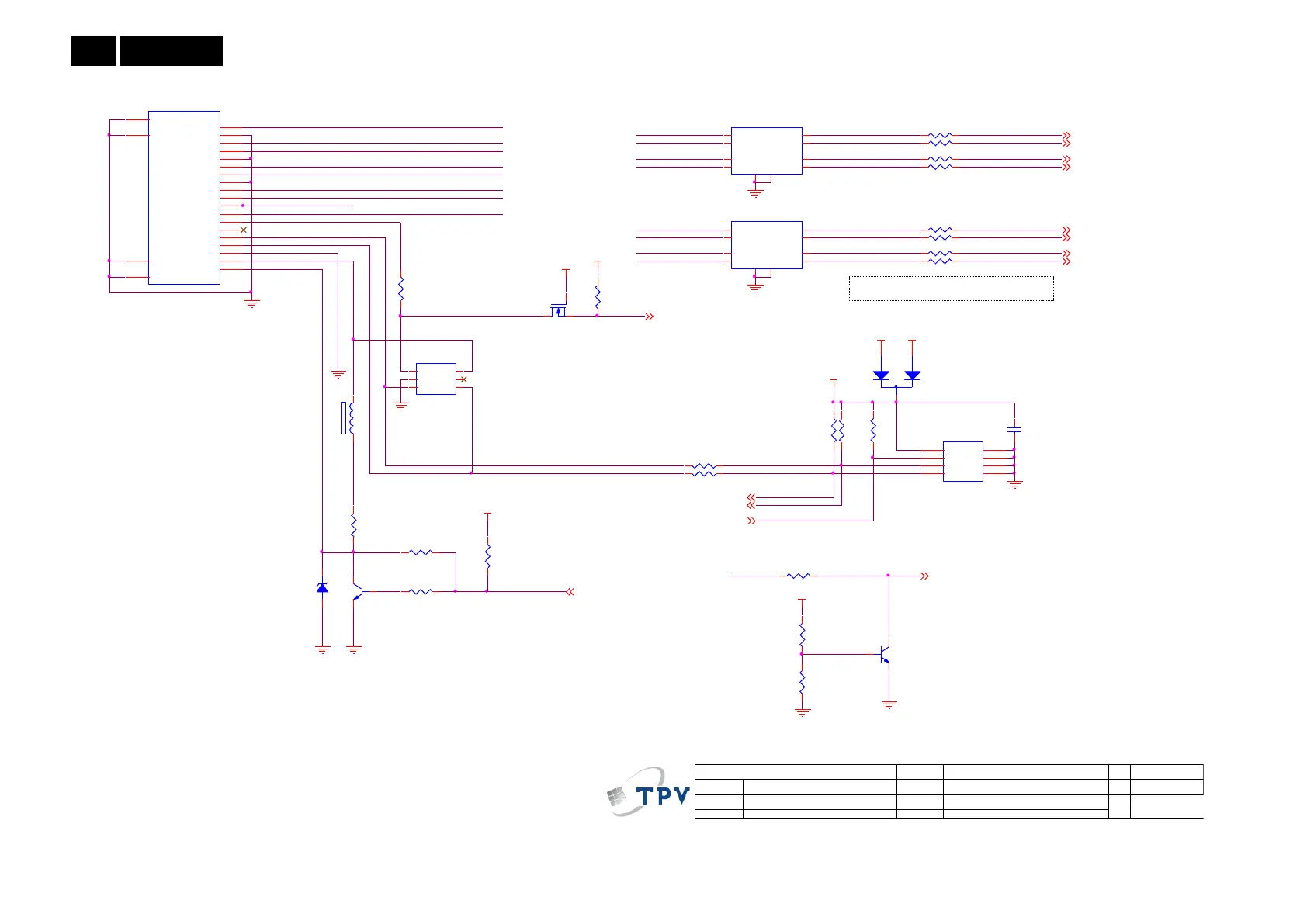

3.HDMI INPUT
715G5844-M0B-000-0040-1_233V5LHAB
R522 100OHM
HDMI1_CK-
HDMI1_CK+
HDMI1_D0-
HDMI1_D0+
DET_HDMI
HDMI1_D1-
HDMI1_D2+
HDMI1_D2-
HDMI1_D1+
CN501
HDMI
TH1
20
TH2
21
D2+
1
D2 Shield
2
D2-
3
D1+
4
D1 Shield
5
D1-
6
D0+
7
D0 Shield
8
D0-
9
CK+
10
CK Shield
11
CK-
12
CE Remote
13
NC
14
DDC CLK
15
DDC DATA
16
GND
17
+5V
18
HP DET
19
TH3
22
TH4
23
R517
NC
DET_HDMI1 4
R519
6.2K 1/16W
R521
33K 1/16W
HD1-
HD0+
HD0-
U502
AOZ8804DI
IN1
1
IN2
2
GND
3
IN3
4
IN4
5
NC
6
NC
7
GND
8
NC
9
NC
10
HD2+
HD2-
CEC
HDMI1_CK-
HDMI1_CK+
HDMI1_D0-
HDMI1_D0+
HDMI1_D1-
HDMI1_D1+
HDMI1_D2-
HDMI1_D2+
U501
AOZ8804DI
IN1
1
IN2
2
GND
3
IN3
4
IN4
5
NC
6
NC
7
GND
8
NC
9
NC
10
R516
1K
R515 100OHM
R520
NC/10K
FB105
300R 0.7A
Q501
NC/2N7002K
Q502
NC/LMBT3904LT1G
R510
NC
ZD502
RLZ5.6B
1 2
R514 100OHM
C502
220N 10V
D501
BAT54C
3
1 2
R509
NC
R511
4.7K1/16W
R513 10K
U503
AZC398-04S
I/O1
1
GND
2
I/O2
3
I/O3
4
NC
5
I/O4
6
R512
4.7K1/16W
R518
100OHM
+5V
HDMI_+5V+5V
HDMI_+5V
HDMIESD
HDMI_+5V
+5V
DDCD_SCL4
DDCD_SDA4
CEC_CTRL 4
HDMI_HPD 4
DDC_WP2,4
R505 0R05 OHM
R507 0R05 OHM
R501 0R05 OHM
R503 0R05 OHM
R506 0R05 OHM
R504 0R05 OHM
R502 0R05 OHM
R508 0R05 OHM
HCK+ 4
HCK- 4
HD0+ 4
HD0- 4
HD1- 4
HD2- 4
HD1+ 4
HD2+ 4
U501~U503 close to CN501
DET_HDMI
HDMI1_CK-
HDMI1_CK+
HD1+
HDMI_+5V
HDMI1_D2+
HDMI1_D2-
HDMI1_D1+
HDMI1_D1-
HDMI1_D0+
HDMI1_D0-
HDMI_CLK
U504
AT24C02C-SSHM-T
A0
1
A1
2
A2
3
GND
4
SDA
5
SCL
6
WP
7
VCC
8
HDMI_DATA
HDMI_HOTPLUG
HCK-
HCK+
Q504
LMBT3904LT1G
HDMI_HPD
