Philips 223V5LSB/00 - Page 52

52
Meridian 5
CC170C
W8 LCD
C
C
Remark: Parts position can be searched by using FIND function in PDF.
R542 0R05 OHM
R543 0R05 OHM
R544 0R05 OHM
R545 0R05 OHM
HDMI_DET
R546 0R05 OHM
R547 0R05 OHM
R548 0R05 OHM
R549 0R05 OHM
HDMI_+5V
HDMI2/CK+
HDMI2/D1-
HDMI_HOTPLUG
HDMI2/D1+
HDMI2/D0-
HDMI_DET
HDMI2/D2+
HDMI2/D1+
HDMI2/D0-
HDMI2/D2+
HDMI2/D1-
HDMI2/D0+
HDMI_SDA_A
HDMI_SCL_A
HDMI_SDA_A
HDMI_HOTPLUG
HDMI2/CK-
HDMI2/D0-
HDMI2/D1+
HDMI2/D2+
HDMI2/D2-
HDMI2/D2-
HDMI_SCL_A
HDMI_SDA_A
HDMI2/D0+
HDMI_DET
HDMI_SCL_A
HDMI2/D1-
HDMI2/D0+
HDMI2/D2-
HDMI
R/A: 388G340CJ05AAT
V/T: 088G 34019H VA
R/A: 088G 34019G AV( no shield)
Q501
NC/LMBT3904LT1G
R539
47 OHM 1/16W
R162
100OHM
R532
4.7K1/16W
R533
4.7K1/16W
R537 47 OHM 1/16W
R523
1K
R534
22K1/16W
U512
M24C02-RMN6TP
E0
1
E1
2
E2
3
VSS
4
SDA
5
SCL
6
WC
7
VCC
8
Q503
LMBT3904LT1G
R541
0R05 1/10W
U509
AOZ8804DI
CH1
1
CH2
2
VN
3
CH3
4
CH4
5
NC
6
NC
7
VN
8
NC
9
NC
10
U507
AOZ8804DI
CH1
1
CH2
2
VN
3
CH3
4
CH4
5
NC
6
NC
7
VN
8
NC
9
NC
10
FB106
300R 0.2A
1 2
ZD504
NC/RLZ5.6B
D504
BAT54C
R574
10K
R522 100OHM
C511
220N16V
R538 47 OHM 1/16W
U510
AT2042K6-5.0TRG1
I/O 1
1
VSS
2
I/O 2
3
I/O 3
4
N/A
5
I/O 4
6
C508
100N 16V
R573
33K 1/16W
HDMI_+5V
+5V 2,4,5,6
HDMI_+5V
+5V
RXC+ 4
HDMI_+5V
RX1+ 4
RX1- 4
RXC- 4
DDC_WP 2,4
HDMI_CABLE_DET 4
RX2+ 4
HDMI_SCL 4
RX0- 4
HDMI_SDA 4
RX2- 4
HDMI_HPD 4
RX0+ 4
OEM MODEL Size
Rev
Date
Sheet of
TPV MODEL
PCB NAME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹 223V5 A
PHILIPS
B
3 6Thursday, February 26, 2015
715G7334M01BRA0040
<称爹>

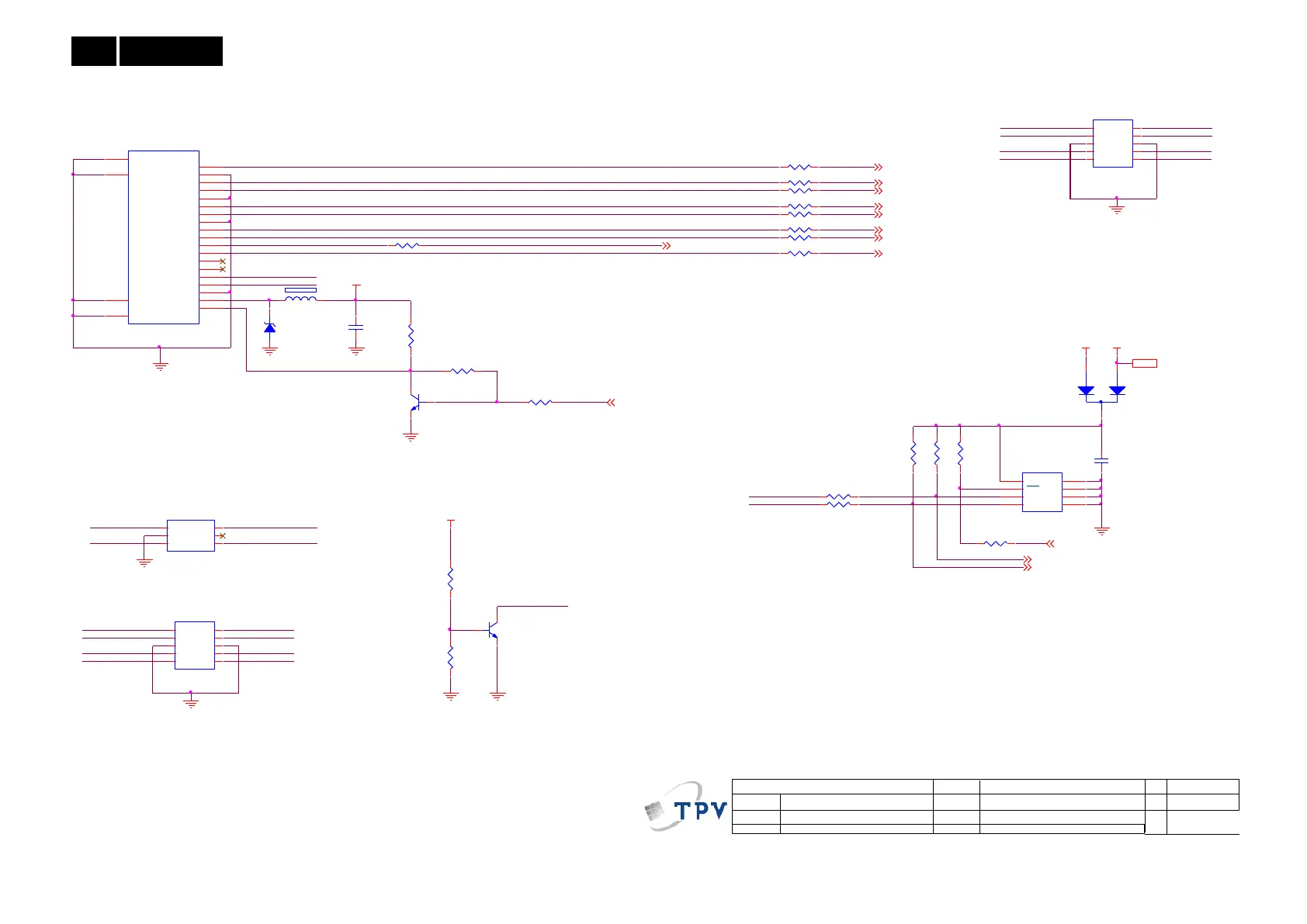

03 HDMI Input
715G7334M01BRA0040
CN502
HDMI
TH1
20
TH2
21
D2+
1
D2 Shield
2
D2-
3
D1+
4
D1 Shield
5
D1-
6
D0+
7
D0 Shield
8
D0-
9
CK+
10
CK Shield
11
CK-
12
CE Remote
13
NC
14
DDC CLK
15
DDC DATA
16
GND
17
+5V
18
HP DET
19
TH3
22
TH4
23
HDMI2/CK-
HDMI2/CK+
HDMI2/CK-
HDMI2/CK+
