Philips 223V5LSB/00 - Page 56

56
Meridian 5
CC170C
W8 LCD
C
C
715G6911M01003004C (for 223V5LSB)
Remark: Parts position can be searched by using FIND function in PDF.
R108
75 OHM 1/4W
R109
75 OHM 1/4W
DDC_WP
C119
100N 16V
SDA_VGA
D103
BAV99
3
1 2
SCL_VGA
R137 100R 1/10W 5%
R138
200R 1/10W 5%
R139
200R 1/10W 5%
RED-RED-
FB103 0R05 OHM
BLUE-BLUE-
GREEN-GREEN-
R140
200R 1/10W 5%
VSI
HSI
D104
BAV99
3
1 2
FB104 0R05 OHM
C120
100N 16V
SDA_VGA
RED+RED+
VGA5V
R118
4.7K1/16W
DET_VGA
C108
5PF 50V
C111 47N16V
GREEN+GREEN+
C107
5PF 50V
R119
4.7K1/16W
R122 100OHM
C102 47N16V
C110 47N16V
R117
2.2K1/16W
R121 100OHM
C104 47N16V
R116
2.2K1/16W
C106
5PF 50V
C109 47N16V
C105 47N16V
R120
22K1/16W
R103 470OHM1/16W C103 1N 50V
C114
22pF 50V
RED+
R114 1K
DET_VGA
D101
BAV70
3
1 2
ZD103 RLZ5.6B
BLUE+BLUE+
BLUE+
R115 1K
VSI
ZD104 RLZ5.6B
ZD105 RLZ5.6B
ZD106 RLZ5.6B
HSI
C113
22pF 50V
R141
100R 1/10W 5%
R102 100OHM
ZD101 RLZ6V2B
D105
BAV99
3
1 2
C101 NC/100N 16V
VGA5V
C121
100N 16V
+5V4,5
C115
220N16V
ZD107 RLZ5.6B
DDCA_SCL4
DDCA_SDA4
VGA5V
+5V
+5V
DDC_WP 4
VSYNC 4
HSYNC 4
DET_VGA1 4
GNDG 4
BIN 4
GNDR 4
SOG 4
GIN 4
RIN 4
GNDB 4
ぃ璶ゴヴ 钡
U103
FM24C02C-SO-T-G
A0
1
A1
2
A2
3
GND
4
SDA
5
SCL
6
WP
7
VCC
8
GREEN+
R105 100OHM
FB105 0R05 OHM
R111 100OHM
R107 100OHM
R112 100OHM
R113 100OHM
R110
75 OHM 1/4W
CN103
NC/DB15
1
7
2
8
3
9
4
10
5
11
12
13
14
15
1716
6
OEM MODEL Size
Rev
Date
Sheet of
TPV MODEL
PCB NAME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹 E2470SWD A
AOC
B
2 6Sunday, February 01, 2015
<称爹>

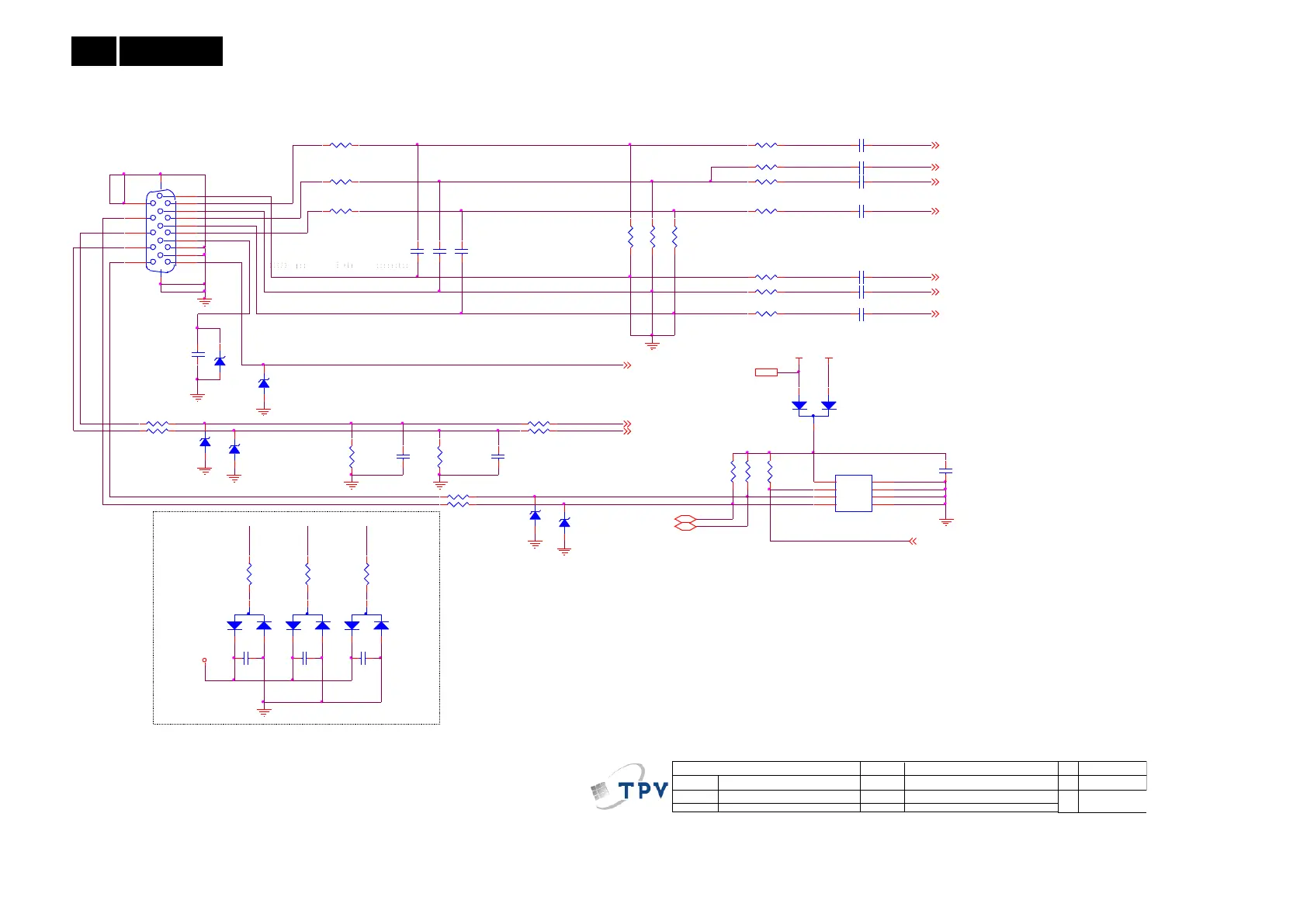

02.INPUT VGA
715G5863-M0C-000-0040
