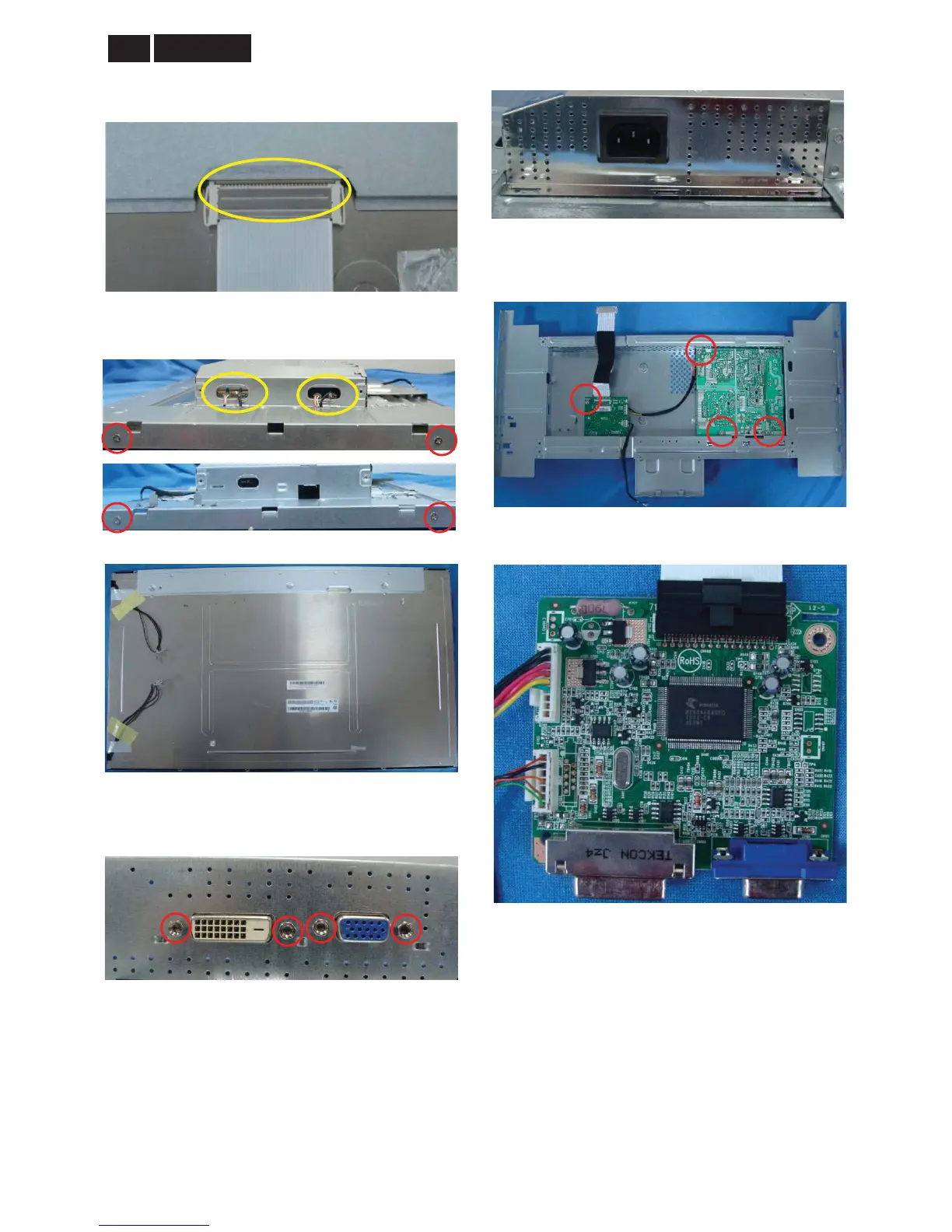

Step 4: Remove the mainframe
1. Disconnect the FFC cable.
2. Disconnect four connectors and four screws
Step 5: Remove the boards
1. Remove the four screws that secure the connectors.
2. Remove the Mainframe shielding.
3. Remove the four screws to remove the power board
and scaler board from the main frame.
4. Disconnect all the connectors.
