Content protection:
¾ According to High-Definition Content Protection (HDCP) Specification 1.10.
¾ HDMI video input should support timing defined in CEA 861-D specification with extended EDID
blocks
Video Timing Support:
Format Resolution Type Vertical frequency
480i 720 x 480 SD 60Hz
480p 720 x 480 SD 60Hz
576i 720 x 576 SD 50Hz
576p 720 x 576 SD 50Hz
720p 1280 x 720 HD 50Hz , 60Hz
1080i 1920 x 1080 HD 50Hz , 60Hz

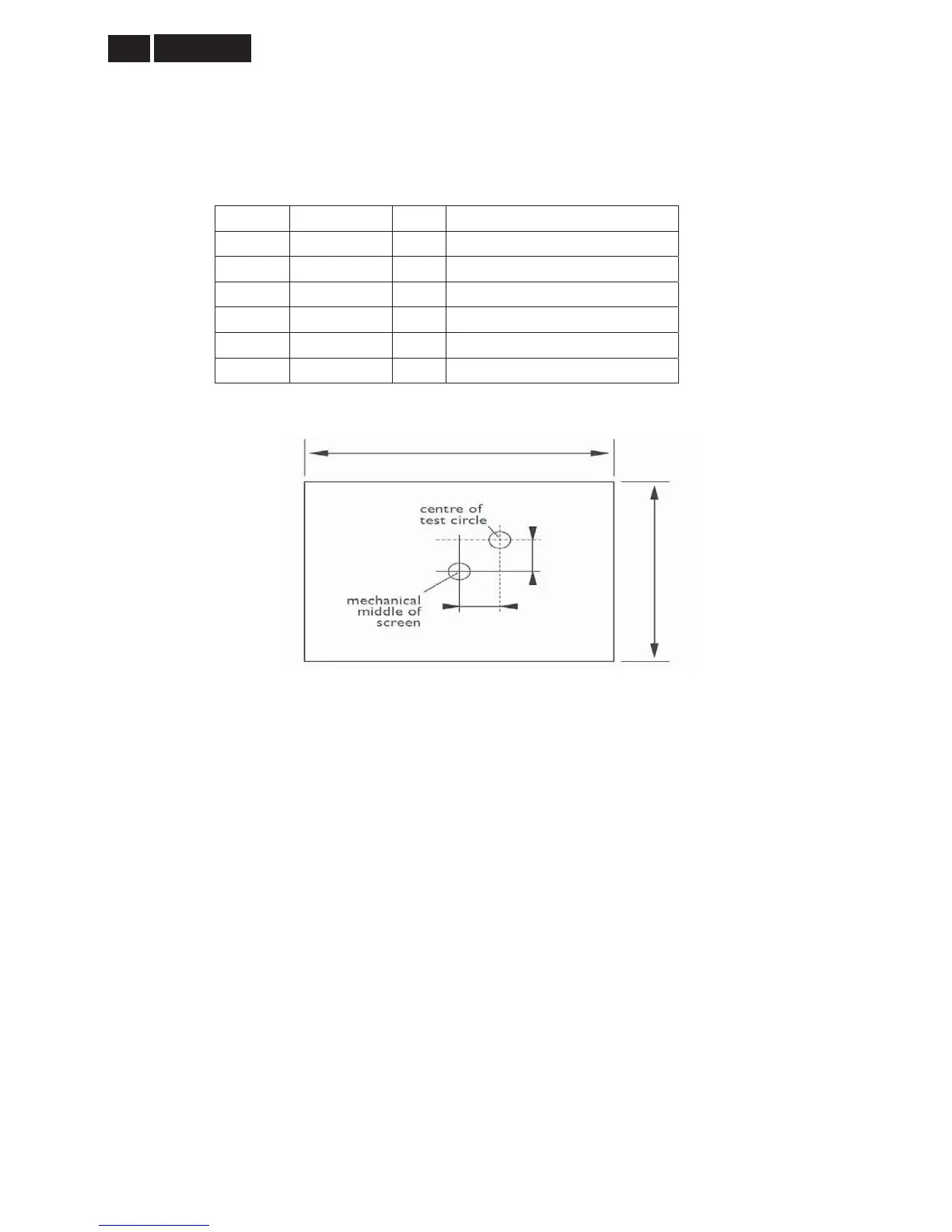

Picture centering - H & V 0.5 % (for TV, 480i/p, 576i/p, 720p, 1080i/p)
Over Scan -
1. RGB signal: OFF (no this function)
2. YUV signal: (Video timing) ON (Be use and set ON/OFF, but only 1080p define is OFF)
PC timing: to follow PC timing table
(TMDS Signal)
Termination Supply Voltage AVCC : 3.3V±5%
Differential Voltage Level : 150mV – 1200mV
Common Mode Voltage : (AVCC – 300mV) – (AVCC – 37.5mV)
Differential Sensitivity : 150mVp-p
Maximum differential Voltage : 1560mVp-p
(+5V Power)
Power Supply Voltage : 4.7V – 5.3V
Maximum Current Consumption : 50mA
(DDC Signal)
Maximum Capacitance : 50pF
(HPD Signal)
High Voltage Level : 2.4V – 5.0V
Low Voltage Level : 0 – 0.4V
Output Resistance : 1Kȍ±20%
