Philips 32PFL3403D/85 - Wiring Diagram 42 & 47 (ME8;MG8)

34LC8.1U LA 6.
Block Diagrams, Test Point Overview, and Waveforms

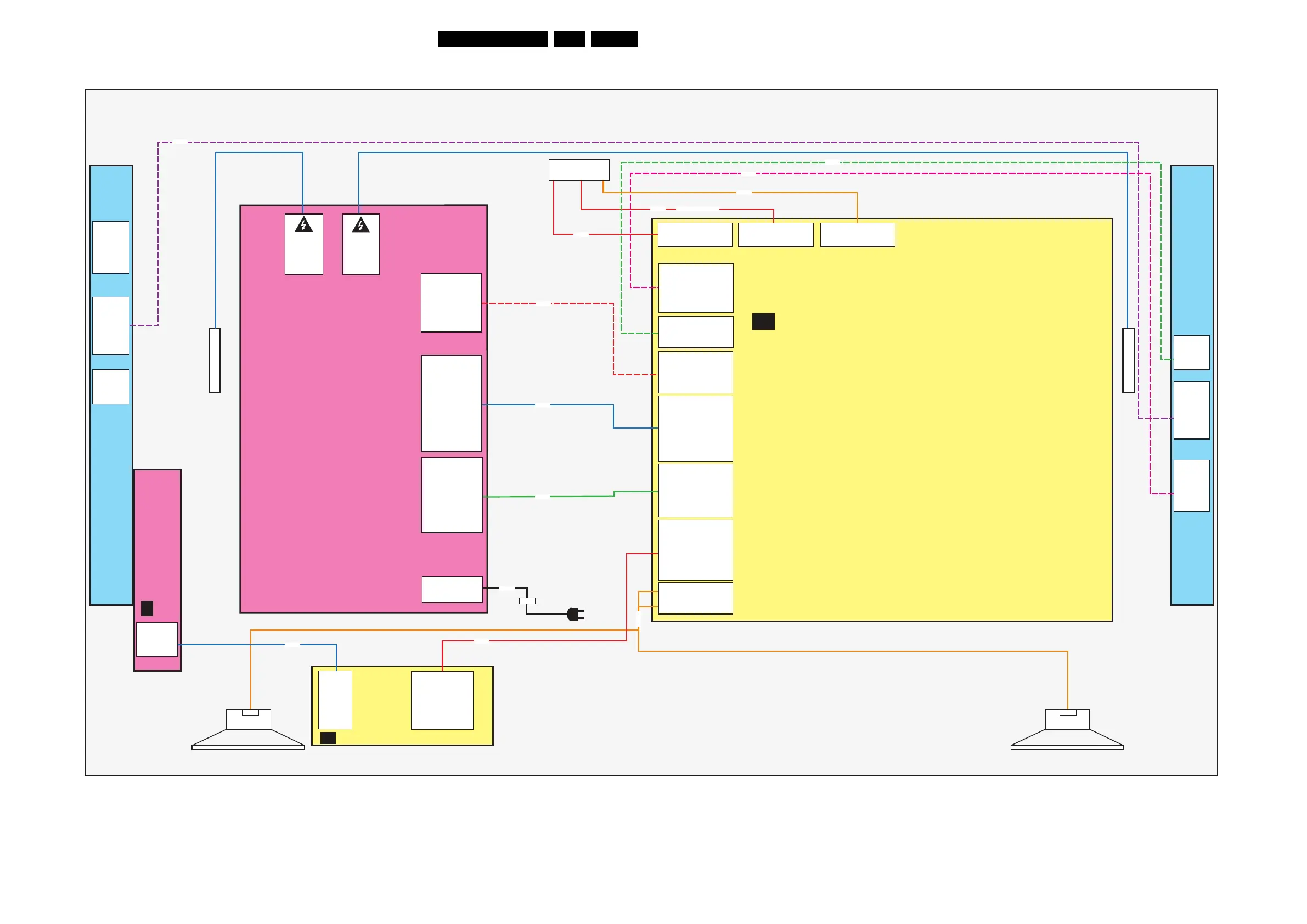

Wiring Diagram 42" & 47" (ME8/MG8)
*AMBI-LIGHT UNIT
(IN BACK COVER)
(1175)
INLET
RIGHT SPEAKER
LEFT SPEAKER
TO BACKLIGHT
H_17740_056.eps
240108
LCD DISPLAY (1004)
8101
MAIN POWER SUPPLY
(1005)
8102
8301
8C02
1102 (B1)
8. ANA-DIG_DIM_SELECT
7. BACKLIGHT_BOOST
6. PWM_DIMMING
5. BACKLIGHT_ON_OFF
4. GND
3. GND
2. +12Vdisp
1. +12Vdisp
1101 (B1)
11. -12VAudio
10. GNDSND
9. +12VAudio
7. +12VS
6. +12VS
5. GND
4. GND
3. GND
2. STANDBY
1. +3V3STBY
CN6
1. 3V3ST
2. Standby
3. GND
4. GND
5. GND
6. 12Vssb
7. 12Vssb
8. 12Vssb
9. +12Vaud
10. GND_aud
11. -12Vaud
CN7
1. 12Vssb
2. 12Vssb
3. GND
4. GND
5. INV-ON
6. DIM
7. BOOST
8. GND
CN4
1. 24Vamb
2. GND
3. 24Vamb
4. GND
5. 24Vamb
6. GND
1C02 (B4C)
9. KEYBOARD
8. +5V_SW
7. KEYBOARD
6. LED1
5. +3V3STBY
4. LED2
3. IR
2. GND
1. LIGHT_SENSOR
1301 (B3)
4. RIGHT+
3. GND
2. GND
1. LEFT-
1P10 1. LIGHT-SENSOR 2. GNDSND 3. RC 4. LED2 5. +3V3-STANDBY 6. LED1 7. KEYBOARD 8. +5V 9. KEYBOARD
1P11 1. GND 2. KEYBOARD 3. +3V3STBY 4. TACT_SWITCH_INT
CN1
1. N
2. L
1K03 (B6K)
6. GND_24V
5. +24V_BOLT-ON
4. GND_24V
3. +24V_BOLT-ON
2. GND_24V
1. +24V_BOLT-ON
*AMBI-LIGHT UNIT
(IN BACK COVER)
(1175)
8408
J4
8. I2C SEL2
7. 3.3V
6. GND
5. S-SDA
4. S-SCL
3. GND
2. +24V
1. +24V
J2
7. GND
6. 3.3V
5. I2C SEL2
4. I2C SEL1
3. S-SDA
2. GND
1. S-SCL
J1
4. GND
3. +24V
2. GND
1. +24V
J4
1. +24V
2. +24V
3. GND
4. S-SCL
5. S-SDA
6. GND
7. 3.3V
8. I2C SEL2
J2
1. S-SCL
2. GND
3. S-SDA
4. I2C SEL1
5. I2C SEL2
6. 3.3V
7. GND
J1
1. +24V
2. GND
3. +24V
4. GND
TO BACKLIGHT
WIRING DIAGRAM 42”- 47” (STYLING ME8/MG8)
1D03 (B4D)
51P
LVDS INPUT
41/51P
8K05
8D02
CN2 1. HV1 2. N.C. 3. HV1
DANGEROUS
HIGH VOLTAGE
CN3 1. HV2 2. N.C. 3. HV2
DANGEROUS
HIGH VOLTAGE
IR LED PANEL
(1112)
(5215) TWEETER
(5211) WOOFER IN BACK COVER
(5215) TWEETER
(5212) WOOFER IN BACK COVER
* AMBI-LIGHT UNITS ARE OPTIONAL
J
CONTROL BOARD TACT SW (0025)
1N10
1. GND
2. KEYBOARD
3. +3V3STBY
4. INTERRUPT
E
SSB
(1150)
B
+ -
+ -
1K04 (B6K)
4. GND_24V
3. +24V_BOLT-ON
2. GND_24V
1. +24V_BOLT-ON
1K01 (B6K)
7. GND
6. +3V3_SW
5. +3V3_FPGA
4. GND
3. AMBI_SDA
2. GND
1. AMBI_SCL
8K04
8K01
8K03
1D02 (B4D)
41P
1D01 (B4D)
41P
8D03
Only for 100/120Hz
8D01
8N10
