Mechanical Instructions
EN 8 LC8.1U LA4.
4. Mechanical Instructions
Index of this chapter:
4.1 Cable Dressing
4.2 Service Positions
4.3 Assy/Panel Removal ME8 Styling
4.4 Set Re-assembly
Notes:
• Figures below can deviate slightly from the actual situation,
due to the different set executions.
• Follow the disassemble instructions in described order.
• Please pay special attention to the speaker wires when re-
assembling the set. Place the cable tapes as shown in next
figures.
4.1 Cable Dressing

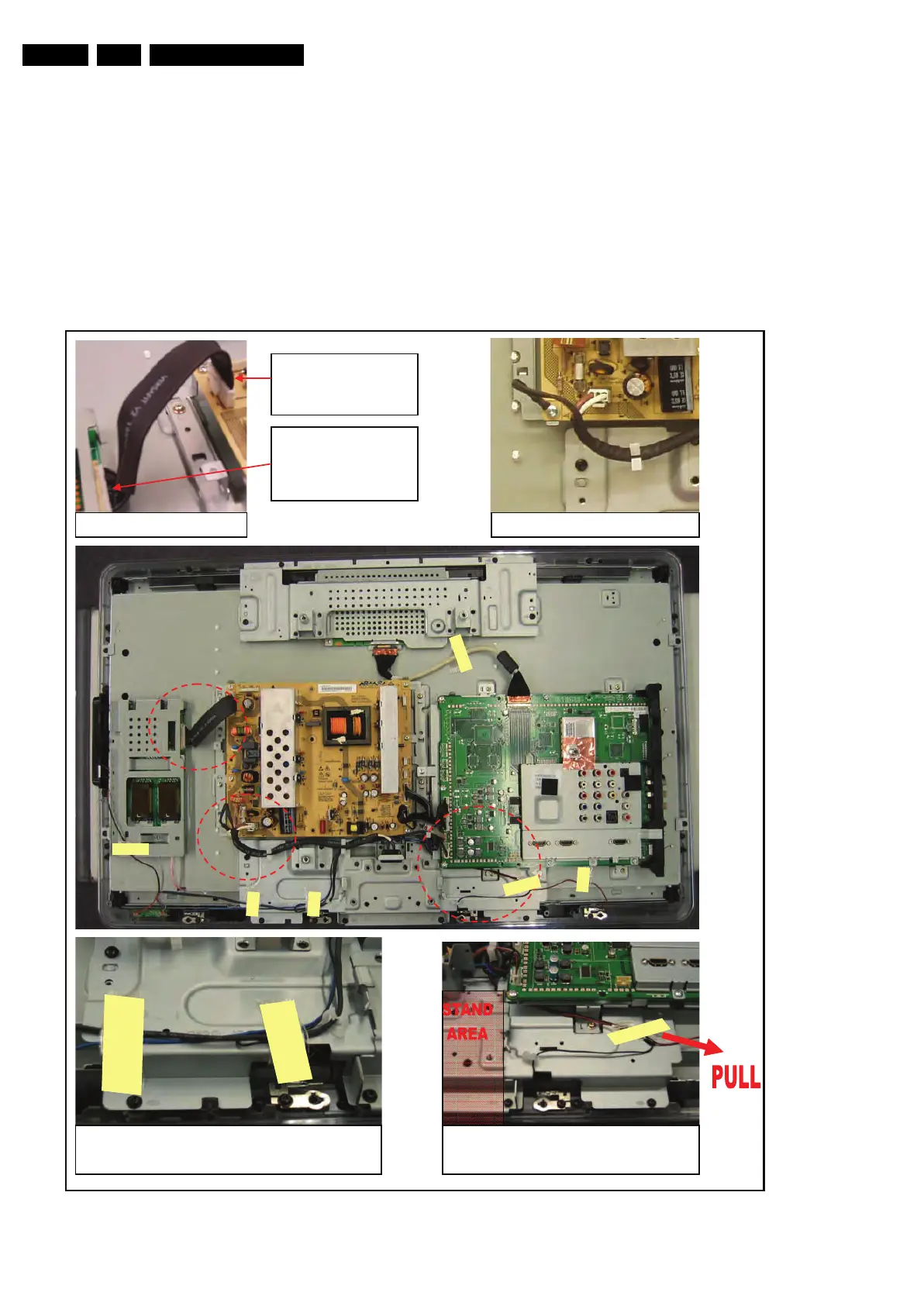

Figure 4-1 Cable dressing (32" models, ME8 styling)
CONNECTOR WITH
LOCK INSERTED
TO PSU
CONNECTOR
WITHOUT LOCK
INSERTED TO
PANEL
Speaker cable dressing: Pull cable taut
underneath SSB Plate before taping to
keep out of stand area
Inverter Cable AC Mains Cable
Speaker and IR cable dressing: Tape to keep out of
speaker terminals
I_17741_009.eps
280408
