Mechanical Instructions
EN 9LC8.1U LA 4.

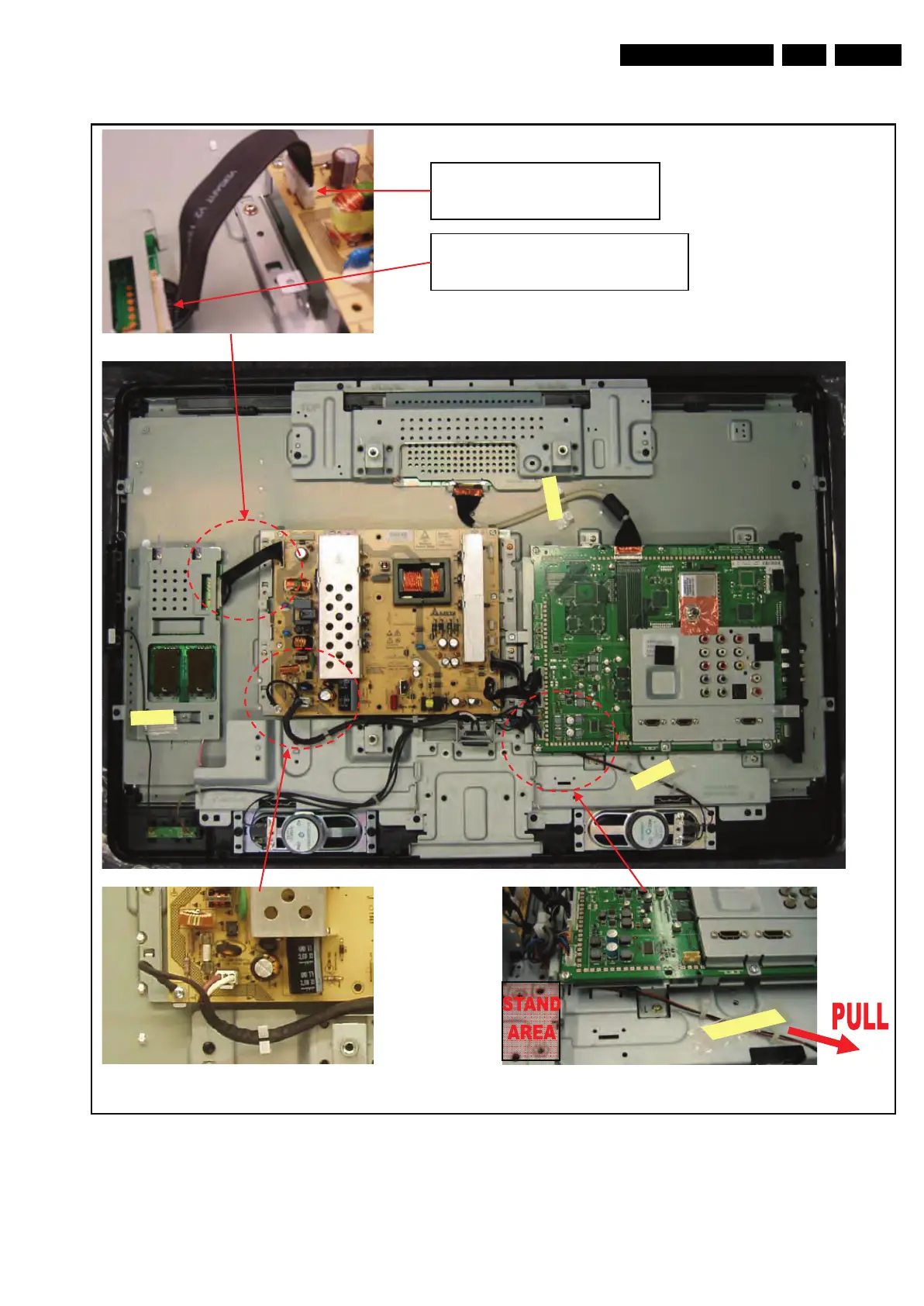

Figure 4-2 Cable dressing (32" models, MG8 styling)
AC Mains Shield wire to be grounded to Detailed view of speaker cable dressing:
bottom corner of PSU with screw Pull cable taut underneath SSB Plate before
CONNECTOR WITH LOCK
INSERTED TO PSU
CONNECTOR WITHOUT LOCK
INSERTED TO PANEL
I_17741_008.eps
240408
