Philips 32PFL3403D/85 - Wiring Diagram 52 (ME8;MG8)

Block Diagrams, Test Point Overview, and Waveforms
35LC8.1U LA 6.

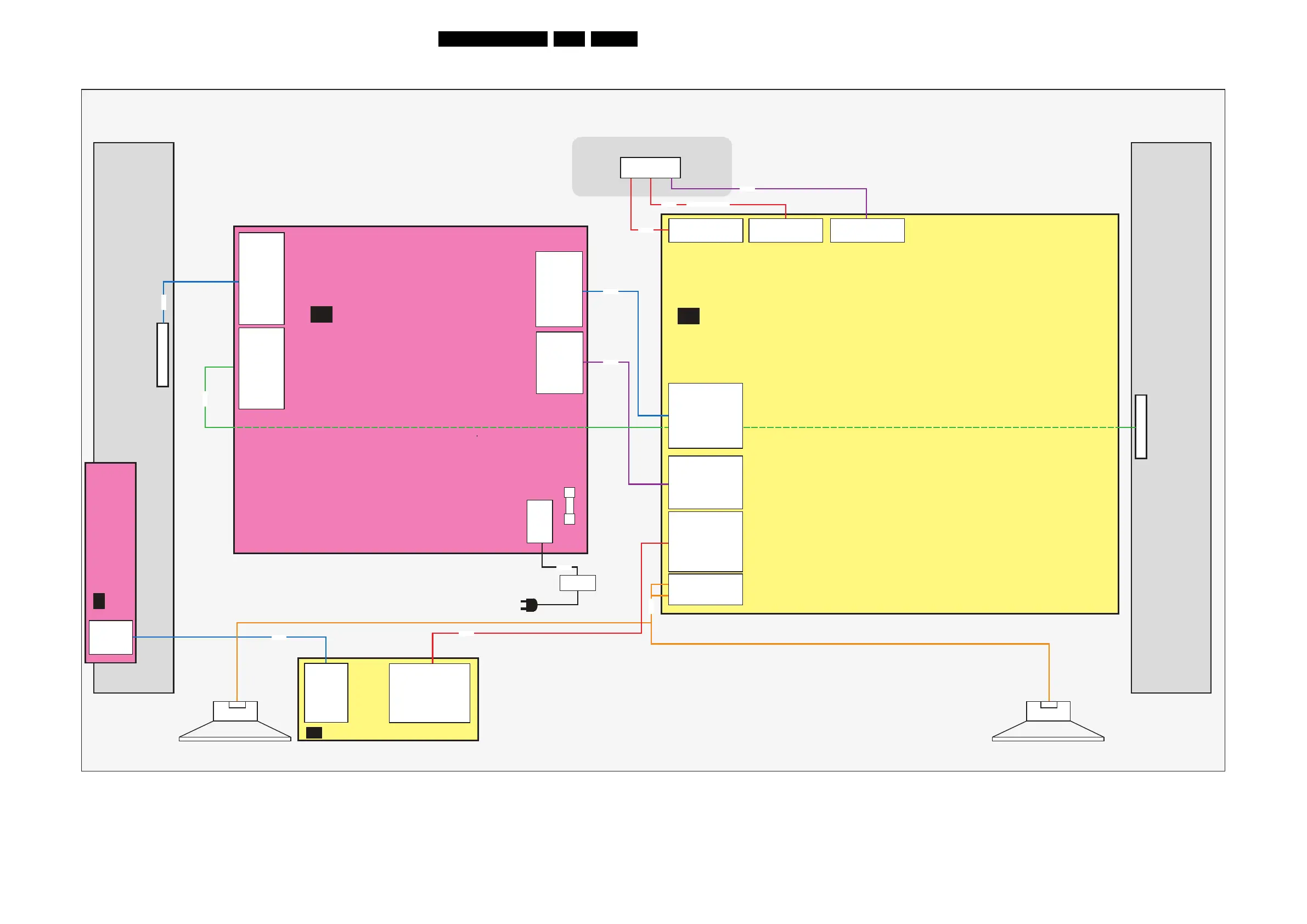

Wiring Diagram 52" (ME8/MG8)
RIGHT SPEAKER
LEFT SPEAKER
14P
I_17741_006.eps
240408
8N10
LCD DISPLAY (1004)
8101
8418
8102
8301
8C02
1P10 1. LIGHT-SENSOR 2. GNDSND 3. RC 4. LED2 5. +3V3-STANDBY 6. LED1 7. KEYBOARD 8. +5V 9. KEYBOARD
1P11 1. GND 2. KEYBOARD 3. +3V3STBY 4. TACT_SWITCH_INT
CN1 / 1308 2. L 1. N
J1
1. GND
2. KEYBOARD
3. +3V3STBY
4. INTERRUPT
8408
IR LED PANEL
(1112)
J
KEYBOARD CONTROL PANEL (0025)
E
SSB
(1150)
B
+ -
+ -
INVERTER INVERTER
INLET
A
MAIN POWER SUPPLY
(1005)
CN2 / 1319
14. PDIM_Select
13. PWM
12. On/Off
11. Vbri
10. GND3
9. GND3
8. GND3
7. GND3
6. GND3
5. 24Vinv
4. 24Vinv
3. 24Vinv
2. 24Vinv
1. 24Vinv
CN3 / 1316
12. N.C.
11. N.C.
10. GND3
9. GND3
8. GND3
7. GND3
6. GND3
5. 24Vinv
4. 24Vinv
3. 24Vinv
2. 24Vinv
1. 24Vinv
CN6 / 1M95
1. 3V3 stdby
2. Standby
3. GND1
4. GND1
5. GND1
6. +12V
7. +12V
8. +12V
9. +12V (audio)
10. GND2 (audio)
11. -12V (audio)
CN7 / 1M99
1. +12V
2. +12V
3. GND1
4. GND1
5. BL_ON_OFF
6. DIM
7. Boost
8. ANALOG/PWM
dimming
WIRING 52" (STYLING ME8/MG8)
T 8AH 250V
F1
1102 (B1)
8. ANA-DIG_DIM_SELECT
7. BACKLIGHT_BOOST
6. PWM_DIMMING
5. BACKLIGHT_ON_OFF
4. GND
3. GND
2. +12Vdisp
1. +12Vdisp
1C02 (B4C)
9. KEYBOARD
8. +5V_SW
7. KEYBOARD
6. LED1
5. +3V3STBY
4. LED2
3. IR
2. GND
1. LIGHT_SENSOR
1301 (B3)
4. RIGHT+
3. GND
2. GND
1. LEFT-
12P
1101 (B1)
11. -12VAudio
10. GNDSND
9. +12VAudio
7. +12VS
6. +12VS
5. GND
4. GND
3. GND
2. STANDBY
1. +3V3STBY
8419
1D03 (B4D)
51P
LVDS INPUT
41/51P
8D02
1D02 (B4D)
41P
1D01 (B4D)
41P
8D03
Only for 100/120Hz
8D01
ME8 (5215) TWEETER (5211) WOOFER IN BACK COVER
MG8 (5211)
ME8 (5215) TWEETER (5212) WOOFER IN BACK COVER
MG8 (5211)
