Circuit Descriptions, Abbreviation List, and IC Data Sheets
EN 83LC8.1U LA 9.
9.6 Audio Processing
Both audio and video signals are processed by the MT5382
audio/video processor. Refer to diagram B4 for details.
For the audio processing inside the audio/video processor,
refer to figure “Functional blocks audio processing MT5382
audio/video processor” for details.

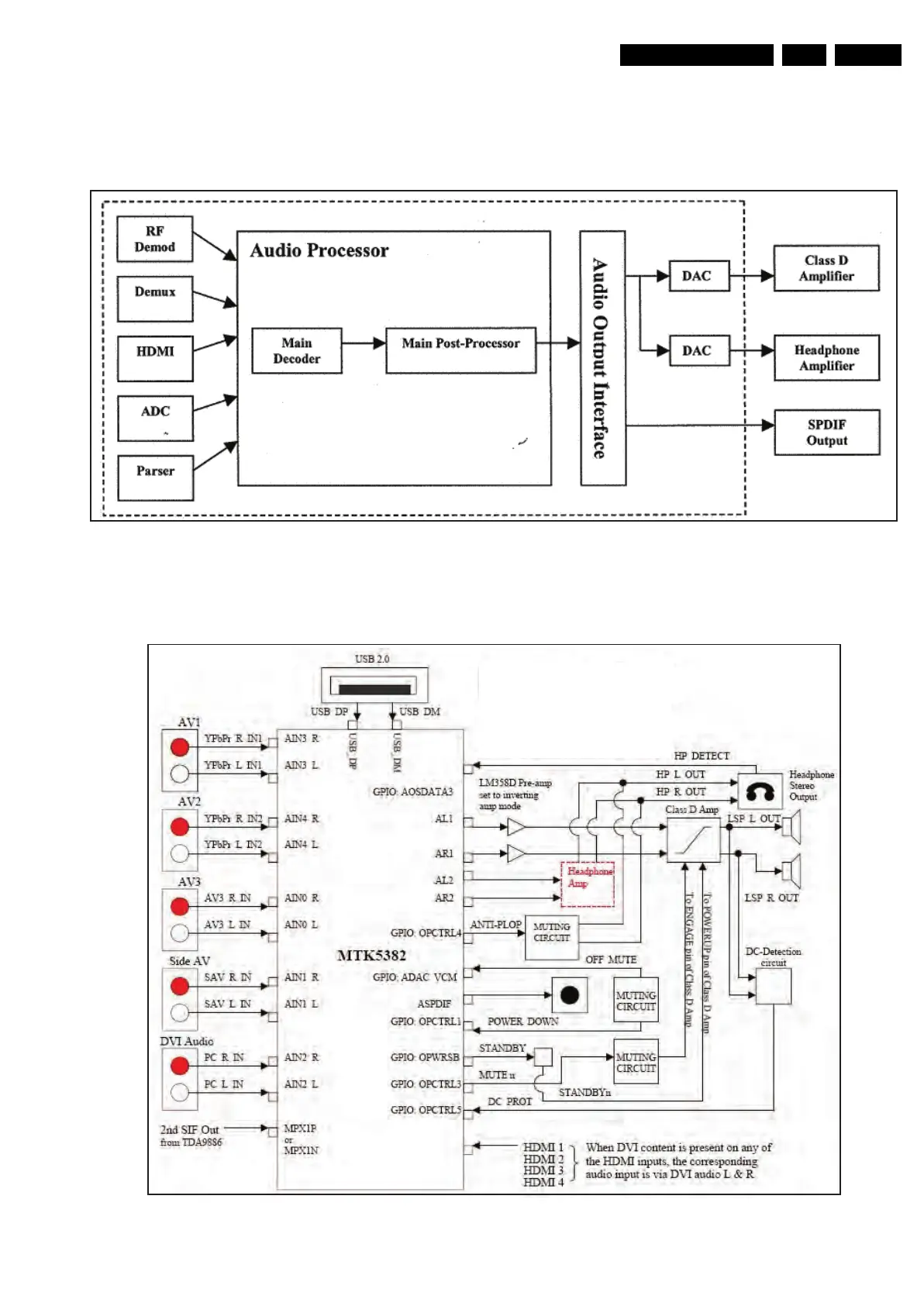

Figure 9-7 Functional blocks audio processing MT5382 audio/video processing
For the implementation of the MT5382 audio/video processor
for audio processing, refer to figure “Audio processing”.
Figure 9-8 Audio processing
H_17740_050.eps
250108
H_17740_051.eps
250108
