Philips 32PFL5604/78 - Page 3

Technical Specifications and Connections
EN 3TCM3.2L LA 2.
2009-Jun-19
2.3.1 Side connections
Note: The following connector color abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy=
Grey, Rd= Red, Wh= White, and Ye= Yellow.
USB2.0

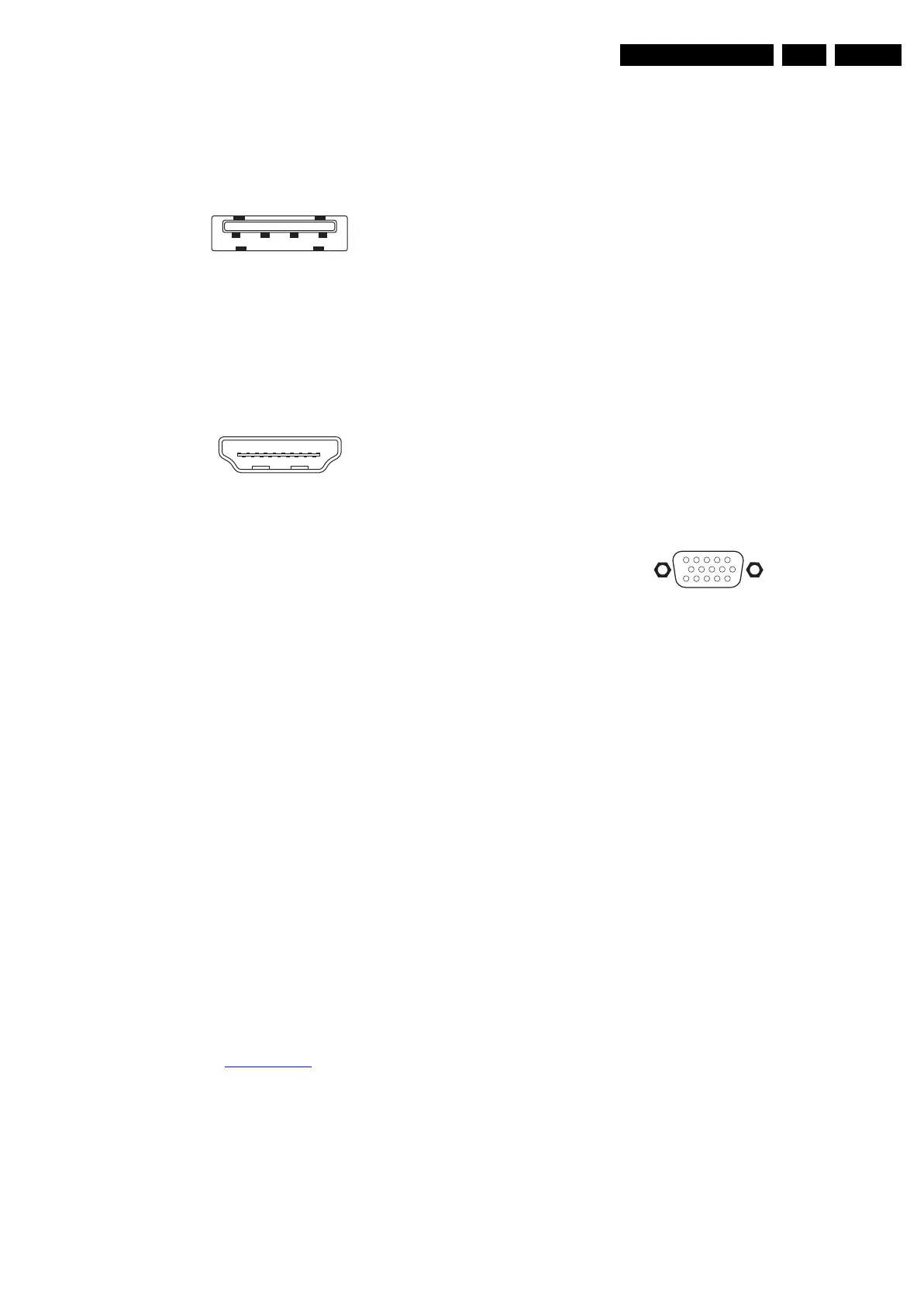

Figure 2-2 USB (type A)
1-+5V k
2 - Data (-) jk
3 - Data (+) jk
4 - Ground Gnd H
HDMI: Digital Video, Digital Audio - In
Figure 2-3 HDMI (type A) connector
1 - D2+ Data channel j
2 - Shield Gnd H
3 - D2- Data channel j
4 - D1+ Data channel j
5 - Shield Gnd H
6 - D1- Data channel j
7 - D0+ Data channel j
8 - Shield Gnd H
9 - D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - Easylink/CEC Control channel jk
14 - n.c.
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H
Cinch: Video CVBS - In, Audio - In
Ye - Video CVBS 1 V
PP
/ 75 Ω jq
Wh - Audio L 0.5 V
RMS
/ 10 kΩ jq
Rd - Audio R 0.5 V
RMS
/ 10 kΩ jq
Mini Jack: Audio Head phone - Out
Bk - Head phone 32 - 600 Ω / 10 mW ot
2.3.2 Rear Connections
HDMI 1 & 2: Digital Video, Digital Audio - In
(see HDMI - Side Connections)
CVI-1&2: Cinch: Video YPbPr - In, Audio - In
Gn - Video Y 1 V
PP
/ 75 Ω jq
Bu - Video Pb 0.7 V
PP
/ 75 Ω jq
Rd - Video Pr 0.7 V
PP
/ 75 Ω jq
Wh - Audio L 0.5 V
RMS
/ 10 kΩ jq
Rd - Audio R 0.5 V
RMS
/ 10 kΩ jq
AV-In: Cinch: Video CVBS - In, Audio - In
Ye - Video CVBS 1 V
PP
/ 75 Ω jq
Wh - Audio L 0.5 V
RMS
/ 10 kΩ jq
Rd - Audio R 0.5 V
RMS
/ 10 kΩ jq
AV-Out: Cinch: Video CVBS - Out, Audio - Out
Ye - Video CVBS 1 V
PP
/ 75 Ω kq
Wh - Audio L 0.5 V
RMS
/10 kΩ kq
Rd - Audio R 0.5 V
RMS
/ 10 kΩ kq
Mini Jack: Service Connector (UART)
1 - Ground Gnd H
2 - UART_TX Transmit k
3 - UART_RX Receive j
VGA/PC: Video RGB - In
Figure 2-4 VGA Connector
1 - Video Red 0.7 V
PP
/ 75 Ω j
2 - Video Green 0.7 V
PP
/ 75 Ω j
3 - Video Blue 0.7 V
PP
/ 75 Ω j
4-n.c.
5 - Ground Gnd H
6 - Ground Red Gnd H
7 - Ground Green Gnd H
8 - Ground Blue Gnd H
9-+5V
DC
+5 V j
10 - Ground Sync Gnd H
11 - n.c.
12 - DDC_SDA DDC data j
13 - H-sync 0 - 5 V j
14 - V-sync 0 - 5 V j
15 - DDC_SCL DDC clock j
PC Audio: Mini Jack: VGA Audio - In
Bk - Audio L/R 0.5 V
RMS
/ 10 kΩ jq
Aerial - In
- - IEC-type (EU) Coax, 75 Ω D
2.4 Chassis Overview
Refer to chapter Block Diagrams for PWB locations.
1 2 3 4
E_06532_022.eps
300904
19
1
18 2
E_06532_017.eps
250505
1
6
10
11
5
15
E_06532_002.eps
171108
