Philips 32PFL5604/78 - Circuit Diagrams and PWB Layouts; Main Power Supply (32)

EN 40TCM3.2L LA 10.
Circuit Diagrams and PWB Layouts
2009-Jun-19
10. Circuit Diagrams and PWB Layouts
Main Power Supply (32")
A
3 21
F
E
D
C
B
8 765
5
4 3 21
F
E
D
C
B
A
4678
A1

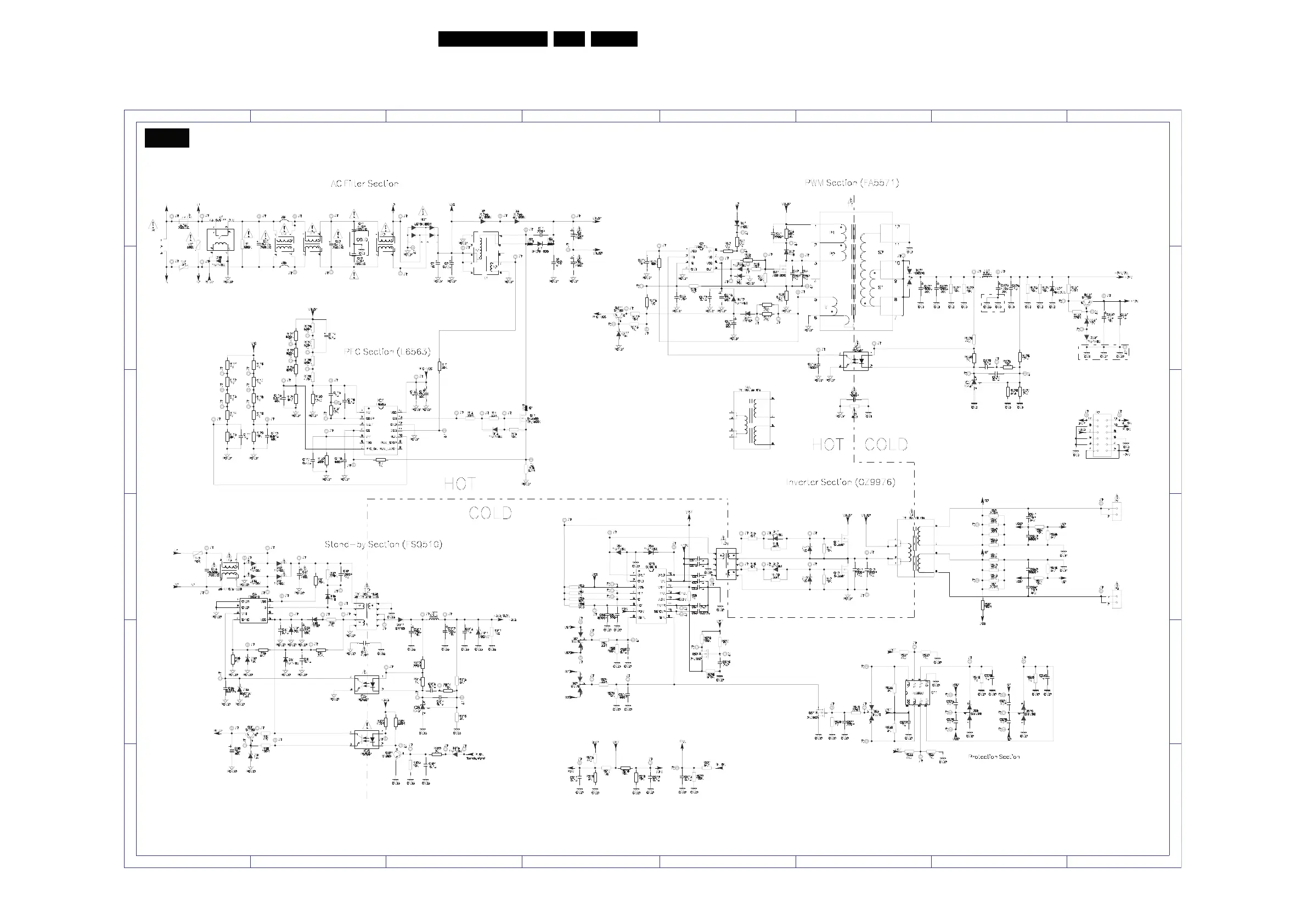

Power Supply Unit (32" Full HD)
18520_541_090313.eps
090313
