Philips 32PFS6402/12 - 6.4 Front-End Analogue and DVB-T;T2, DVB-C; DVB S;S2, ISDB-T reception

6.4 Front-End Analogue and DVB-T/T2, DVB-C; DVB S/S2, ISDB-T reception
6.4.1 DTB-T/T2 part
Front-End for analogue tuner consist of the following key components:
• TUNER EUROPE TDSY-G480D
• SCALER MT5593FPIJ HSBGA-900 Processor

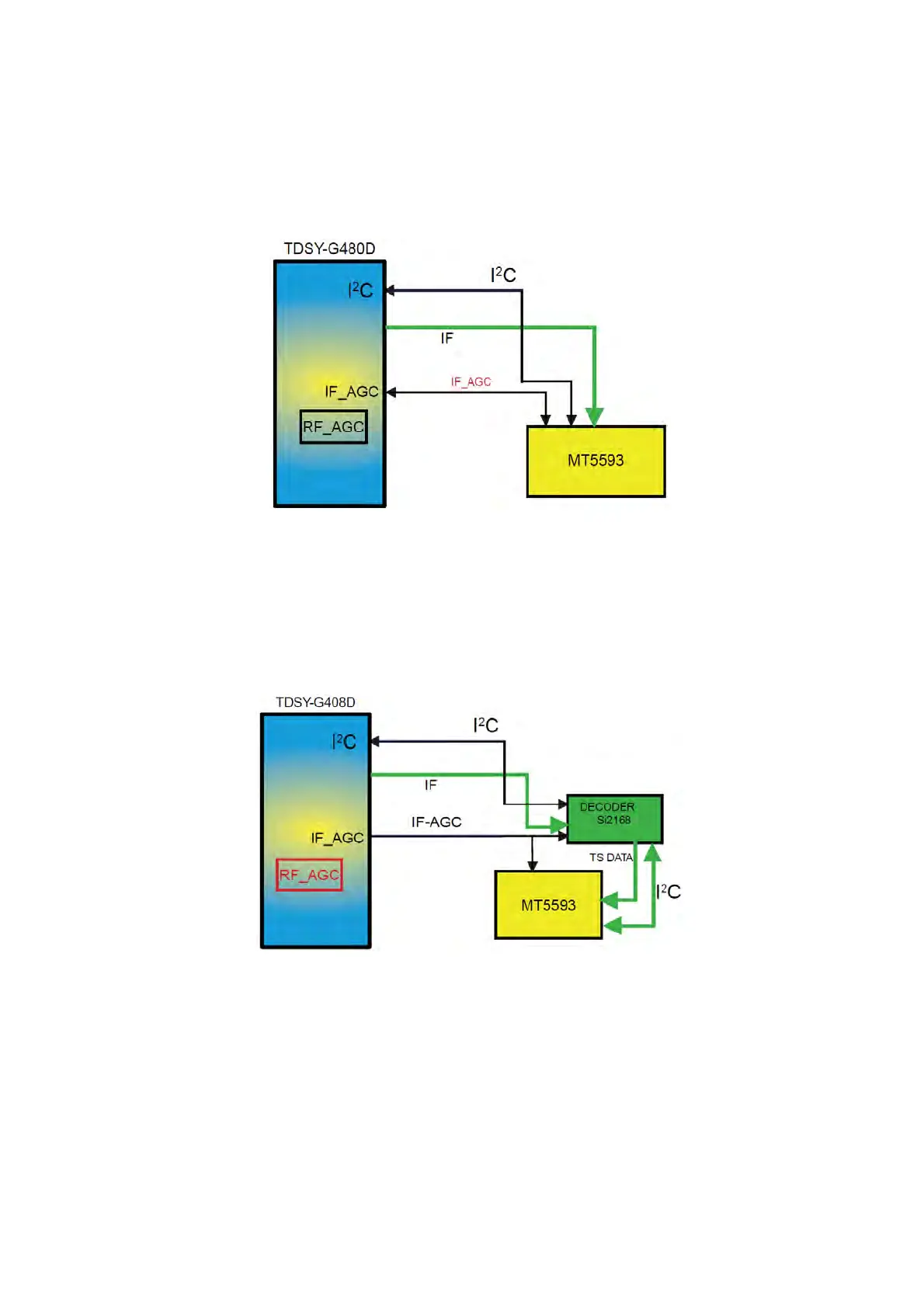

Below find a block diagram of the front-end application for analogue part..
Front-End Analogue block diagram
6.4.1 DTV T2 reception
The Front-End for DVT part consist of the following key components:
• TUNER EUROPE TDSY-G480D
• SCALER MT5593FPIJ HSBGA-900 Processor
• DEMODULATOR Si2168-C50-GMR QFN-48
Below find a block diagram of the front-end application for DTV part.
Front-End DVB-T2 DTV block diagram
6.4.2 Front-End DTV-S2 reception
The Front-End for ISTB part consist of the following key components:
• TUNER EUROPE TDQS-A701F
• SCALER MT5593FPIJ HSBGA-900 Processor
• DEMODULATOR Si2166-C50-GMR QFN48
Below find a block diagram of the front-end application for DTV part.
