Philips 32PHT4131/12 - Rear Cover Removal

Mechanical Instructions
EN 16 TPN16.3E LA4.
2016-Oct-28
back to
div. table
4.4.2 Rear Cover
Refer to Figure 4-12
for details.
Warning: Disconnect the mains power cord before removing
the rear cover.
1. At the indicated areas [5] the cover is securd by clips. Be
very careful with releasing those.
2. Gently lift the rear cover from the TV. Make sure that wires
and cables are not damaged while lifting the rear cover
from the set.

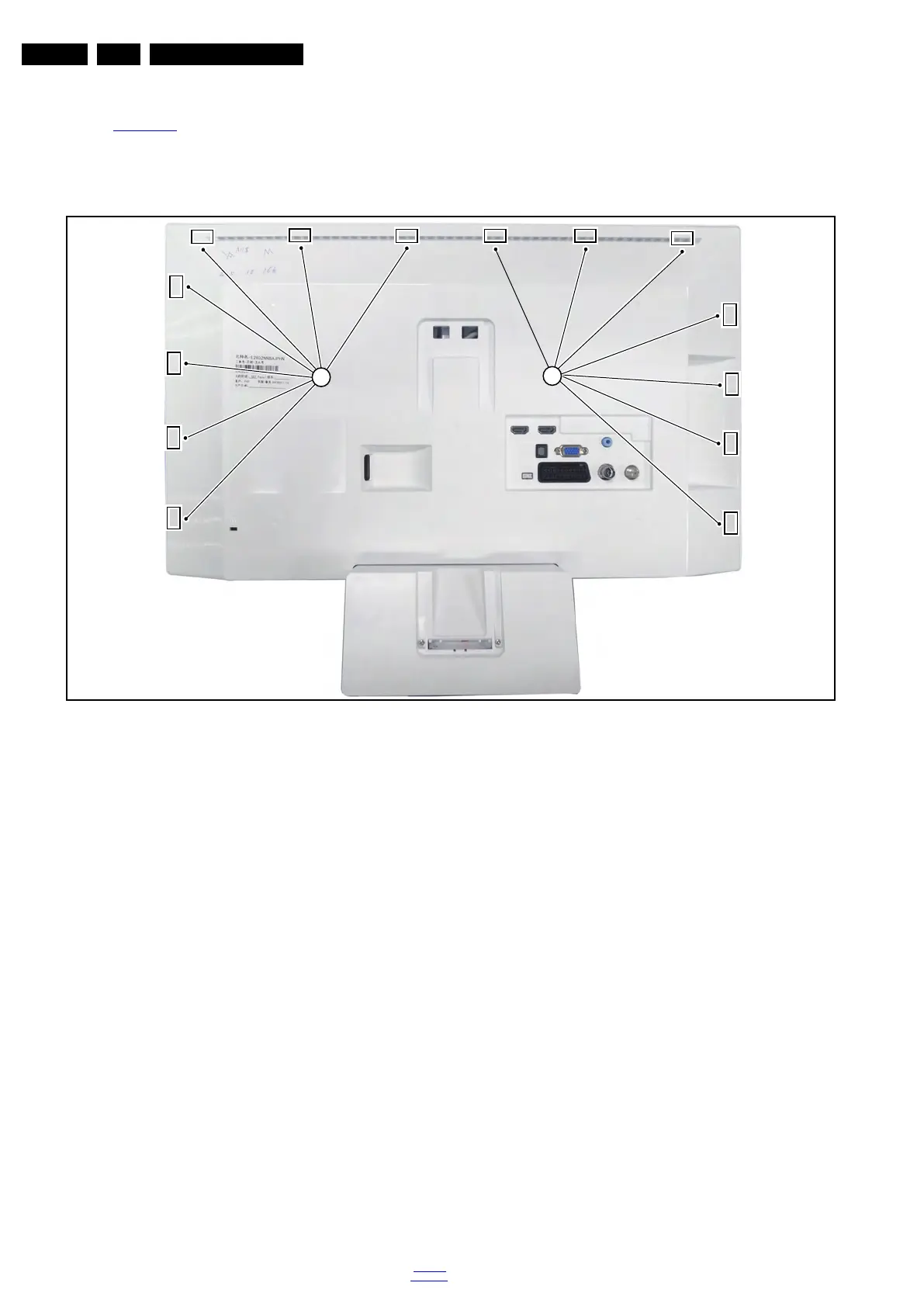

Figure 4-12 Rear cover removal
20100_102.eps
5
5
