Philips 32PHT4131/12 - Keyboard Control Unit; Keyboard Removal

Mechanical Instructions
EN 19TPN16.3E LA 4.
2016-Oct-28
back to
div. table
4.5.2 Rear Cover
Refer to Figure 4-17
for details.
Warning: The Keyboard catch on the Back cover, disconnect
the Keyboard cord before removing the rear cove.
1. Remove the fixation screws [2] and [3] that secure the rear
cover. Refer to Figure 4-17
for details.
2. Gently lift the rear cover from the TV. Make sure that wires
and cables are not damaged while lifting the rear cover
from the set.

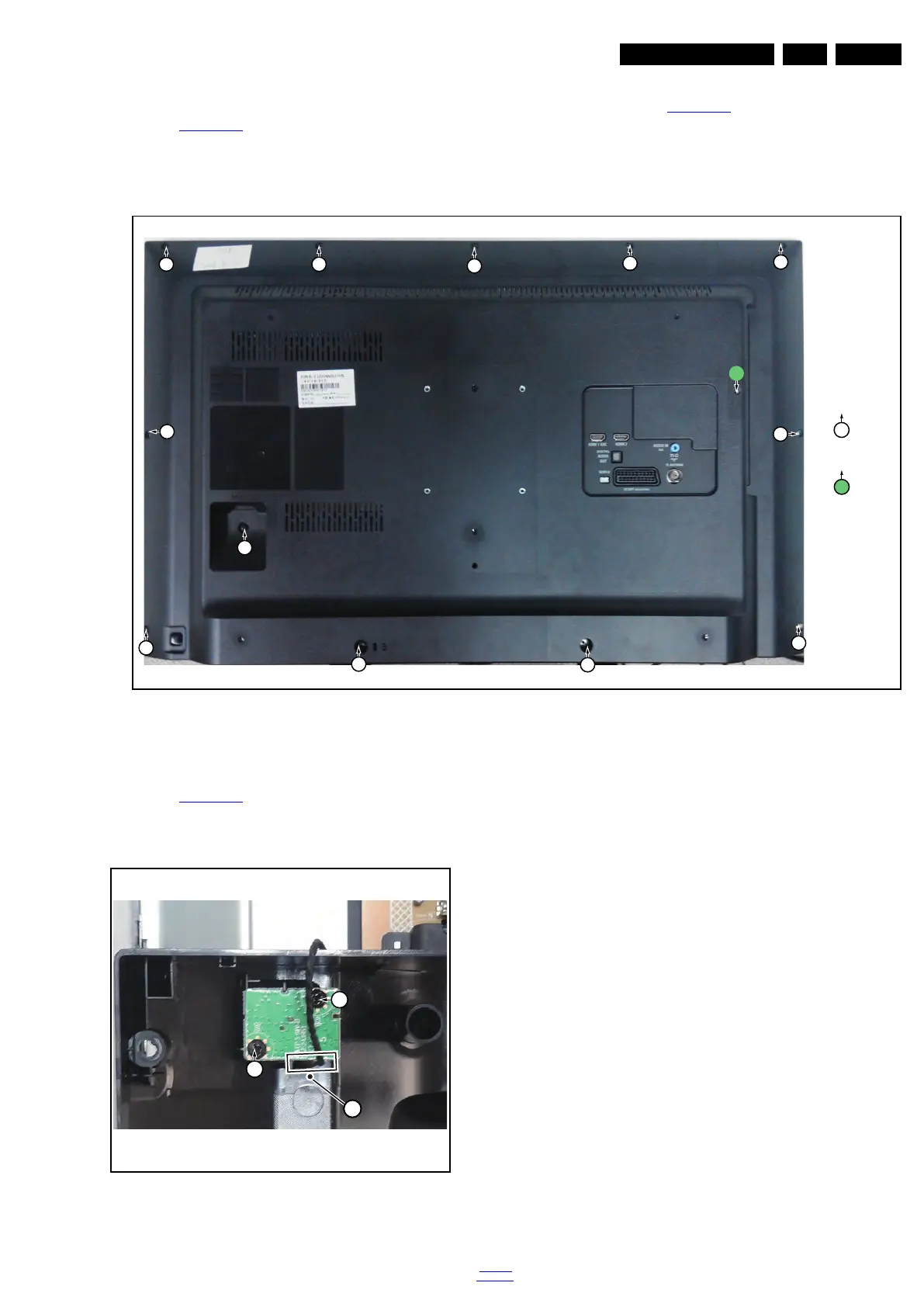

Figure 4-17 Rear cover removal
4.5.3 Keyboard Control unit
Refer to Figure 4-18
for details.
1. Unplug the connector[2] from the keyboard control panel.
2. Remove all the fixation screws from the keyboard [1].
When defective, replace the whole unit.
Figure 4-18 Keyboard removal
20210_111.eps
2
2
2
2
2
2
2
2
2
2
2
2
3
M3× 8
2
M3× 6
3
20210_112.eps
1
1
2
