Mechanical Instructions
EN 9TPN16.3E LA 4.
2016-Oct-28
back to
div. table
4. Mechanical Instructions
Index of this chapter:
4.1 Cable Dressing
4.2 Service Positions
4.3 Assembly/Panel Removal ( for 22"/24"4031 series)
4.4 Assembly/Panel Removal (for 24PFS5231/12)
4.5 Assembly/Panel Removal (for 32"/43"/49"Pxx4131)
4.6 Set Re-assembly
Notes:
• Figures below can deviate slightly from the actual situation,
due to the different set executions.
4.1 Cable Dressing

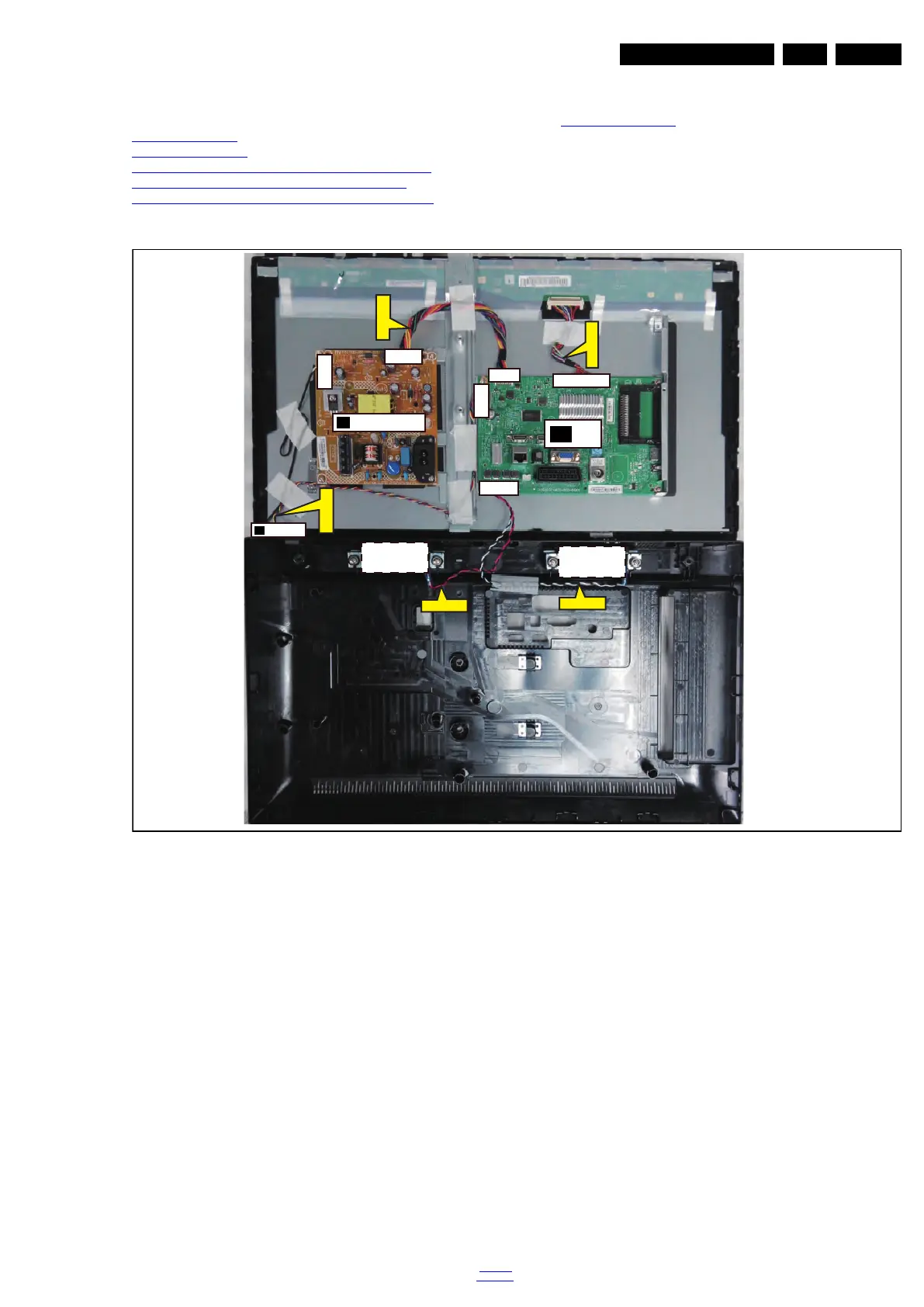

Figure 4-1 Cable dressing (22" 4031 series)
20210_100.eps
CN601
CN401
CN8605
CN9101
CN701
CN408
MAIN POWER SUPPLY
(1054)
A
SSB
(1053)
B
ECN408
ECN601
ECN601
ECN701
ECN401
LOUDSPEAKER
(1184)
LOUDSPEAKER
(1184)
IR/LED BOARD
(1056)
J
To Next Page
