4.6.2 Rear Cover
Refer to Figure 4-28
for details.
Warning: Disconnect the mains power cord before removing
the rear cover.
1. Remove the fixation screws [1,2,3] that secure the rear
cover.
2. Lift the rear cover from the TV. Make sure that wires and
flat foils are not damaged while lifting the rear cover from
the set.

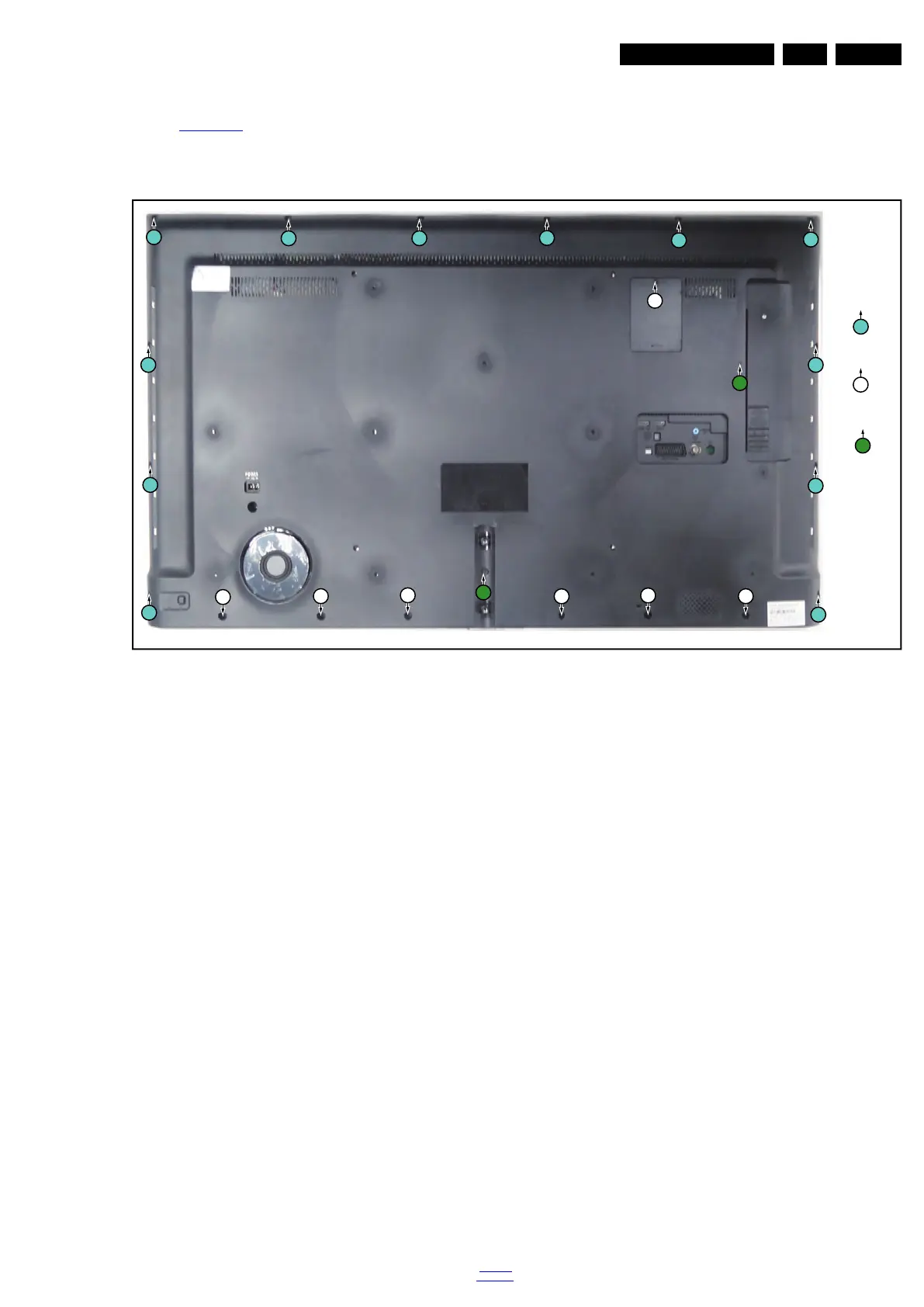

Figure 4-28 Rear cover removal[1]
19792_106.eps
1
1
1
1
1
1
1
1
1
1
1
1
1
M3 × 8
Q3 × 8
2
M3 × 6
3
3
3
2
2
2
2
2
2
2
