Camera, Camcorder, Game

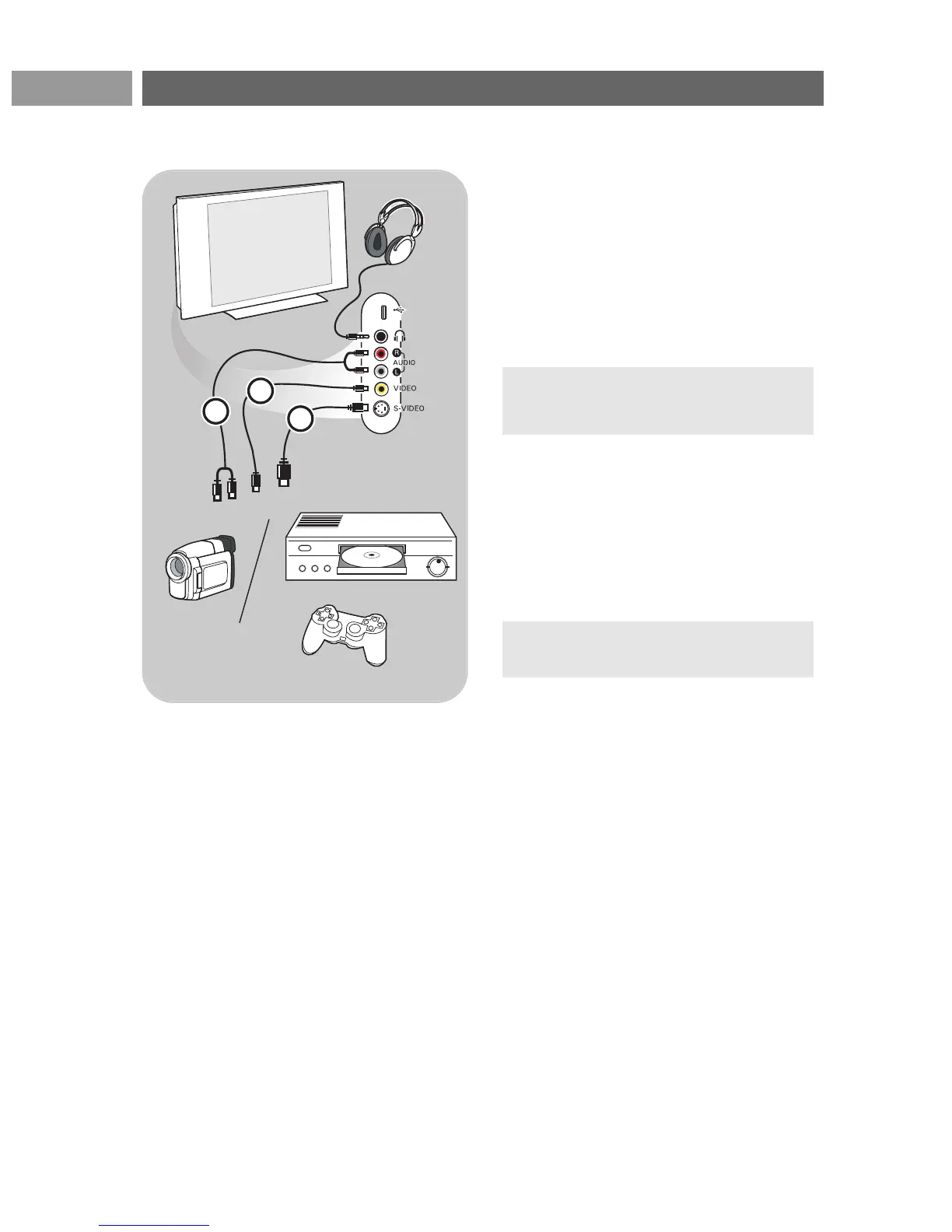

1. Connect your camera, camcorder or game as
shown.
2. Connect to
VIDEO 2 and AUDIO L 3 for
mono equipment. For stereo equipment also
connect
AUDIO R 3.
S-VHS quality with an S-VHS camcorder is
obtained by connecting the S-VHS cables with
the
S-VIDEO input 1 and AUDIO inputs
3.
Headphone
1. Insert the plug into the headphone socket L
as shown.
2. The headphone impedance must be between 8
and 4000 Ohm.The headphone socket has a
3.5 mm jack.
In the Sound menu select Headphone
volume to adjust the headphone volume.
USB
See Multimedia browser, p. 32.
To make video and audio connections - Side panel overview
EN
38
Warning: do not connect cable 1 and 2
at the same time.This may cause picture
distortion !
Tip:Press ¬ on the remote control to
switch off the internal loudspeakers of the TV.
