Connect a VCR or DVD recorder
EN
40

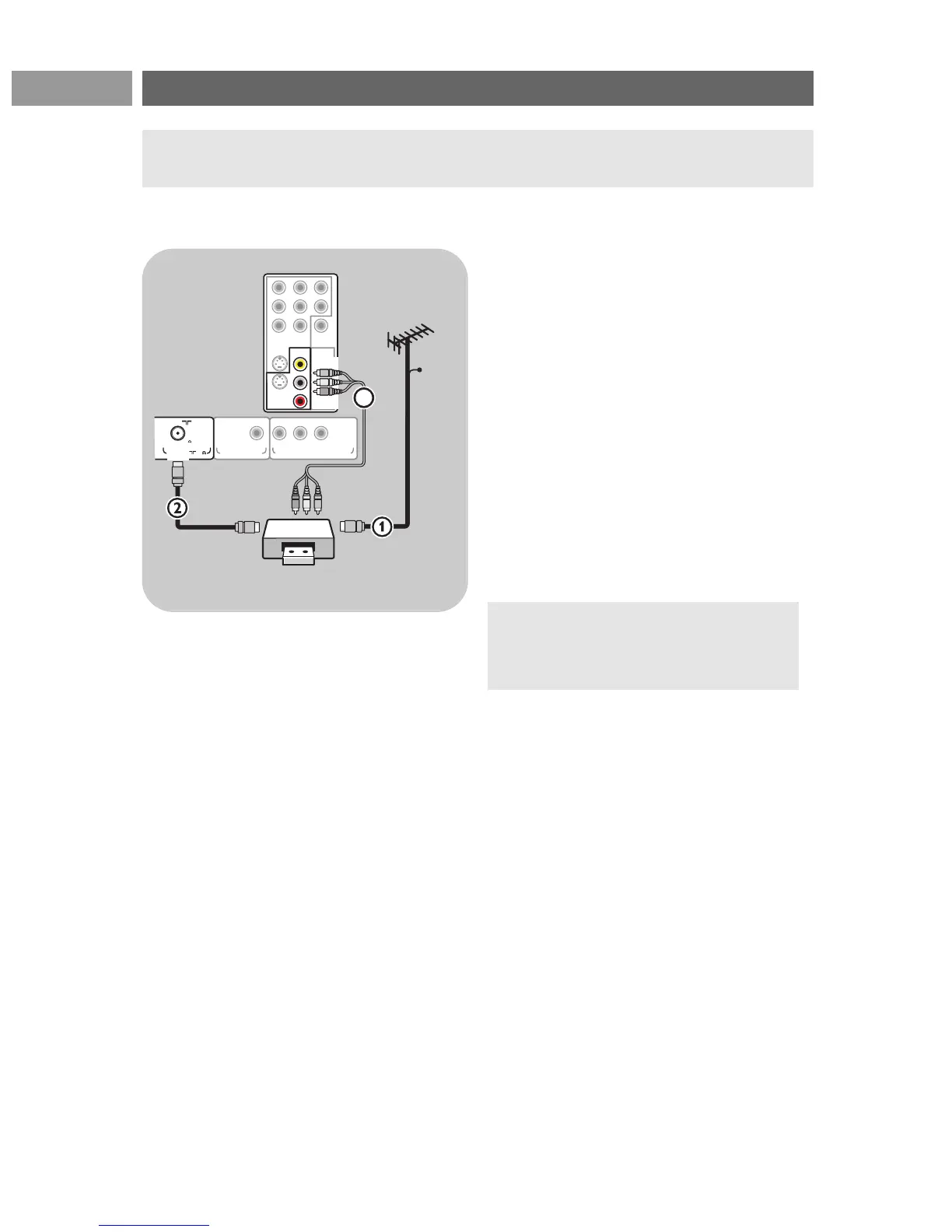

1. Connect the RF Antenna cable 1 to the
RF
IN
socket of your recorder.
2. Connect another RF cable 2 from the output
OUT of your recorder to the TV’s input
CABLE/ANTENNA 75 ø x jack.
3. Better playback quality can be obtained if you
also connect the Video,Audio Left and Right
(only for stereo devices) AV cables 3 to the
VIDEO, AUDIO L and R input jacks of AV2.
If your recorder has an S-VHS video
jack:
For improved picture quality, connect an
S-video cable with the s-video input instead of
connecting the recorder to the
VIDEO jack of
AV2.
S-Video does not provide audio, so audio
cables must still be connected to provide
sound.
Warning: do not place your recorder too close to the screen as some recorders may be susceptible
for signals from the display. Keep a minimum distance of 0,5 m from the screen.
Note:
- When using the S-VIDEO connector do
not connect any device to the AV2 VIDEO
or AV1 VIDEO input.
To Next Page
