Philips 55PFL8007T Service Manual

EN 182QFU1.1E LA 10.
Circuit Diagrams and PWB Layouts
2012-Sep-14
back to
div. table
10.5 E 272217190614 Keyboard

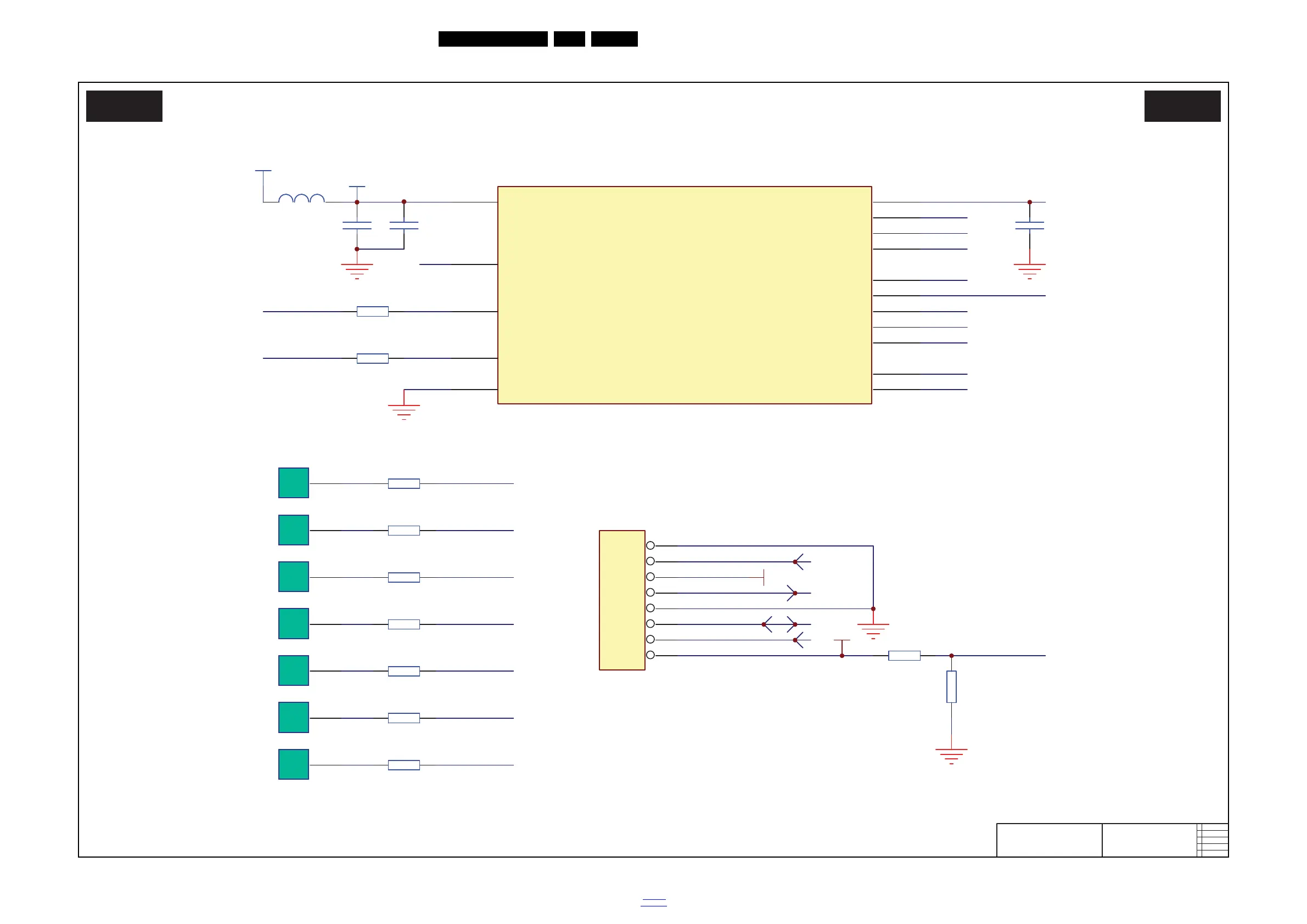

10-5-1 Touch & Proximity Local Keyboard Control Module
19212_009_120913.eps
120913
Touch & Proximity Local Keyboard Control Module
E E
2012-02-23
0.4
2777 171 90614
Touch & Proximity Local
Keyboard Control Module
L1
100μH
+3.3V
C1
10μF/6.3V
XOut,P2[5]
1
XIn,P2[3]
2
I2C SCL,SPI SS,P1[7]
3
I2C SDA,SPI MISO,P1[5]
4
SPI CLK,P1[3]
5
ISSP CLK,SPI MOSI,P1[1]
6
VSS
7
ISSP DATA,I2C SDA,SPI CLK,P1[0]
8
P1[2]
9
P1[4],EXTCLK
10
XRES
11
P0[4]
12
VDD
13
P0[7]
14
P0[3]
15
P0[1]
16
U1
CY8C20224A
C2
0.1μF
VDD
XRES
ISSPCLK
ISSPDATA
C3
4700pF
K1
K2
K3
K4
K5
K6
K7
R3
560R
R4
560R
R5
560R
R6
560R
R7
560R
R8
560R
R9
560R
Sensor1
Sensor2
Sensor3
Sensor4
Sensor5
Sensor6
Prox
Sensor1
Sensor2
Sensor3
Sensor4
Sensor5
Sensor6
Prox
BUZZER
Keyboard-IRQ-SRF
R2
10R
R1
10R
1
2
3
4
5
6
7
8
J1
FH52-8S-0.5SH
+5V
+3.3V
SCL-SRF
SDA-SRF
Keyboard-IRQ-SRF
RESETn
5VDETCT
R10
180K
R11
330K
5VDETCT
SCL-SRF
SDA-SRF
