Philips 55PFL8007T Service Manual

Styling Sheets
EN 225QFU1.1E LA 11.
2012-Sep-14
back to
div. table

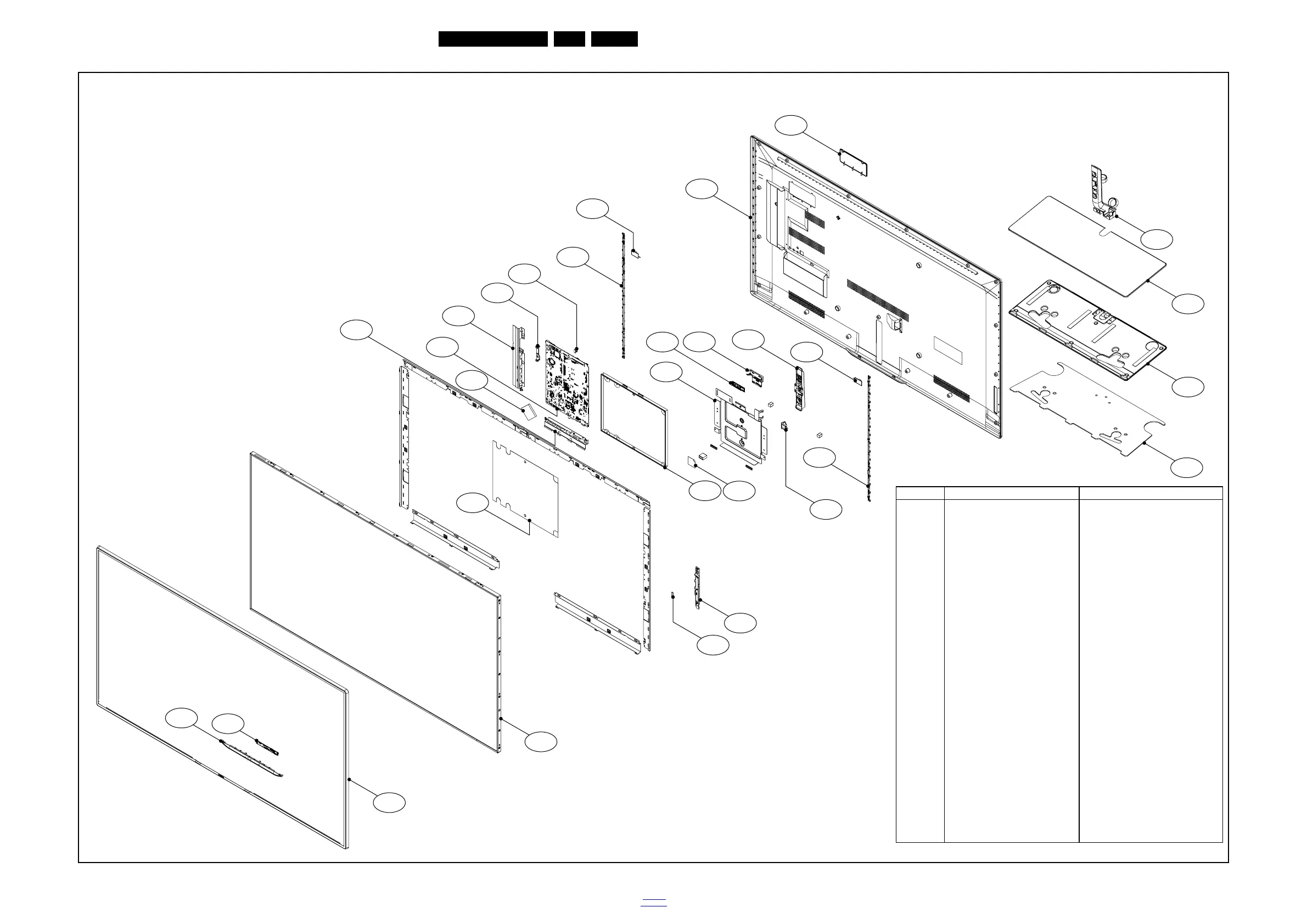

11.8 7000 series 55"
19210_095_120514.eps
120514
7000 series 55"
Pos No. Description Remarks
0007 Deco front
0013 Back cover
0015 Swivel back piece
0016 Ambilight door
0032 Sensor board assembly
0034 Wifi bracket
0109 Mains inlet
0112 Stand interface
0159 PCMCIA cardguide
0160 Side I/O bracket
0162 Bottom I/O bracket
0202 Dolby I/O label Not displayed
0270 3D gogles Not displayed
0416 Stand coverplate screw Not displayed
0450 Ther
mal foam
0453 V0 sheet PSU
0454 Thermal foam
0456 Spring grounding
0460 V0 sheet mains inlet
1004 LCD display
1010 Sensor board
1012 Keyboard control panel
1040 Wifi antenne
1041 Wifi antenne
1043 Wifi module USB
1050 PSU
1085 Remote control Not displayed
1090 Cinch connection Not displayed
1092 3 Cinch extention cable Not displayed
1111 SSB
1127 Speaker
1129 Stand coverplate
1130 Stand nec
k
1131 Base plate
1131 Smallware box Not displayed
1163 Ambilight left
1164 Ambilight right
FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9
0007
1004
1127
1129
1130
1131
1050
1012
0455
0109
0032
1010
0034
1111
0162
1043
0460
0453
0450
0160
1040
0013
0016
1163
1164
0015
0112
1041
0159
0456
