Circuit Descriptions
EN 44 QFU1.1E LA7.
2012-Sep-14
back to
div. table

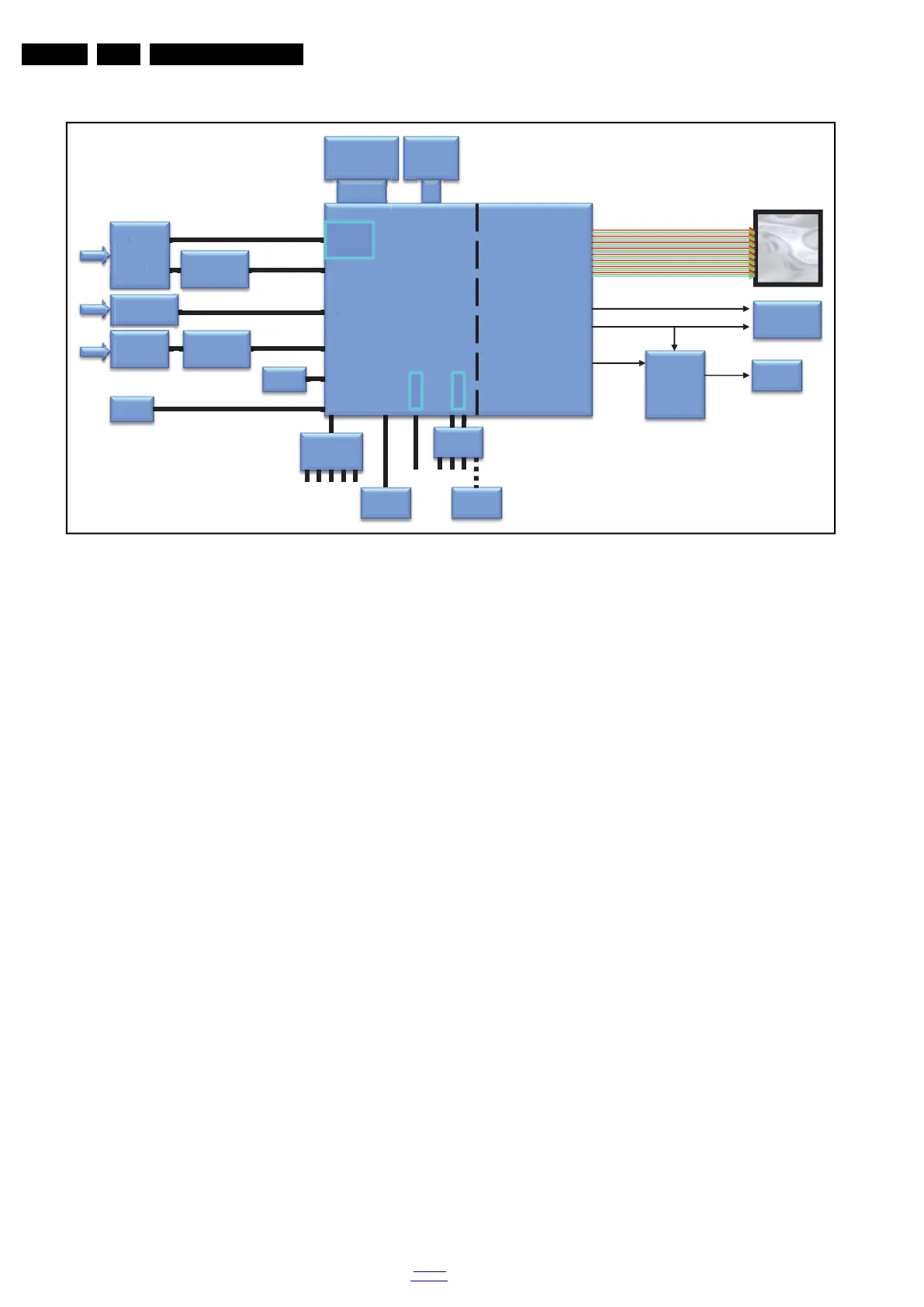

Figure 7-2 Architecture of FUSION platform 2012 (9xxx range)
USB
HUB
64/48
DDR 1GB
4 × 2Gb
FLASH
1GB
DVBC/T2
DVB-S2
Tuner
DVB-S2
Hybrid
Tuner
HDMI
9385
CI+
ETH
PHY
USB
DVB-T/C
ISDB-T
Analogue
NVM
Skype
Analogue
Inputs
USB
NR
DEI
PQ Enhancement
FRC
3D: Active
2D-3D conversion
Cell
FHD@240
CIN@240
8 × V-by-1 RGB
BL
3D-IR
3D goggle
drive
FPGA
Spartan 6
LX4
BL
3D_LR
3D-LED
BL-SPI
VS
BL - HDR
19210_063_120504.eps
