Philips AZ1050 - Mechanical Partslist - Cabinet; Exploded View Diagram - Tape Deck; Mechanical Partslist - Tape Deck

8-2 8-2
PCS 107 214

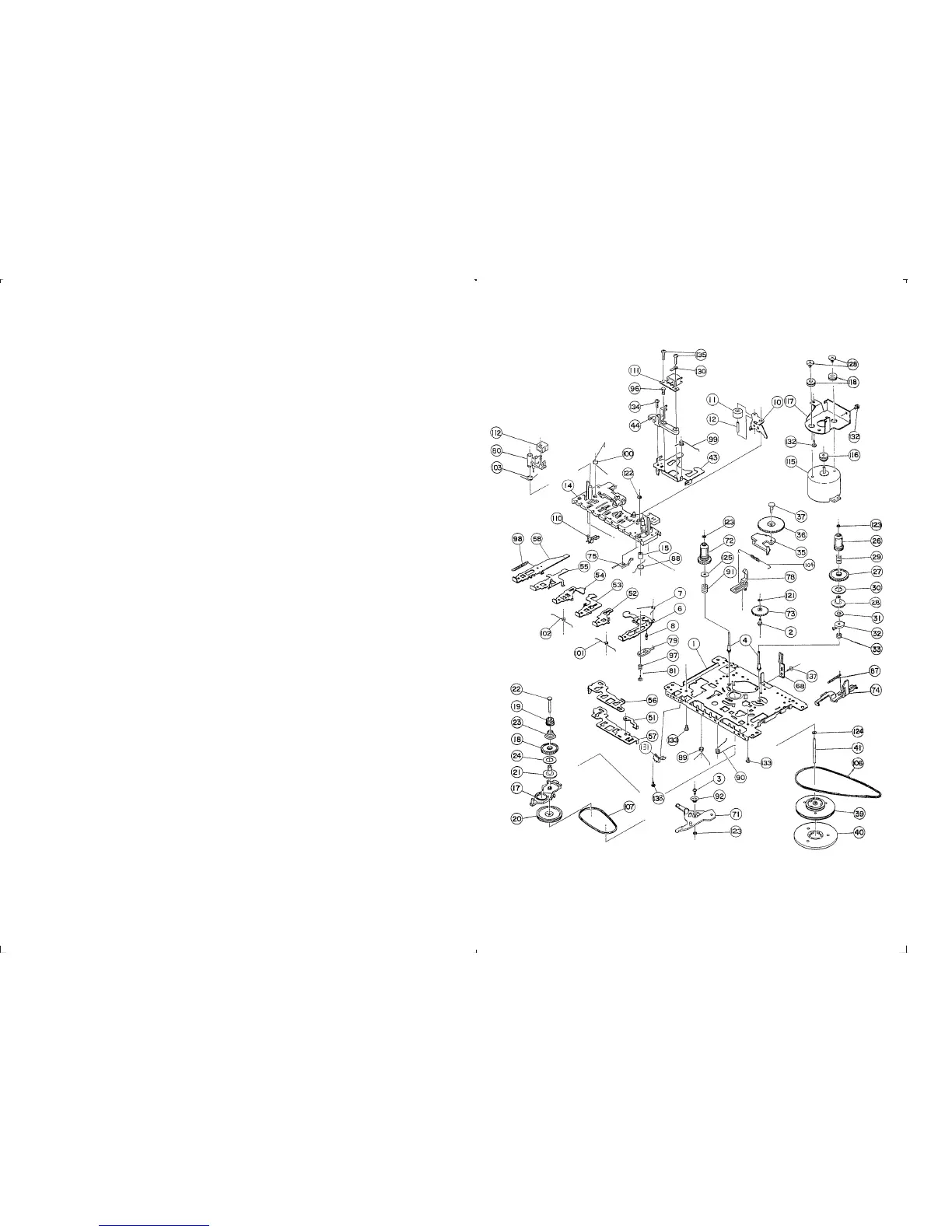

EXPLODED VIEW DIAGRAM - TAPE DECK
MECHANICAL PARTSLIST - CABINET
401 3140 117 60730 Cass Door Assy (For AZ1050) 432 3140 114 36800 Wheel Tuning
401 3140 117 60800 Cass Door Assy (For AZ1055) 433 3140 114 29800 Pointer
402 4822 492 42709 Cass Door Spring 434 4822 256 90463 Ferrite Bar Holder
403 4822 691 10612 Tape Deck Mechanism 436 4822 321 10249 Mains Cord (For -/00/01/11/14)
404 4822 492 11061 Spring Recording 436 2422 070 98148 Mains Cord (For -/10)
406 3140 114 36770 Keyset Cass 436 2422 070 98152 Mains Cord (For -/17)
407 3140 117 60770 Front Panel Assy (For AZ1050) 437 3139 228 87280 Remote Control (For AZ1055)
407 3140 117 60810 Front Panel Assy (For AZ1055) 3140 115 28230 Instr Manual (For AZ1050/00)
408 3140 117 60920 Front Cab Assy (For AZ1050) 3140 115 28280 Instr Manual (For AZ1050/01/10/11)
408 3140 117 60700 Front Cab Assy (For AZ1055) 3140 115 28240 Instr Manual (For AZ1050/14)
409 3140 114 30280 Bracket LCD 3140 115 28170 Instr Manual (For AZ1050/17)
411 4822 529 10387 Damper Rubber (40 DEG) 3140 115 28250 Instr Manual (For AZ1055/00)
412 4822 529 10386 Damper Rubber (30 DEG) 3140 115 28291 Instr Manual (For AZ1055/11)
413 3103 309 05290 CD DA11N Drive Assy 3140 115 28260 Instr Manual (For AZ1055/14)
414 4822 442 01096 Cover CD 3140 115 28180 Instr Manual (For AZ1055/17)
416 3140 117 60860 Top Cabinet Assy (Not for -/17)
416 3140 117 60720 Top Cabinet Assy (For -/17)
417 3140 114 36780 Knob Volume
418 4822 402 10856 Bracket Handle
419 3140 114 36790 Handle
421 3140 117 59800 Clamper Ring Assy
422 3140 111 00750 Spring CD
423 3140 114 37140 Door CD (For AZ1050)
423 3140 114 37220 Door CD (For AZ1055)
424 3140 117 60750 Rear Cabinet Assy
426 4822 303 14038 Telescopic Aerial
427 3140 117 60740 Knob Mode Assy
428 3140 117 60760 Knob DBB Assy
429 4822 492 51961 Spring Compression
Note:Only these parts metioned in the list are
431 3140 111 21360 Contact Plate normal service parts.
MECHANICAL PARTSLIST - TAPE DECK
10 4822 528 70849 Pinch Roller Arm (B)
11 4822 528 70695 Pinch Roller Assy
74 4822 403 70968 Eject Hook (A)
106 4822 358 31325 Main Belt 45.2 x 1.2
107 4822 358 31124 Sub Belt 44.7 x 1.2
110 4822 278 90721 Leaf Switch
111 4822 249 30218 MS18R-AKONI
112 4822 249 40306 E. Head
115 4822 361 21565 Motor EG-530AD-9B
Note Only these parts mentioned in the list are
116 4822 528 81497 Motor Pulley normal service parts.
