PCS 104 411
3-1

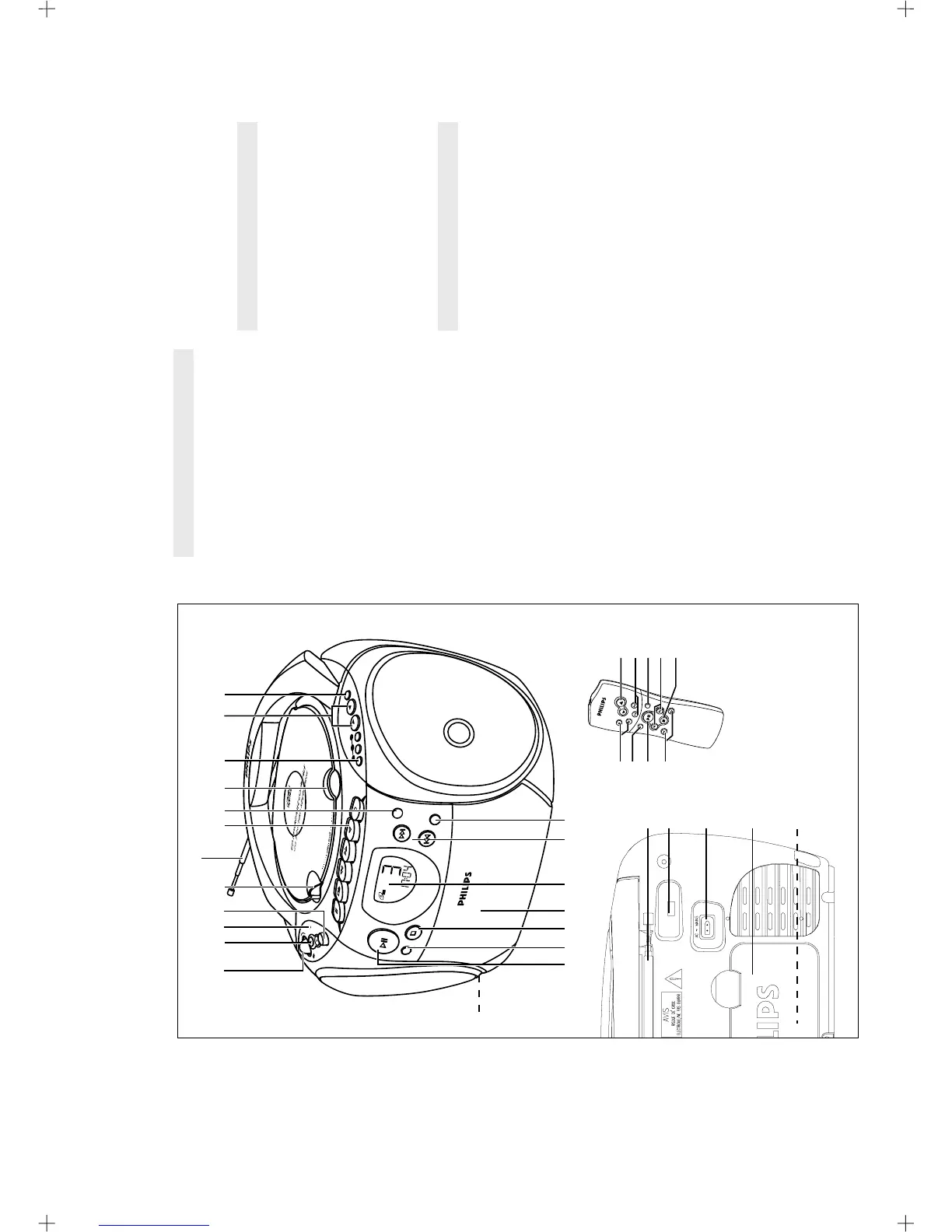

CONNECTIONS AND CONTROLS
PROGRAM
REPEAT
ALL
CD
SEARCH
PROG RAM
STOP
CD MODE
PLAY•PAUSE
PAUSE
STOP•OPEN
SEARCH
PLAY
RECORD
1
2
3
PRESET
BAND
DYNAMI C
BASS
BOOST
DBB
VOL
TUNER
BATT
LOW
CD
TAPE
OFF
DIGITAL TUNER
AZ1145
CD RADIO CASSETTE RECORDER
DYNAMIC BASS BOOST
2 67 55
(
98 0
1 4
&^@ # $ %!
3
(
™
¡
)
*
SHUFFLE
REPEAT
TUNING
PRESET
SEARCH
SEARCH
STOP
VOLUME
D
igital
R
emote
C
ontrol
6
9
4
2
1
8
5
7
3
REMO TE
SENS OR
REMO TE
SENS OR
£
TOP AND FRONT PANELS
1 POWER slider - selects the sound source
for CD/ TUNER/ TAPE
OFF and also switches
the set off
2 VOL +, – - adjusts the volume level
3 BATT LOW - indicates when battery power
is running low
4 DBB (Dynamic Bass Boost) - enhances
the bass
5 OPEN•CLOSE - opens/ closes the CD door
6 CASSETTE RECORDER keys
RECORD 0 - starts recording
PLAY 1 - starts playback
SEARCH 5
/ 6
- fast winds/rewinds the tape
STOP•OPEN 9/ - stops the tape;
- opens the cassette
compartment
PAUSE ; - interrupts recording or playback
7 Remote sensor - infrared sensor for the
remote control
8 1-3 - programmes and selects your favourite
three radio stations
9 PRESET 3, 4 - (down, up) selects preset
tuner stations
0 BAND - selects waveband
! PLAY PAUSE 2; - starts /pauses
CD playback
@ CD MODE - selects a different play mode
e.g. SHUFFLE/ REPEAT CD
tracks or programme in random
/repeated order
# STOP 9 - stops CD playback or erase a CD
programme;
activates/ deactivates display
demo mode.
$ Cassette door
% Display - shows the status of the set
^ SEARCH ∞
/ §
Tuner: (down, up) tunes radio stations.
CD: -
searches back and forward within a
track;
- skips to the beginning of a current
track/ previous/ later track
& PROGRAM -
Tuner - programmes preset radio stations;
CD - programmes
tracks
and reviews the
programme
BACK PANEL
* p - 3.5 mm stereo headphone socket
( Telescopic aerial - improves FM reception
) BEAT CUT switch - eliminates possible
whistle tones during
MW (AM) recordings
¡ AC Mains - inlet for mains lead
™ Battery compartment - for six batteries,
type R-14, UM-2 or C-cells
£ Voltage selector (located inside the battery
compartment. Some versions only) - select
the correct local voltage 110/220 V before
plugging in the set
REMOTE CONTROL
1
VOLUME 3,4 – adjusts volume level
2
PRESET 3,4 (up, down) – selects a preset
radio station
3
TUNING ∞, § (down, up) – tunes to radio
stations
4
SHUFFLE – to play CD tracks in random order
5
REPEAT – repeats a track/ CD programme/
entire CD
6
2; – starts and pauses CD playback/
interrupts CD playback
7
¡, ™ – skips to the beginning of a current
track/ previous/ later track
8
STOP 9 – stops CD playback or erases a
CD programme
9
SEARCH 5, 6 – searches backwards or
forwards within a track/CD
CAUTION
Use of controls or adjustments or performance of procedures other than herein
may result in hazardous radiation exposure or other unsafe operation.
