Philips BDL8470QT - Input;Output Terminals

BDL8470QT
4

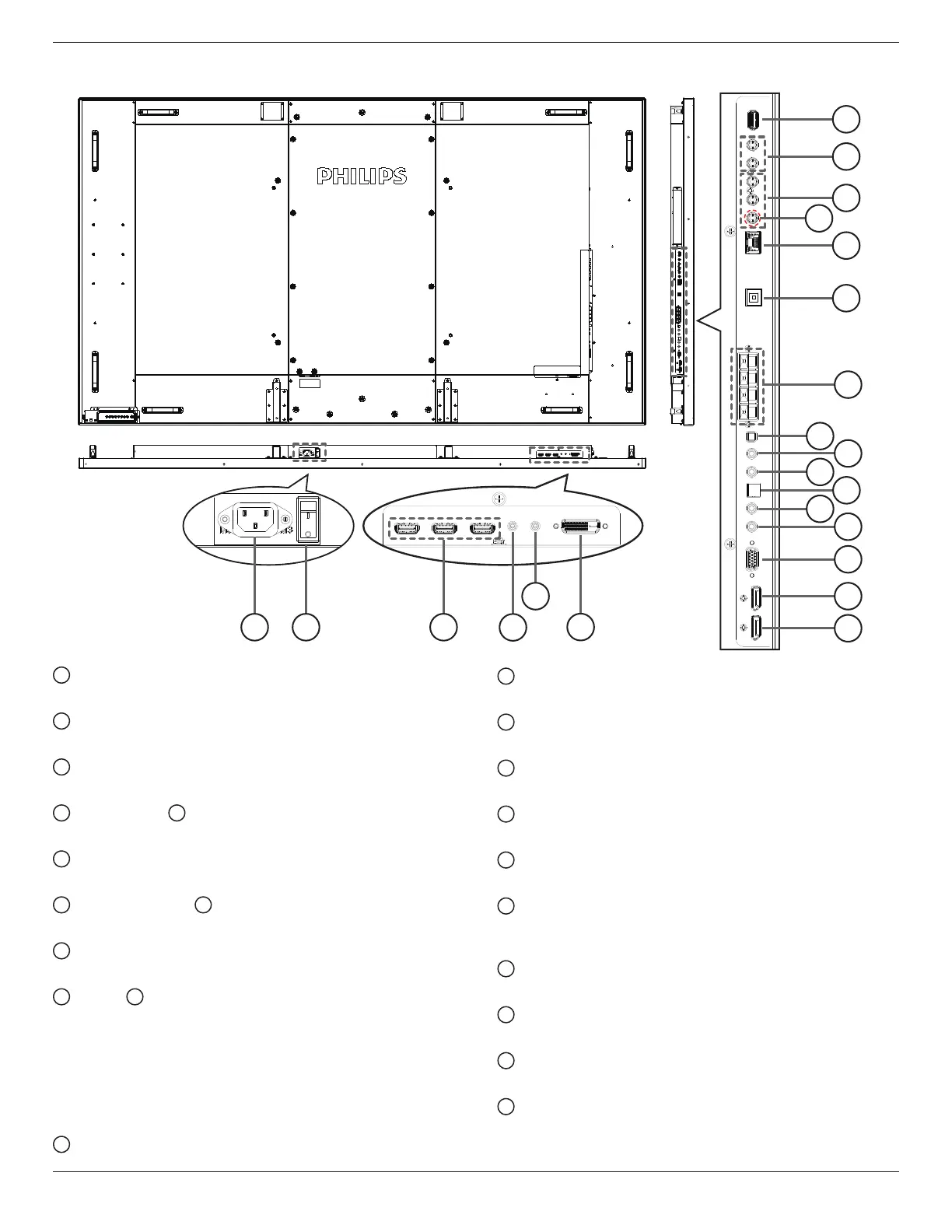

2.2. Input/Output Terminals
1 32
5
6
18
20
22
7
4
8
9
10
11
12
13
14
15
16
19
21
17
1
AC IN
ACpowerinputfromthewalloutlet.
2
MAIN POWER SWITCH
Switchthemainpoweron/off.
3
HDMI1 IN / HDMI2 IN / HDMI3 IN
HDMIvideo/audioinput.
4
RS232C IN /
5
RS232C OUT
RS232Cnetworkinput/outputfortheloop-throughfunction.
6
DVI IN
DVI-Dvideoinput.
7
DisplayPort IN /
8
DisplayPort OUT
DisplayPortvideoinput/output.
9
VGA IN (D-Sub)
VGAvideoinput.
10
IR IN /
11
IR OUT
IRsignalinput/outputfortheloop-throughfunction.
NOTES:
• Thisdisplay’sremote controlsensorwillstopworkingifthejack
[IR IN]isconnected.
• ToremotelycontrolyourA/Vdeviceviathisdisplay,refertopage
12forIR Pass Throughconnection.
12
SPDIF OUT
Digitalaudiooutput
13
AUDIO IN
AudioinputforVGAsource(3.5mmstereophone).
14
AUDIO OUT
AudiooutputtoexternalAVdevice.
15
SPEAKER SWITCH
Internalspeakeron/offswitch.
16
SPEAKERS OUT
Audiooutputtoexternalspeakers.
17
Touch
.
18
RJ-45
LANcontrolfunctionfortheuseofremotecontrolsignalfrom
controlcenter.
19
Y/CVBS
Videosourceinput.
20
COMPONENT IN
ComponentYPbPrvideosourceinput.
21
AUDIO IN
Audioinpu+tfromexternalAVdevice(RCA).
22
USB PORT
ConnectyourUSBstoragedevice.
